4. To stop the compressor, lift the On/Off lever (3) to the

vertical position.

Operation

1. The pressure in the tank is controlled by the action of

the pressure switch located under the pressure switch

cover (2). When the set maximum pressure is reached

the pressure switch activates and the motor is switched

off. The pressure then decreases as the air is used by the

connected tool until the set minimum pressure is reached

after which the pressure switch causes the motor to

switch on again. The operator of the compressor should

be well aware that during use of the compressor the

motor will start and stop under the influence of the rising

or falling pressure in the tank. The motor will start without

any warning.

2. The maximum and minimum pressures are factory set

and the operator should not try to change them.

3. All accessories are connected to the regulated air

outlet (6).

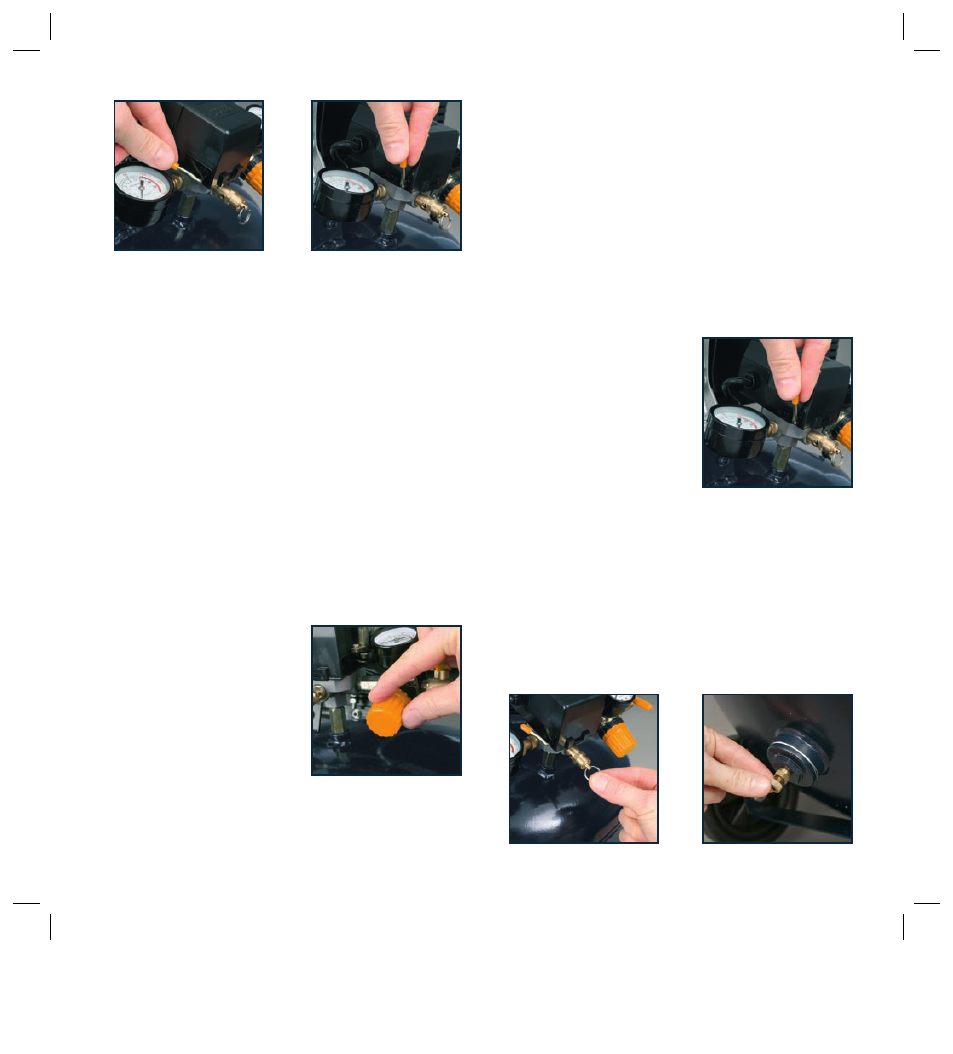

4. The pressure of the regulated

outlet, as shown on the

regulated outlet pressure

gauge (7), can be changed

by turning the regulating

knob (5).

Note.

To obtain the correct

output reading on the regulated

output gauge, the air must be

flowing through the outlet.
The regulating valve should be adjusted and the gauge read

with the outlet valve open and the air being discharged from

the regulated outlet through the accessory being used.

To increase the air pressure, rotate the regulating valve

clockwise. To decrease the pressure, rotate the regulating

valve anti-clockwise.

Note.

If you do not allow the air to discharge while you

are setting the regulator, the pressure as indicated on the

regulated outlet gauge will be incorrect. This gauge ONLY

indicates the correct pressure while air is being discharged

from the outlet.
5. On completion of the task, i.e. when you have finished

using the compressor, or when you are leaving the

compressor unattended, turn off the compressor in the

following way:

Set the on/off lever (3) to the

off position.

Wait for the pressurised air to

bleed from the release valve

under the pressure switch

cover (2).

Note.

You may hear a short air

discharge for approximately 1/2

a second. This discharge only

occurs if the compressor is actually

running at the time, and not in idle.

Switch off the electrical power supply and remove the

electrical plug.

Pull the ring on the safety valve (8) to ensure all the

pressurised air is released from the tank, or open the

drain cock (10) to release the pressure from the tank.

To open the drain cock (10) rotate the valve ant-clockwise

and to close the valve rotate it clockwise.
