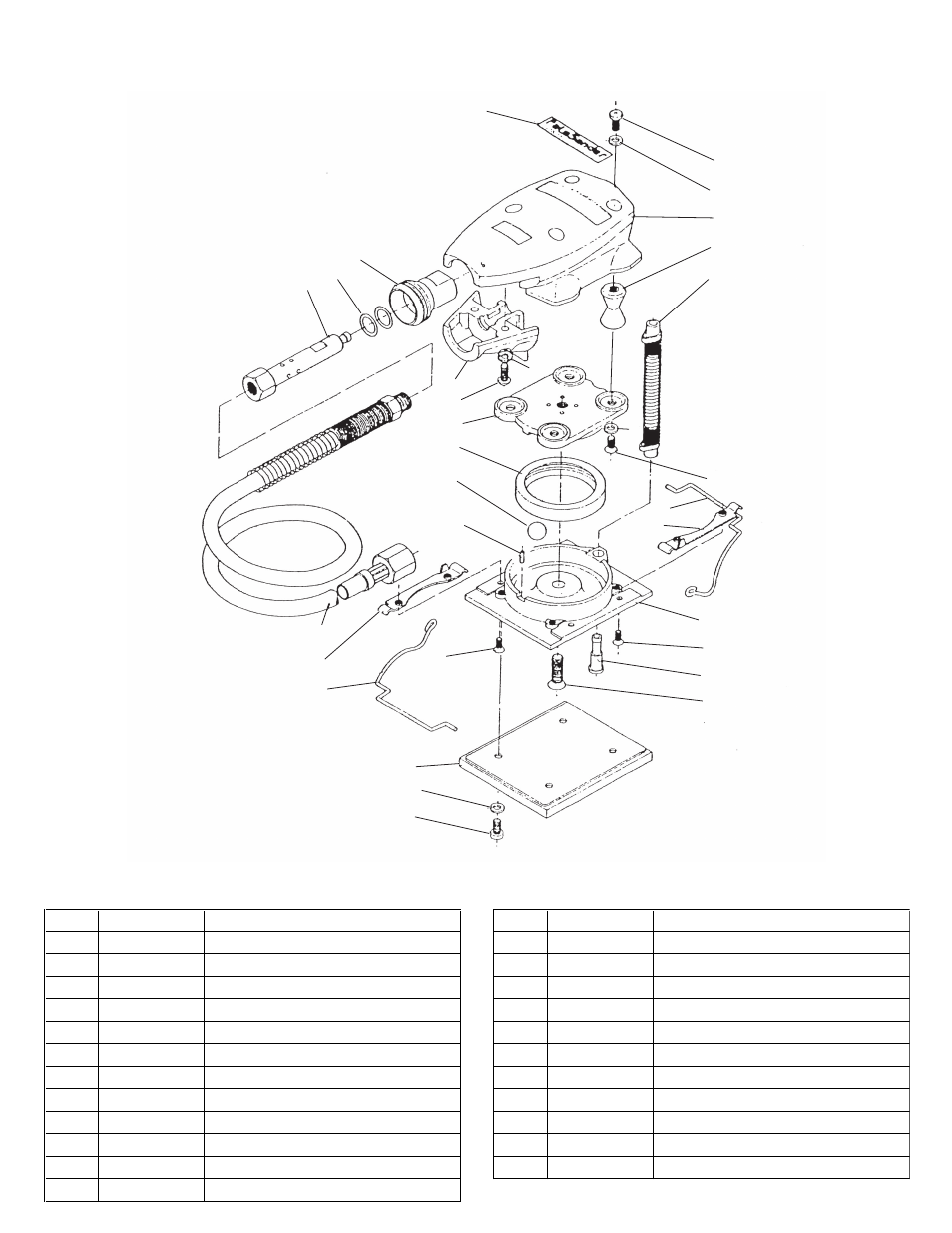

G5344 Parts Breakdown and List

�

�

�

�

�

�

�

�

�

�

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

1

PS07M

PHLP HD SCR M4-.7 X 8

14

P5344014

CYLINDER

2

PLW02M

LOCK WASHER 4MM

15

P5344015

STEEL BALL

3

P5344003

HOUSING COVER

16

P5344016

CLAMP SPRING

4

P5344004

RUBBER SUPPORT ASSEMBLY

17

P5344017

FLAT HEAD SCREW

5

P5344005

TUBE ASSEMBLY

18

P5344018

CYLINDER SUB ASSEMBLY

6

P5344006

MODEL LABEL

19

PFH49M

FLAT HD SCR M3-.5 X 6

7

P5344007

RUBBER PAD ASSEMBLY

20

P5344020

VALVE BUSHING

8

P5344008

THROTTLE VALVE

21

P5344021

FLAT HEAD SCREW

9

P5344009

O-RING

22

PLW02M

LOCK WASHER 4MM

10

P5344010

VALVE FITTING

23

P5344023

HOSE SUB ASSEMBLY

11

P5344011

HOUSING CAP

24

P5344024

CLAMP STOMPER

12

PS38M

PHLP HD SCR M4-.7 X 10

25

P5344025

ROLL PIN

13

P5344013

END PLATE
