GN-BR03GM AirCruiser MIMO Router
34
The PPPoE Unnumber Tab

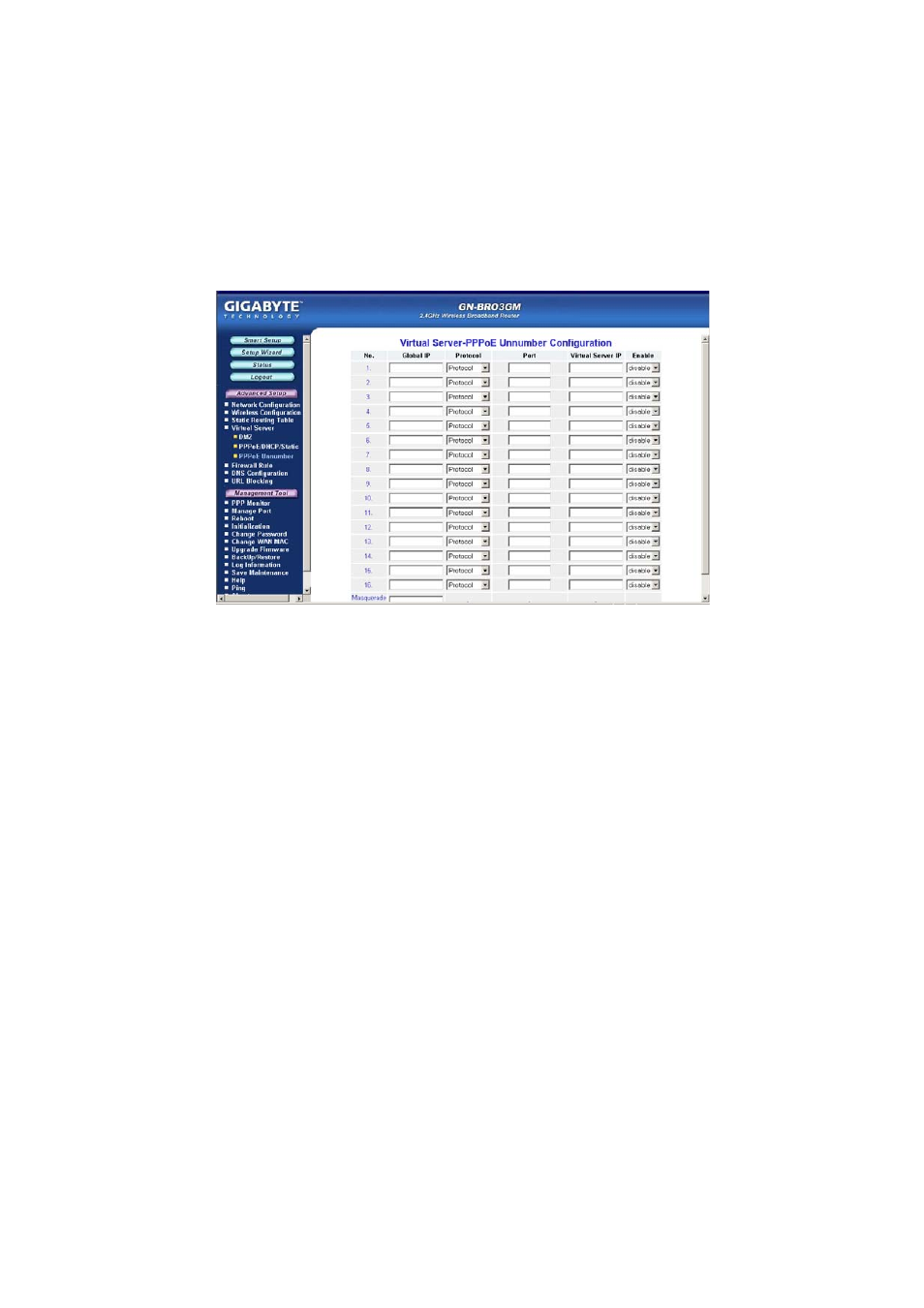

Figure 31: VS-PPPoE Unnumber
Advanced feature of the BR03GM is that it supports services that offer multiple
global IP addresses, with each IP address requires its own setting. This
feature is normally only found on enterprise class routers. The BR03GM has
an
IP allocation scheme capable of directly assigning global IP to LAN
clients.
You can only take advantage of this feature if your ISP service packages will
provide you with a range of valid “Global IP”. (For example 61.222.10.1 ~
61.222.10.7) These seven addresses can be individually configured.
Global IP
An IP within the range of IP’s assigned to you by your ISP
Protocol
The protocol used for the Unnumbered service
Port
The port number of the service used by the LAN side
Virtual Server IP The computer on the LAN that will be providing the
Unnumbered virtual services
Example: Taking the IP address of 192.168.1.1 of a PC connected to the
BR03GM for example would use the following settings:
Global IP: 61.222.10.2
Protocol: TCP
Port: 21
