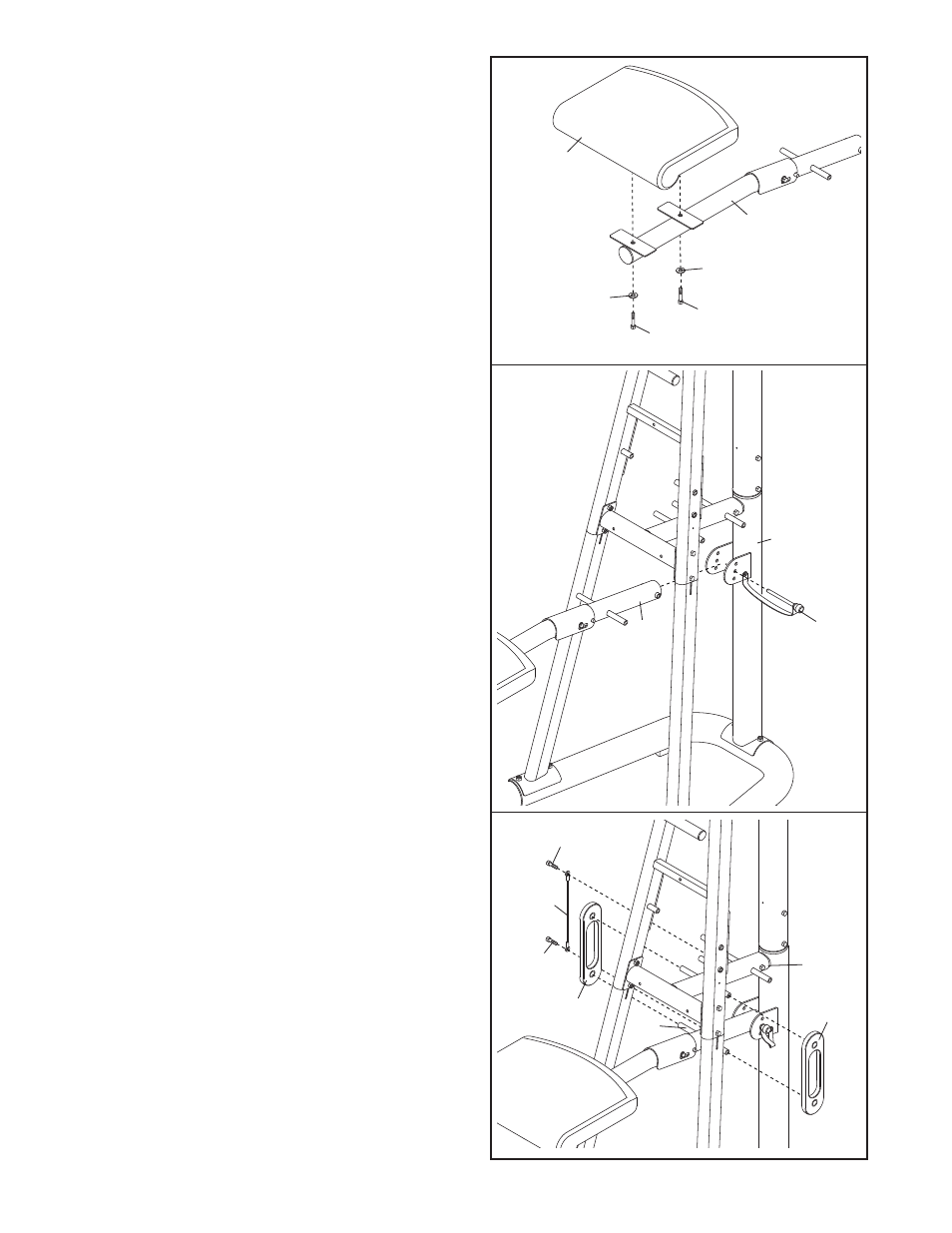

11. Slide two 15-pound Resistance Bands (19) onto
the indicated tubes on the Support Frame (15)
and Pivot Arm (9).
Attach the Cable (33) to the Support Frame (15)
and Pivot Arm (9) with two M8 x 25mm Shoulder
Screws (41).
Make sure that the cable ends
pivot freely on the Bolts.
10. Attach the Pivot Arm (9) to the Upright Base (3)
with the Pin (18). Make sure the Pin is inserted
all the way through the Upright Base and
Pivot Arm.
10
11
18
3
9
33
41
19
19
15
9
41
9. Attach the Knee Pad (21) to Pad Frame (10) with
two M6 x 70mm Screws (35) and two M6
Washers (36).
9
10
21
36
36
35
35
