7

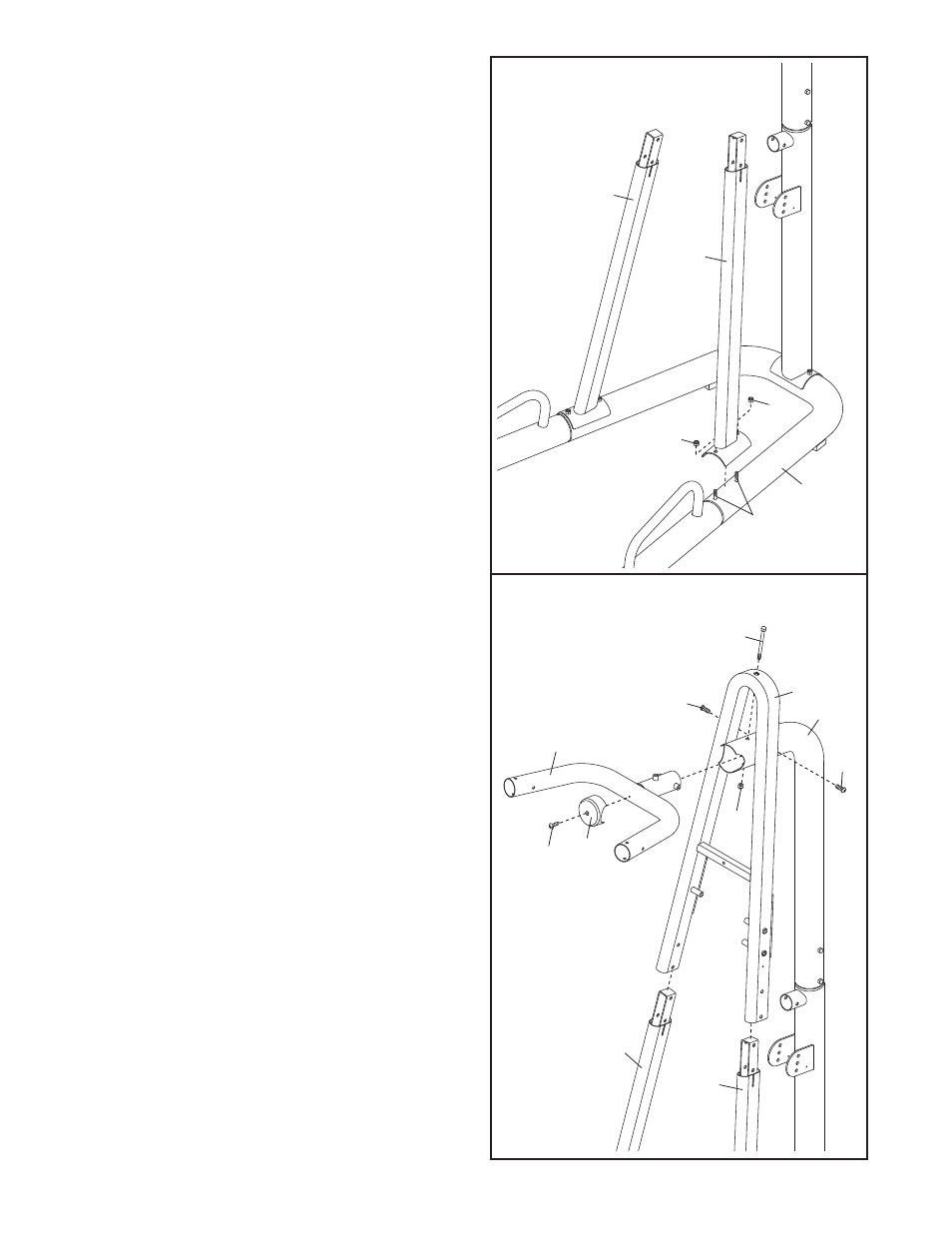

4. Attach the Left Leg (6) to the Base (1) with the
indicated M10 x 90mm Bolts (46) and two M10
Nylon Locknuts (44).
Do not tighten the
Locknuts yet.
Repeat this step with the Right Leg (7).
5. Slide the Backrest Frame (8) onto the Left and
Right Legs (6, 7) and over the Upright (4) as
shown.
Attach the Top Frame (5) inside the Upright (4)
with two M8 x 15mm Screws (28).
Do not tight-
en the Screws yet.
Attach the Backrest Frame (8) and the Top Frame
(5) to the Upright (4) with an M10 x 127mm Bolt
(32) and an M10 Nylon Locknut (44).
Do not
tighten the Locknut yet.
Attach the Top Frame Cap (40) to the Top Frame
(5) with an M4 x 25mm Screw (45).
7
4
5
6
1
46
44
44
32
28
5
40
45
7
6
28
8
4
44
