G0460/G0461 12" Sliding Table Saw
-63-
��
��
��
���
���
���
���
���
���
���
���
���
���
���
���
���
���
��
���
���
���
���
���
���
���
���
�
�
�
���
���
���
���
���
���
��
��
���
�
���
���
���
���
���
���
���
���
���

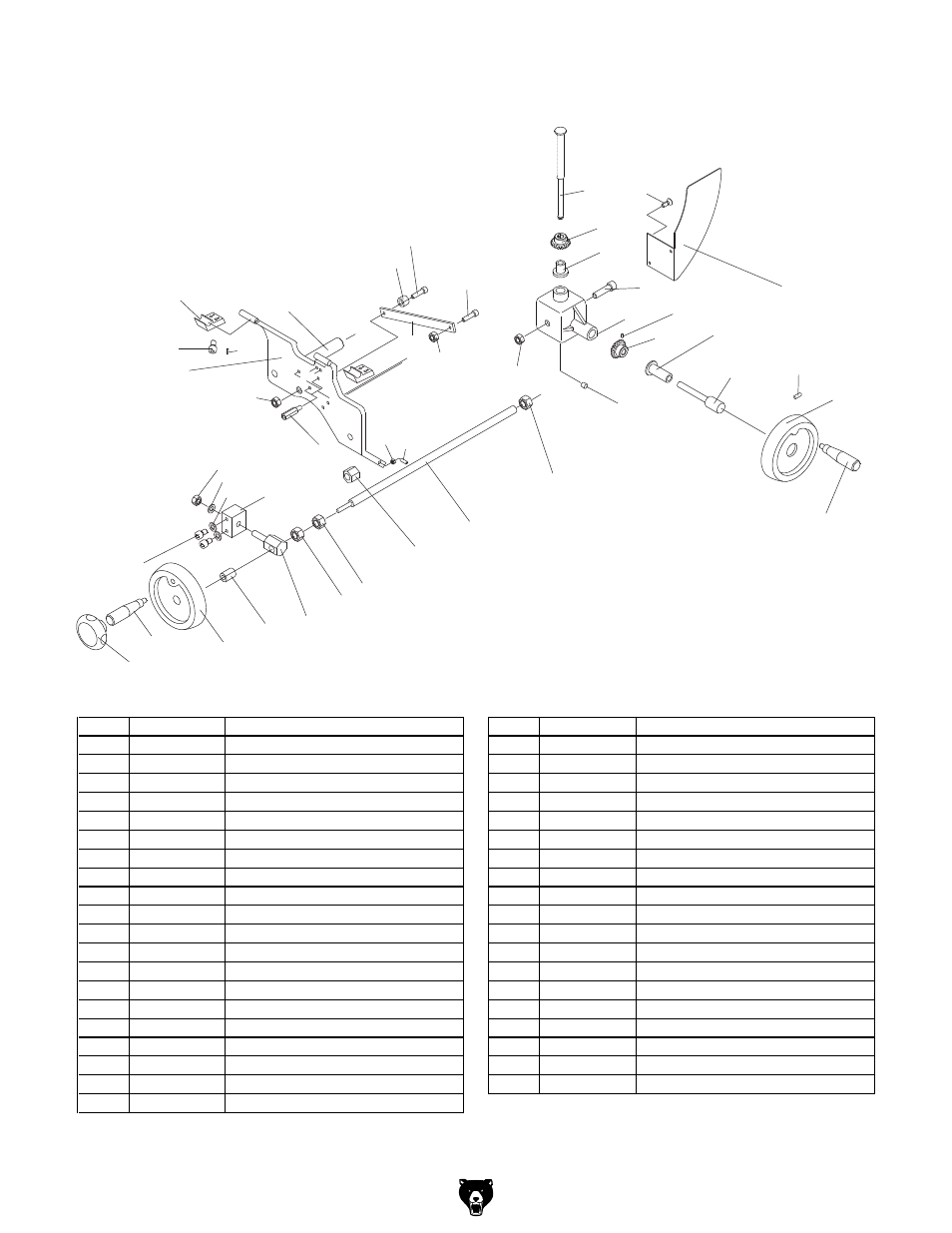

Tilt Assembly
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
3
PW01M
FLAT WASHER 8MM
175
PSB40M
CAP SCREW M8-1.25 X 35
13
P0588013
ADJUSTMENT BOLT COVER
177
PLN07M
LOCK NUT 16-2
22
PN03M
HEX NUT M8-1.25
178
P0588178
WORM
29
PN01M
HEX NUT M6-1
179
P0588179
WORM GEAR
40
PN09M
HEX NUT M12-1.75
180
P0588180
COPPER SLEEVE
41
PW06M
FLAT WASHER 12MM
181
PSB54M
CAP SCREW M16-2 X 40
44
PSB01M
CAP SCREW M6-1 X 16
182
P0588182
GEAR BOX
118
PLN04M
LOCK NUT M8-1.25
183
PSS11
SET SCREW 1/4-20 X 1/4
156
PSB40M
CAP SCREW M8-1.25 X 35
184
P0588184
COPPER SLEEVE
160
P0588160
HAND WHEEL
185
PSS59M
SET SCREW M8-1.25 X 14
161
P0588161
HAND WHEEL COLLAR
186
P0588186
HAND WHEEL SHAFT
162
P0588162
SHAFT NUT
187
P0588187
HAND WHEEL
163
P0588163
SHAFT NUT BASE
190
P0588190
FOLDABLE HANDLE HL-80
164
P0588164
TW-NUT
192
P0588192
ARBOR PLATE
165
P0588165
LEAD SCREW NUT
226
P0460226
HANDWHEEL HANDLE
166
P0588166
LEAD SCREW TW-16 8 TEETH/ INCH
264
P0588264
KNOB M10-1.5
169
P0588169
COVER SUPPORT M6-1 X 25
266
P0588266
COVER (UPPER)
170
P0588170
SET SHAFT
275
P0588275
ROTATE PART LOCK
171
P0588171
BODY ARBOR
276
PRP42M
ROLL PIN 3 X 20
173
P0588173
CRANK ARM
277
PSB14M
CAP SCREW M8-1.25 X 20
174
P0588174
PULLEY COLLAR
