G0460/G0461 12" Sliding Table Saw
-17-
Hardware and Tools
•
Hex Bolt M10-1.5 x 45 (Leg/Large Wing) .. 1
• Lock Washer 10mm (Leg/Large Wing) ...... 1
• Flat Washer 10mm (Leg/Large Wing) ........ 1
• Cap Screws M8-1.25 x 25
(Large Wing/Table) ..................................... 2
• Lock Washers 8mm (Large Wing/Table) ... 2
• Flat Washers 8mm (Large Wing/Table) ..... 2
• Cap Screws M8-1.25 x 25
(Small Wing/Table) ..................................... 2
• Lock Washers 8mm (Small Wing/Table) .... 2
• Flat Washers 8mm (Small Wing/Table) ..... 2
• Cap Screws M6-1 x 20 (Scale/Table) ........ 5
• Flat Washers 6mm (Scale/Table) ............... 3
• Hex Nuts M6-1 (Scale/Table) ..................... 3
• T-Hex Wrenches 6, 5, 4mm ..................1 Ea
• Hex Wrenches 6, 5, 4, 3, 2mm .............1 Ea
• Open End Wrenches
10/12, 14/17, 22/24mm .........................1 Ea
• Combo Wrenches 13, 19mm ................1 Ea
• Push Stick .................................................. 1
• Long Knobs M10-1.5 (Crosscut Fence) ..... 2
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
P. Hold-down .................................................. 1
Q. Edge Shoe .................................................. 1
M. Blade Guard Dust Hood ............................. 1
N. Riving Knife ................................................ 1
O. Adjustable Handle M8-1.25 x 28 ................ 1

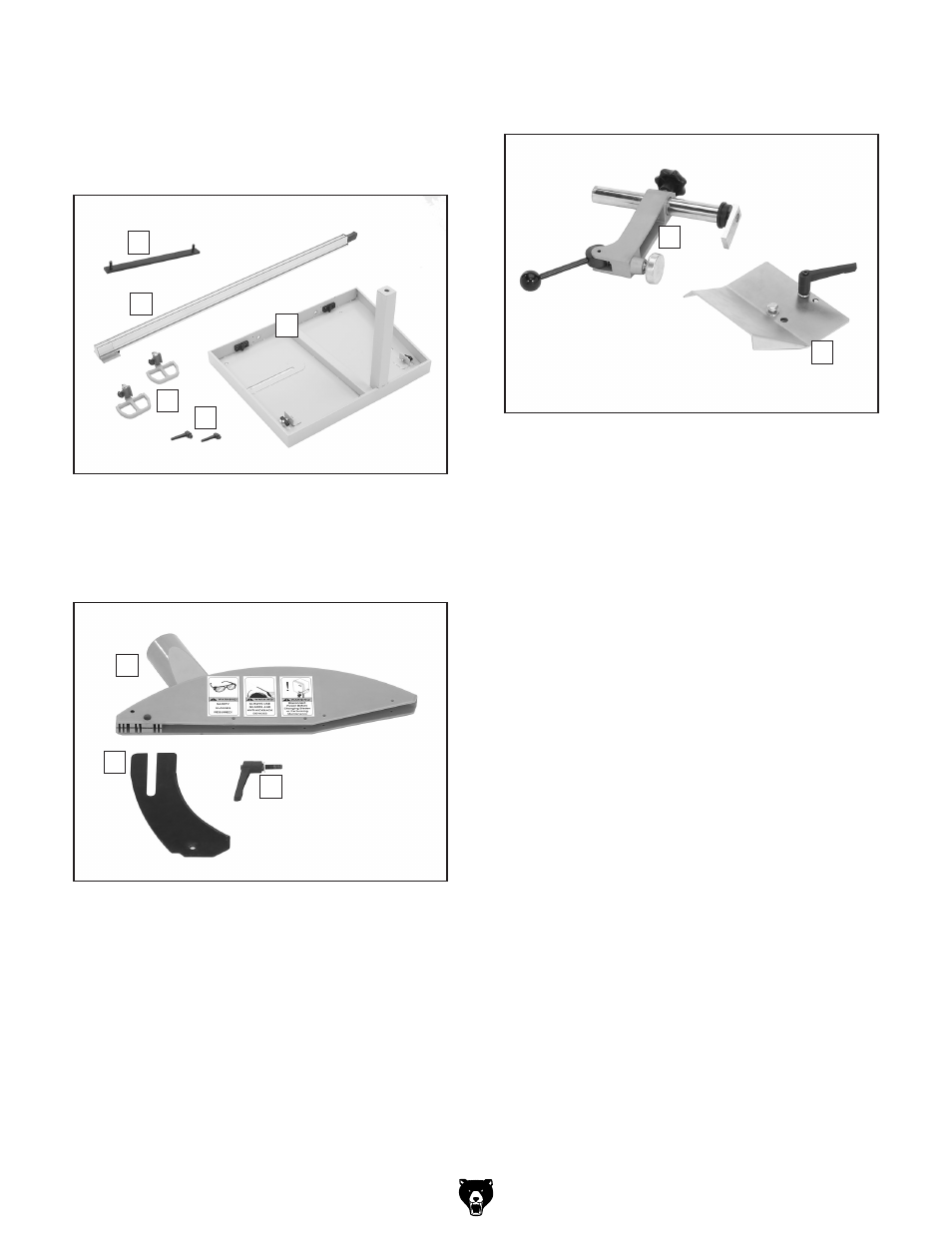

Figure 15. Included accessories.
Q
P
H. Lock Plate ................................................... 1
I. Crosscut Aluminium Fence ........................ 1
J. Crosscut Table ........................................... 1
K. Flip Stops w/Knobs, T-Nuts & Washers ..... 2
L. Adjustable Handles .................................... 2
Figure 14. Blade guard components.
N
M
O
Figure 13. Crosscut table components.
K
I
H
J
L
