Gravely 927062 - RM1232 - Manual (Page 8)

8
R
EAR
W
HEEL AND
H
YDRO
D
RIVE
Model 927062

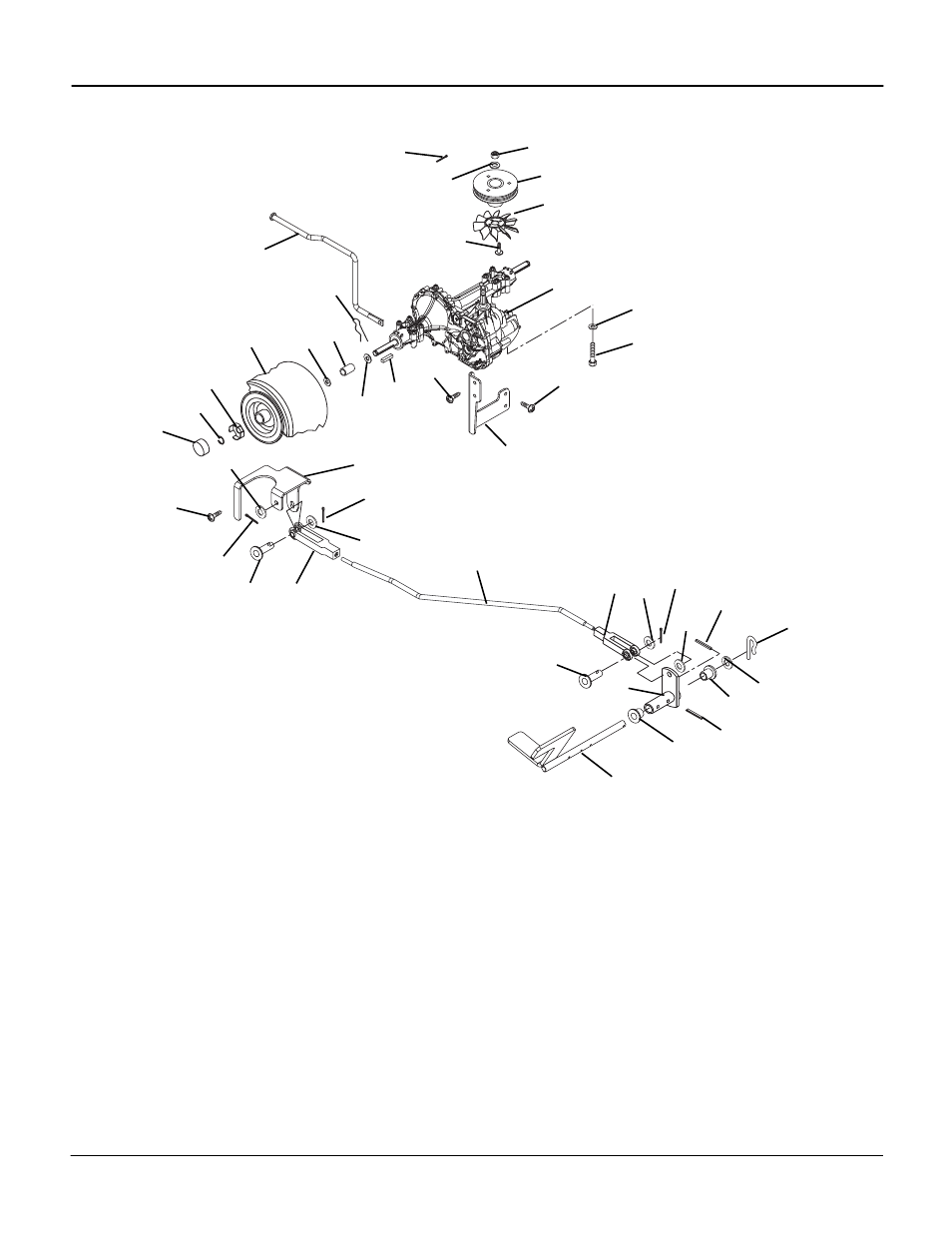

Item Part No. Qty. Description
1 02761200 1 Transmission Support, Rear Engine Rider Hydro
2 07415400 2 Screw, Tapping .38-16 x .75 Hex Washer Head
3 07411500 4 Screw, Tapping .31-18 x .50 Hex Washer Head
4 02761600 1 Weldment, Forward and Reverse Pedal
5 05520600 1 Bushing, Flange .502 x 1 x .75
6 06539500 1 Nut, Jam .50-20 Grade 2
7 06307300 1 Washer, Lock .50 x .125 Reg.
8 02765000 1 Pulley, Transmission
9 02772600 1 Fan, 6 Inch
10 07406900 3 Screw, Tapping 10-24 x .484
