-66-

G0605X/G0606X Extreme Series 12" Table Saw

��

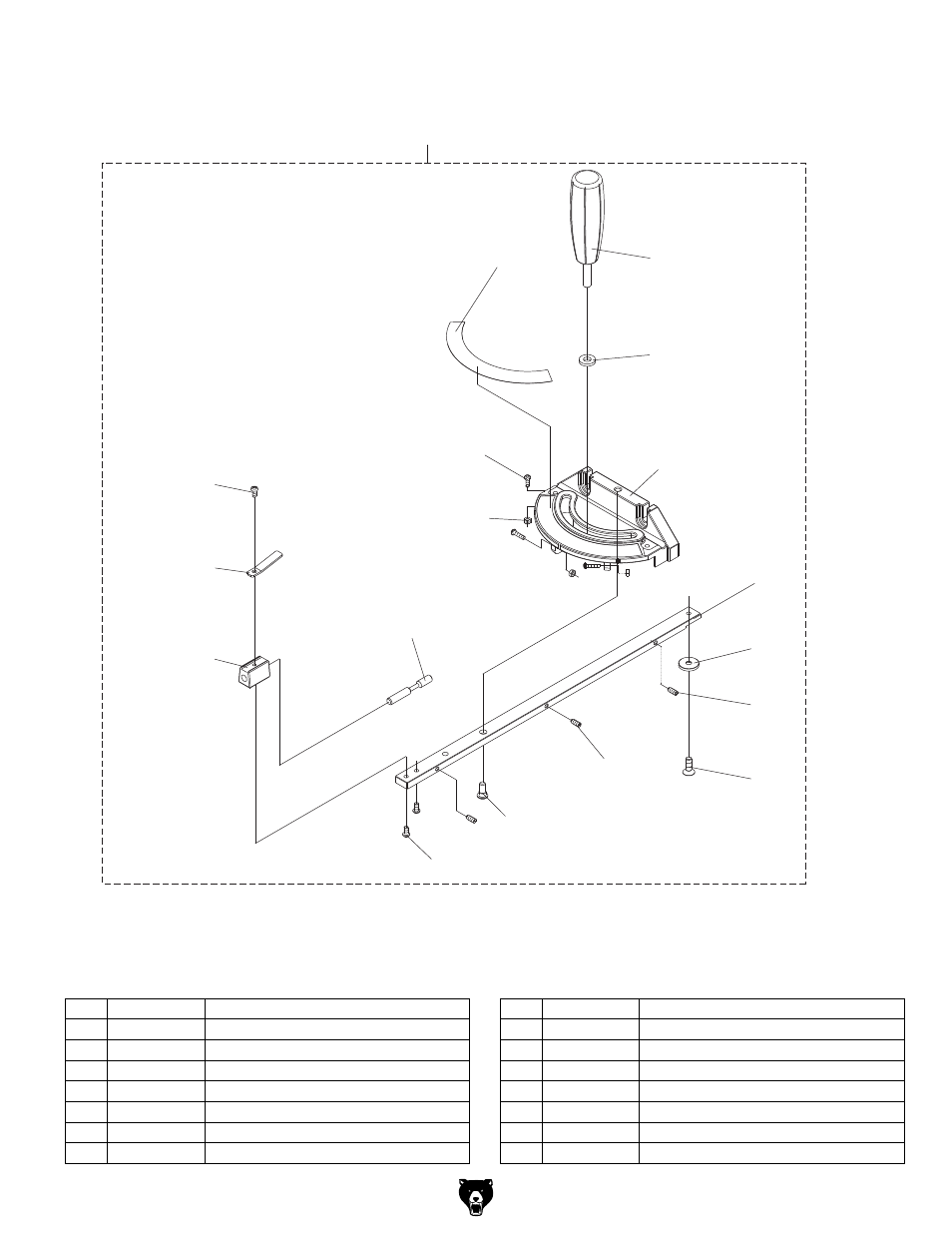

Miter Gauge Assembly Breakdown

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

400

P0605X400

MITER GAUGE

408

PS04

PHLP HD SCR 1/4-20 X 1/2

401

PS06

PHLP HD SCR 10-24 X 3/8

409

PSS53M

SET SCREW M5-.8 X 12

402

P0605X402

POINTER

410

P0605X410

MITER GAUGE HANDLE

403

P0605X403

BLOCK

411

PW01M

FLAT WASHER 8MM

404

P0605X404

SHAFT

412

P0605X412

MITER GAUGE

405

P0605X405

MITER GAUGE SCALE

413

P0605X413

PLATE

406

P0605X406

PHLP HD SCR 5/32-32 X 5/8

414

P0605X414

GUIDE PLATE

407

P0605X407

HEX NUT 5/32-32

415

PFH9M

FLAT HD SCR M6-1 X 6

Miter Gauge Parts List
