Grizzly G0605X/G0606X - Manual (Page 67)

G0605X/G0606X Extreme Series 12" Table Saw
-65-
���
���
���
���
���
��� ���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���

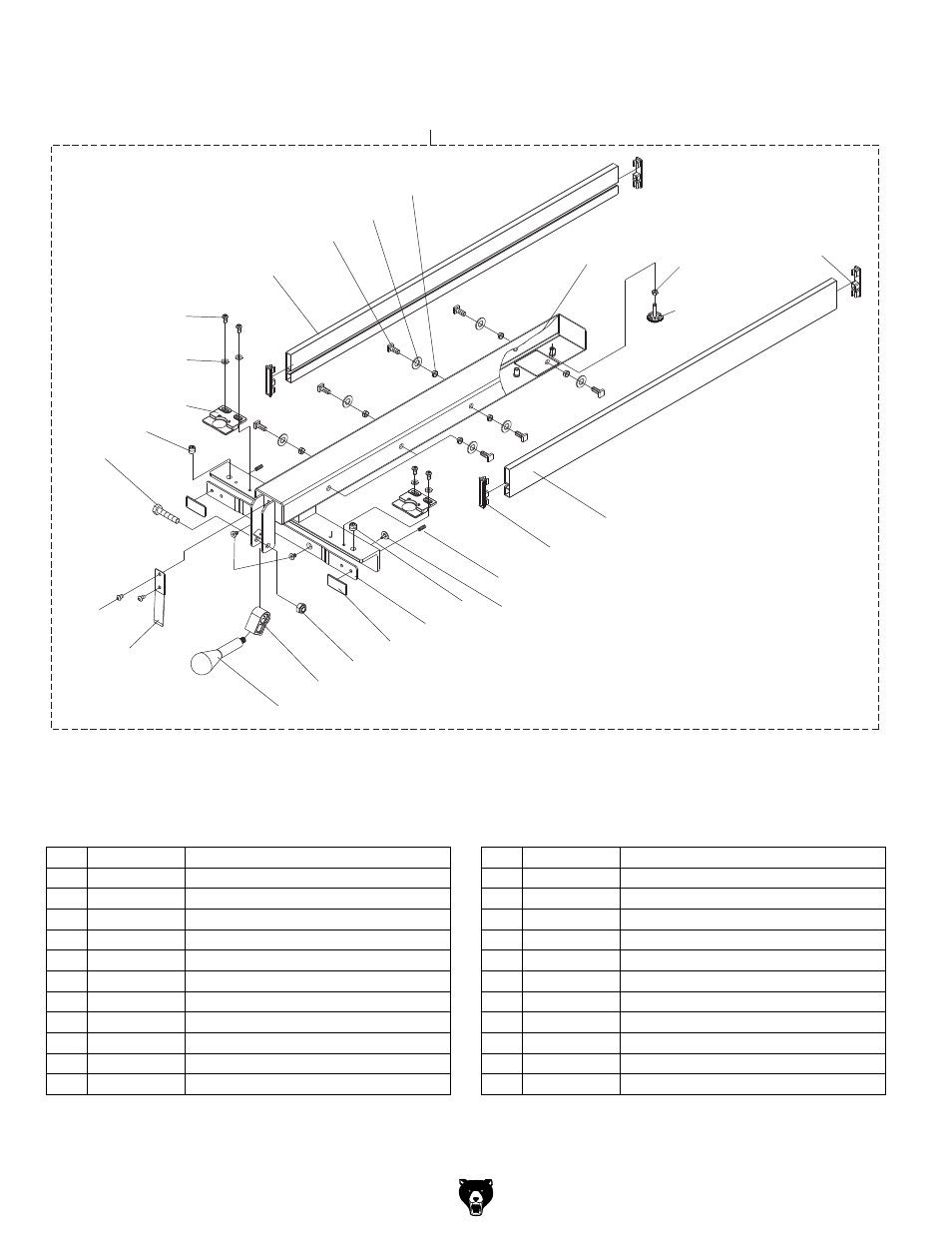

Fence Assembly Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
300 P0605X300 FENCE ASSEMBLY 312 P0605X312 CAM
301 PS68M PHLP HD SCR M6-1 X 10 313 PFH43M FLAT HD SCR M6-1 X 10
302 PW03M FLAT WASHER 6MM 314 PLN05M LOCK NUT M10-1.5
303 P0605X303 POINTER 315 P0605X315 PLATE
304 P0605X304 PLASTIC SET SCREW 316 P0605X316 CLAMPING BRACKET
305 PB73M HEX BOLT M10-1.5 X 50 317 PSS20M SET SCREW M8-1.25 X 8
306 PN01M HEX NUT M6-1 318 P0605X318 PLATE CAP
307 P0605X307 REAR RAIL WHEEL 319 P0605X319 FENCE PLATE
308 PSB26M CAP SCREW M6-1 X 12 320 P0605X320 FENCE
309 P0605X309 PLATE 321 P0605X321 T-BOLT M8-1.25 X 20
310 PN03M HEX NUT M8-1.25 322 PW01M FLAT WASHER 8MM
311 P0605X311 FENCE HANDLE 323 P0605X323 PLASTIC PAD
Fence Parts List
