-64-
G0605X/G0606X Extreme Series 12" Table Saw
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���

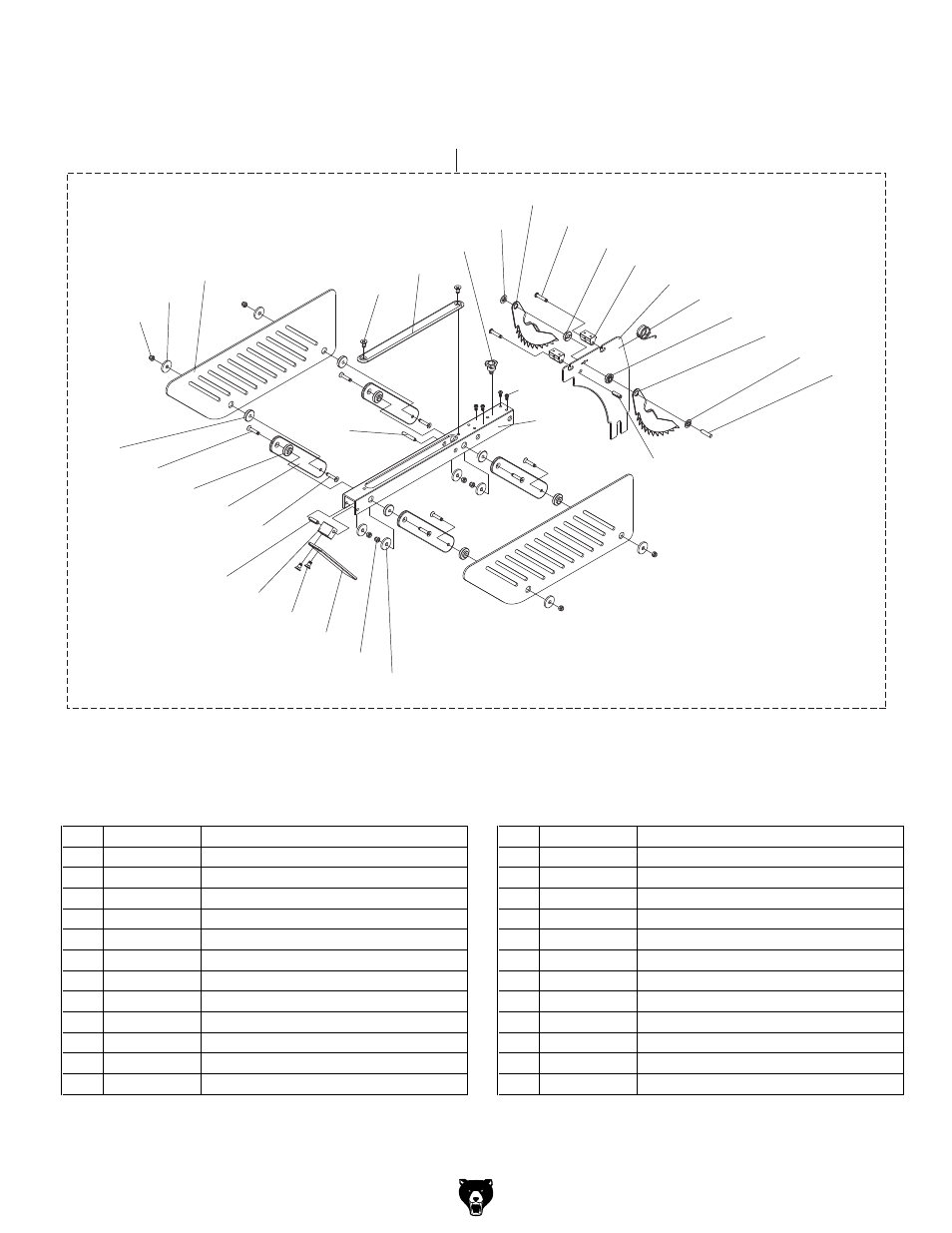

Blade Guard Assembly Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
200 P0605X200 BLADE GUARD ASSEMBLY 213 P0605X213 TORSION SPRING
201 P0605X201 SPLITTER 214 P0605X214 RING 6MM
202 P0605X202 SUPPORT 215 P0605X215 PIN 6 X 24
203 P0605X203 BLADE GUARD SWING BRACKET 216 PFH43M FLAT HD SCR M6-1 X 10
204 P0605X204 BRACKET 217 PFH54M FLAT HD SCR M5-.8 X 20
205 P0605X205 BLADE GUARD COVER 218 PS22M PHLP HD SCR M5-.8 X 25
206 P0605X206 RIGHT ANTI-BACK PAWL 219 PRP95M ROLL PIN 8 X 55
207 P0605X207 LEFT ANTI-BACK PAWL 220 PRP45M ROLL PIN 5 X 32
208 P0605X208 MITER GAUGE LOCK KNOB 221 PRP07M ROLL PIN 6 X 20
209 P0605X209 FRONT COVER 222 PS07M PHLP HD SCR M4-.7 X 8
210 P0605X210 UPPER COVER 223 PLN02M LOCK NUT M5-.8
211 P0605X211 BLOCK 224 PW02M FLAT WASHER 5MM
212 P0605X212 SPACER 225 P0605X225 RING 6MM
Blade Guard Parts List
