Connection to
External equipment
11
EN
Connect the signal cable from the monitor output socket of
the DVD player or Set top Box to the
HDMI INPUT
socket
of the set.
Connect the audio cable from the PC to the
AUDIO INPUT
sockets of the set.
Press the
INPUT SELECT
button to select
HDMI
.
Switch on the HDMI, and the HDMI screen appears on the
set.
HDMI input signal
: 480p-60Hz, 576p-50Hz, 720p-50Hz,
720p-60Hz, 1080i-50Hz, 1080i-60Hz.
HDMI Interface with HDCP Copy Protection enables all-
digital rendering of video without the losses.
This TV SET can receive the High-Definition Multimedia
Interface(HDMI) or Input of Digital Visual Interface(DVI).

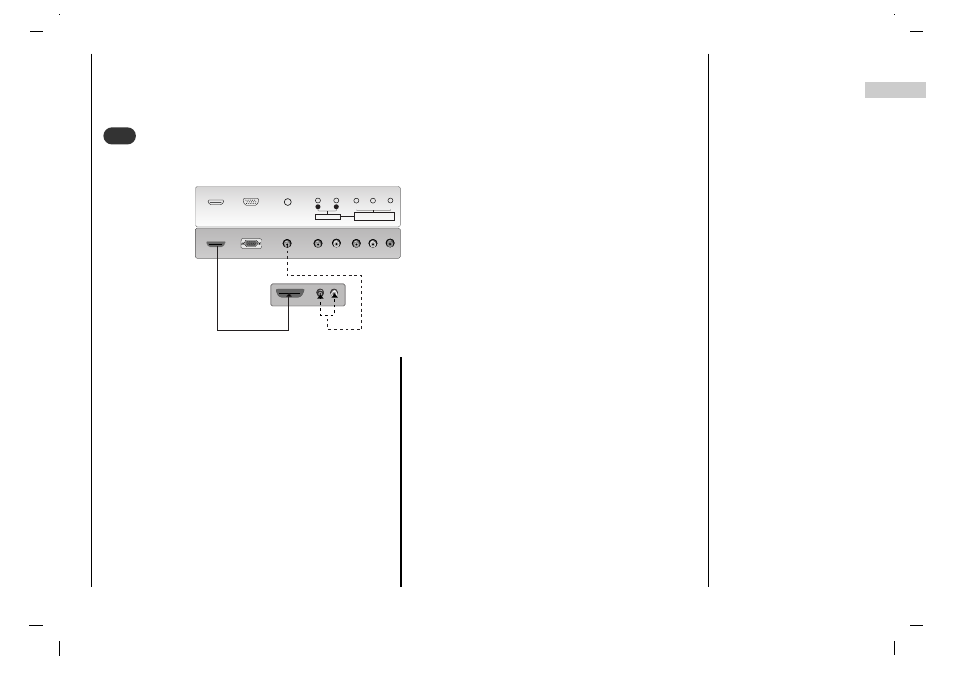

Connecting HDMI
RGB INPUT
RGB INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO
AUDIO
R
L
COMPONENT
COMPONENT INPUT
INPUT
(480i/480p/720p/1080i)
(480i/480p/720p/1080i)
Y
P
b
P
r
HDMI INPUT
HDMI INPUT
HDMI OUTPUT
HDMI OUTPUT
(R)
(R) AUDIO (L)
AUDIO (L)
6
6
< Back panel of the set >
< DVI signal input only>
