Section 1 — General Information
Air-cooled 11 kW Generators
5
1.5 THE GENERATOR
Exhaust
Enclosure
Oil Filter
Oil Dipstick
Air Filter
Battery Compartment
Control Panel
Data Decal
Fuel Regulator
GFCI Outlet

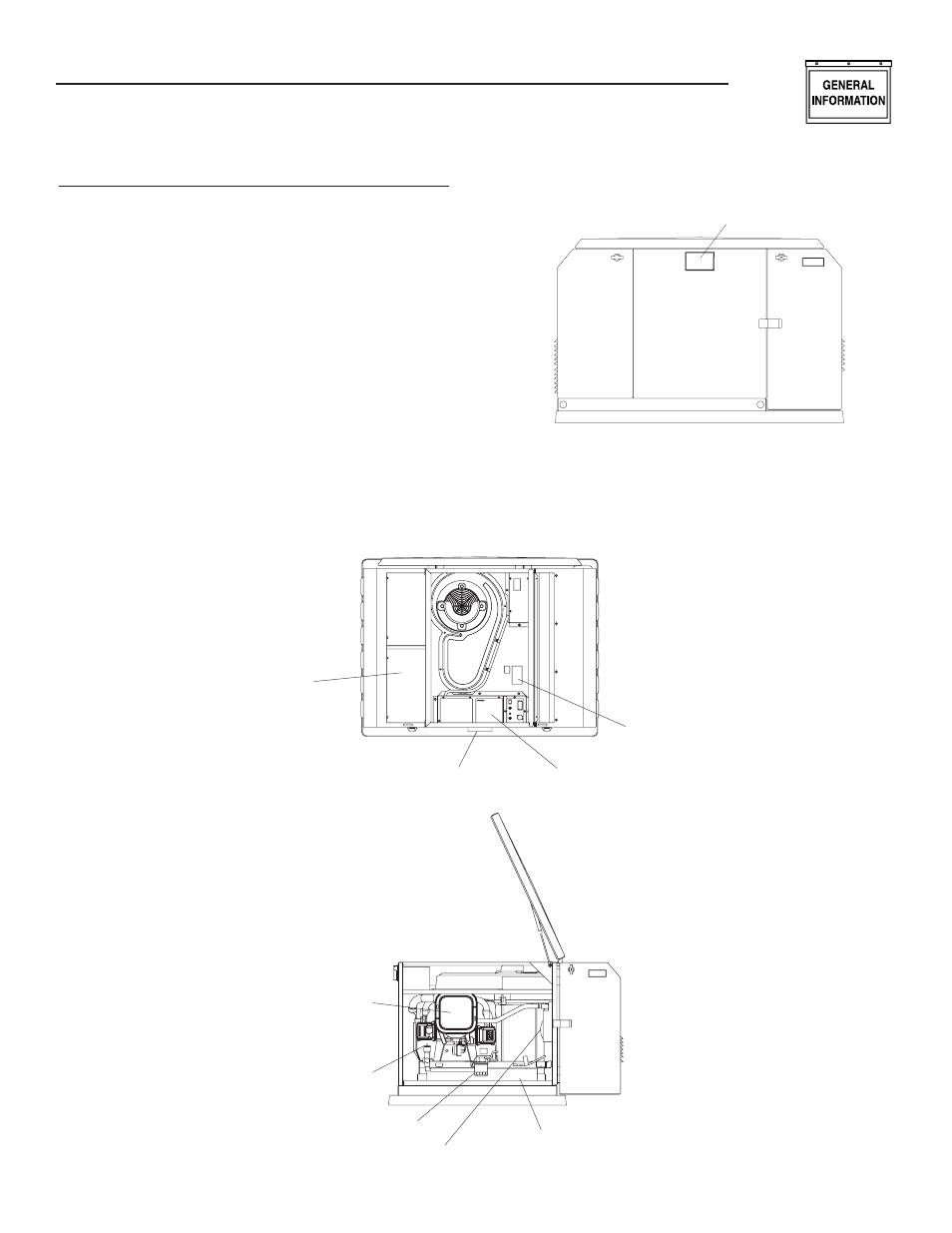

Figure 1.3 – 11 kW, V-twin GT-990 Engine
1.4.2 120 VOLT AC OUTLET
The generator is equipped with an external, 15 amp,
120 volt, GFCI convenience outlet located on the
front of the unit (Figure 1.2). When the generator is
running, in the absence of utility power, this outlet
may be used to power items outside the home such
as lights or power tools. This outlet may also be used
when utility power is present by running the genera-
tor in manual mode.
A dedicated push-pull style circuit breaker is located
on the control panel for this outlet. Pull the breaker
stem out to open the breaker; push in to reset or
close the breaker.
‹ Figure 1.2 — 120 Volt AC Outlet
120 VAC
GFCI OUTLET
Front View
Overhead View
Right Side View
