Monogram. ™
Specification Created 8/00
For answers to your Monogram, ®
GE Profile Performance Series, ™
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
37"
1/2" Thick
Side Panels
36" Finished Dim.
Roughed-In Dim.

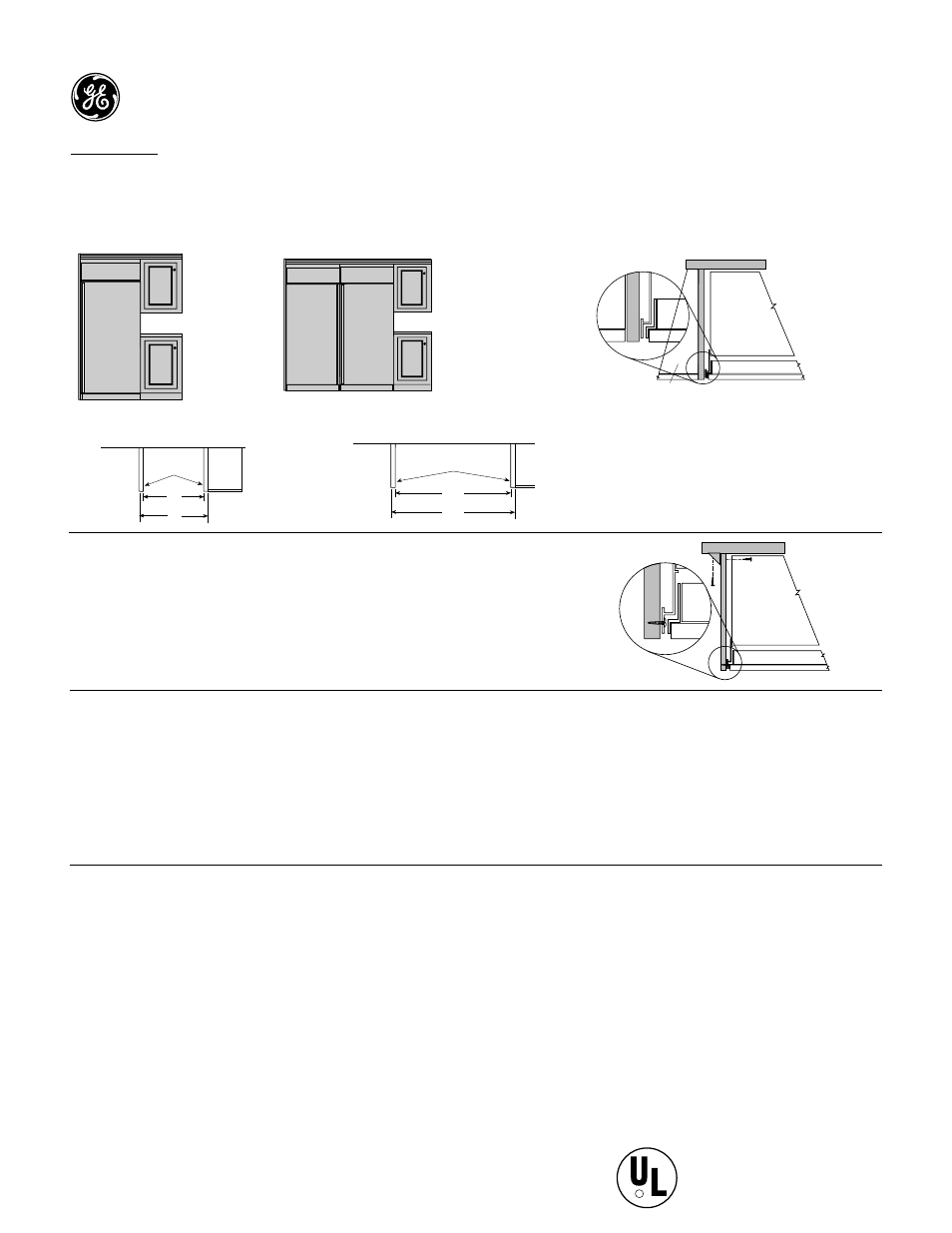

Note: 1/2" thick side panels shown. Side
panels can be any thickness. Add side panel
thickness to outside trim width, (36” or 72" for
two models) to calculate the rough-in
dimension. The leading (front) edge must be
finished to match surrounding cabinetry.
Cabinet
Refrigerator
Cabinet
Refrigerator door
Installation at End of Run
73"
1/2" Thick
Side Panels
72" Finished Dim.
Rough-In Dim.
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
ZIR36ND–GE Monogram 36" Built-In All-Refrigerator
Refrigerator
Cabinet
Refrigerator door
Side panels, 1/2" minimum thickness are required when using frameless cabinets. The side
panel acts as a spacer between the cabinet and the case trim and prevents interference
with cabinet door swing. The leading (front) edge must be finished to match surrounding
cabinetry.
Frameless Cabinets
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
Accessory Panel Kits
These refrigerators and freezers require field installed door and
grille panels.The factory installed trim will accept accessory panel
kits. White or black Lexan® and stainless steel kits are available.
Panels are cut to size and ready to install. These panel kits must be
ordered separately.
ZWBR36, Black Lexan® Panels
ZWWR36, White Lexan® Panels
ZWSR36, Stainless Steel Panels
A wide range of custom appearance options can be created with
optional trim kits.
Accessory Panel Kits Advanced Planning Exterior Appearance Options
These refrigerators and freezers are designed to be customized
with decorator door and grille panels. Field installed custom door
and grille panels are required for these models.
Factory installed trim will accommodate 1/4" thick custom panels,
Lexan® or stainless steel panel kits.
Door and grille panel sizes vary to accommodate the kit being used.
Sizes are provided in this booklet.
Caution: Maximum door panel weight is 50 pounds.
Side panels must be used whenever the sides of the refrigerator will
be exposed. Side panel sizes vary depending on the installation.
3/4" thick custom panels-Without trim kits
A raised panel design, screwed or glued to a 1/4" thick backing can
be used.
You should:
1. Select the appearance option.
2. Order the trim kit for that option.
3. Order the custom door and grille panels from the cabinet
manufacturer. The exact dimension for each trim kit application is
provided in this booklet. Find and pull out the page for your
application and fax or send it to the cabinet manufacturer. The
cabinet manufacturer must have this information to construct the
panels accurately.
4. Determine the final installation situation and order matching
side panels.
