Monogram.

Specification Created 8/00

For answers to your Monogram,

®

GE Profile Performance Series,

GE Profile

or GE appliance questions, call

GE Answer Center

®

service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

ZIR36ND–GE Monogram 36" Built-In All-Refrigerator

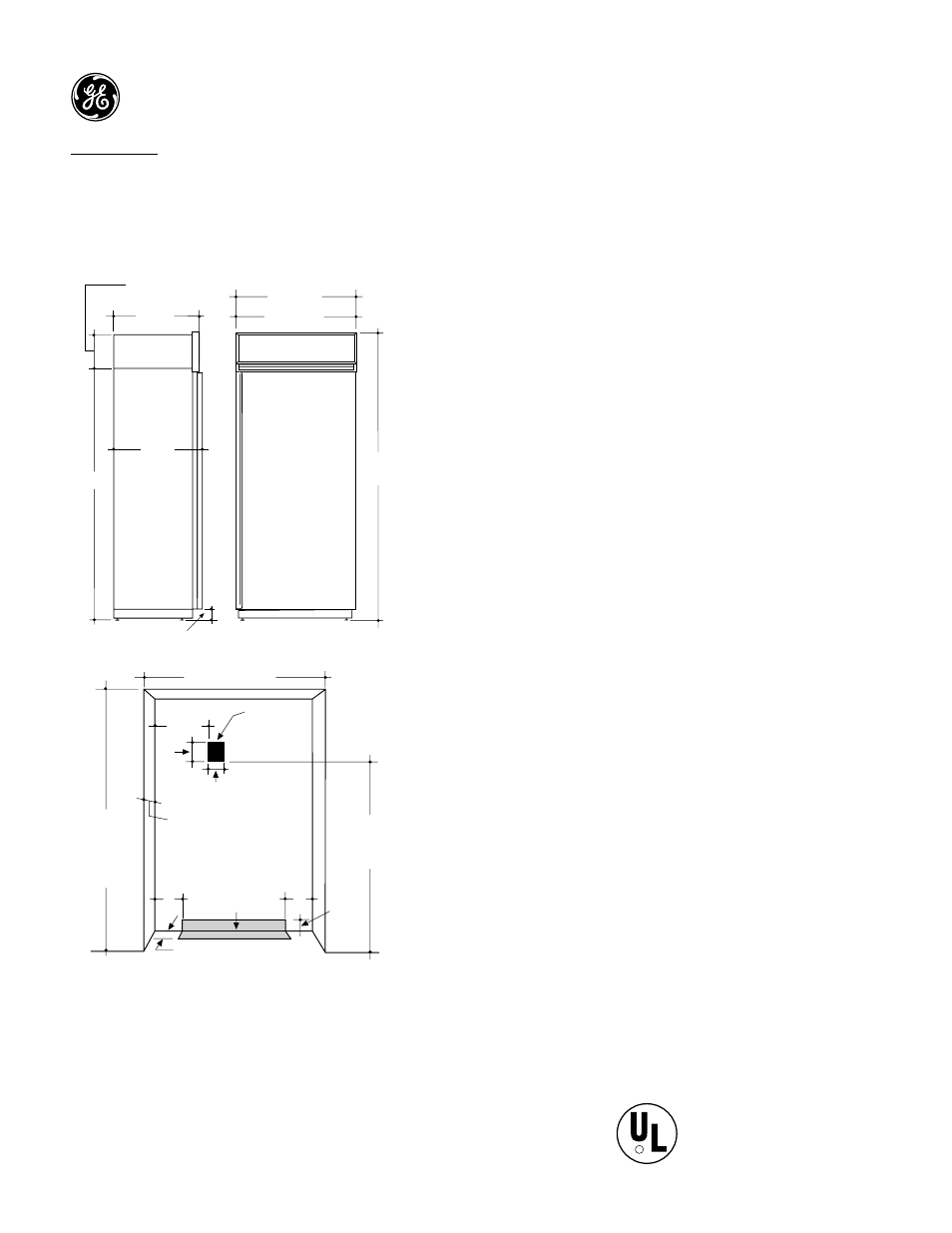

Product Dimensions (in inches)

10-3/4" Max.

10" Min.
24-3/4"

35" Case

36" Overall

84-1/2" Max.

83-1/2" Min.

4"

73-1/2"

26-3/4"

Design Information
Designed to be installed flush or semi-flush with surrounding cabinetry. Cutout
dimensions, clearances and side panel sizes are determined by the many
installation options available. Side panels must be used whenever the sides of
the refrigerator will be exposed. Side panels are not required when installed
into an enclosure or between pantry and oven cabinets. IMPORTANT - Side
panels, 1/2" minimum thickness are required when using FRAMELESS
CABINETS.
• Field installed custom panels, Lexan® or stainless steel panels are required.

The door and grille panel sizes vary to accommodate the kit being used.

• The supplied toekick is vented and must remain unobstructed for proper

air circulation.

Optional Panel Kits:
• ZWBR36: Black Lexan® Panel Kit
• ZWWR36: White Lexan® Panel Kit
• ZWSR36: Stainless Steel Panel Kit

Optional Custom Trim Kits:
• ZKHR1: For installation of a custom handle of your choice onto a 1/4" Panel.
• ZKTR36LH or ZKTR36RH: For installation of a 3/4" thick custom panel.
• ZKHTR1: For installation of a custom handle of your choice onto a 3/4" thick

panel. (This kit must be used in combination with ZKTR36LH or ZKTR36RH).

• ZKHRSS1: Tubular Stainless Steel handle for 1/4" thick panel.
• ZKHTRSS1: Tubular Stainless Steel handle for 3/4" thick panel.
• ZGC2: 1/4" grille panel frame side pieces for 83-1/2" and 84-1/2" installation

heights. (Factory set for 84").

• ZWT1: White toekick (supplied toekick is black).
• ZFC1: Trim strip for side-by-side installation of

two products.

Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required. An individual

properly grounded branch circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.

• Water line can enter opening through the floor or back wall. The water line

should be 1/4" O.D. copper tubing between the cold water line and water
connection location, long enough to extend to the front of the refrigerator.
Installation of an easily accessible shut off valve is recommended.

Clearances:
• If the refrigerator or freezer is installed in a corner:

A 4" clearance is required on the hinge side for a 90° door opening and
access to fresh food drawers. A 10" clearance is required on the hinge side to
remove pans.

7 1/2"

74" From Floor

to Bottom

of Electrical

84 1/2" max

83 1/2" min

Finished
Opening

*Finished Width

Electrical
Area

5"

5"

5"

3 1/2"

24 3/4" Total
Depth

Water Supply

3 1/2"

Wall View

7"

* 36" Min. for a flush installation into an enclosure.
* 35-1/2" Min. for a semi-flush installation into an enclosure.
Note: Additional cutout width may be required when side panels
are used. Add side panel thickness to the finished cutout width to
calculate rough-in width.
