ZIR36ND–GE Monogram 36" Built-In All-Refrigerator
Flush or Semi-Flush Enclosure Installation
Monogram built-in refrigerators and freezers can be
installed flush with typical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator or
freezer will project forward approximately 3/4" beyond the
front face of surrounding cabinetry.
In any installation situation, a wide range of appearance
options can be accomplished through the use of one or
more trim kits.
Side Panel Requirements:
• Side panels are not required whenever the
refrigerator is installed into an enclosure or between pantry and oven
cabinets.
• Side panels are required whenever the sides of the refrigerator are
exposed.
• Side panel sizes vary depending on the type of installation being made.
To accomplish an attractive installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact Sdimensions.
Advanced Planning

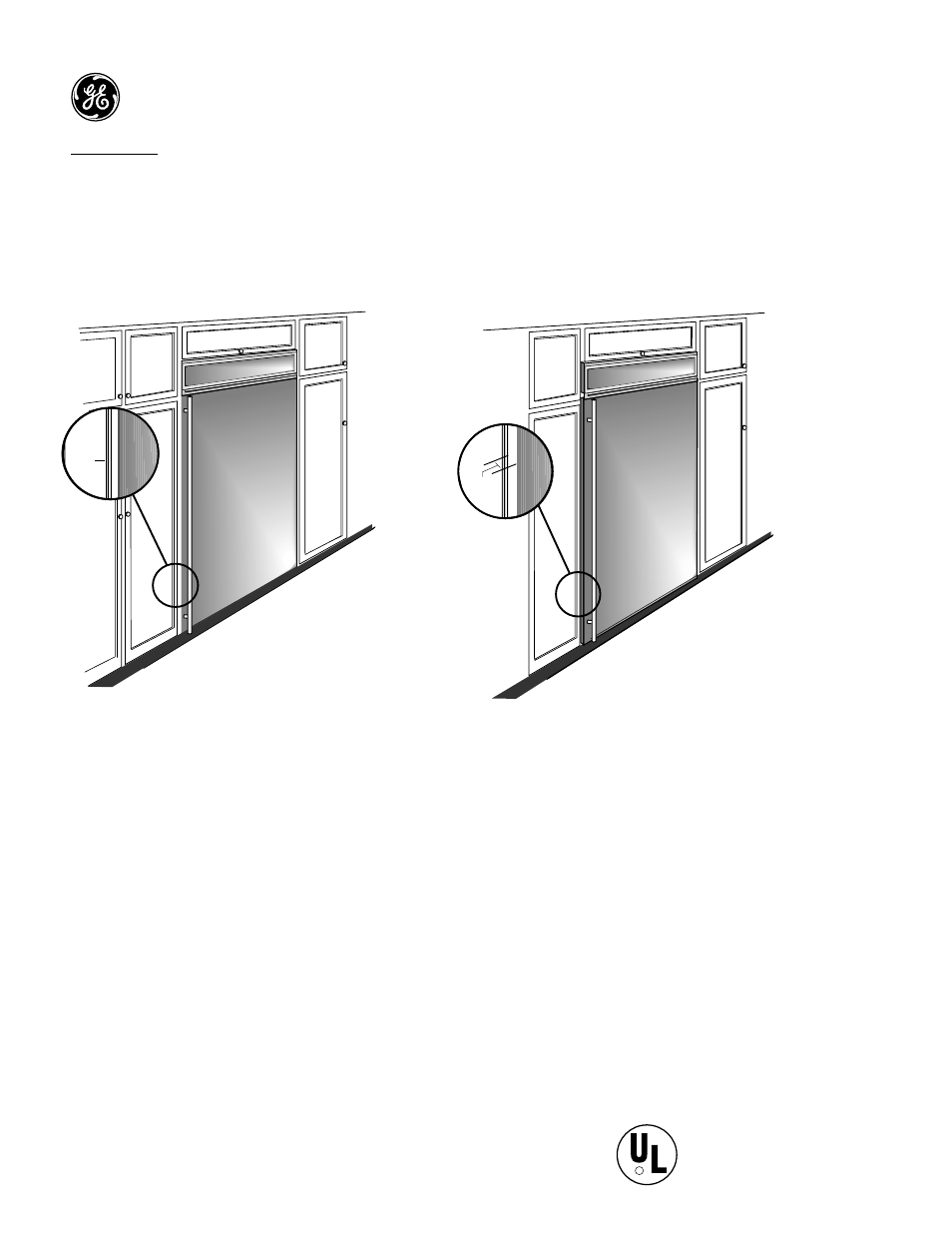

True Flush Installation Semi-Flush Installation
True Flush Installation
In a flush installation,
the refrigerator doors
will align evenly with the
front face of adjacent cabinet
doors. The refrigerator blends
into the surrounding cabinetry.
Semi-Flush Installation
These refrigerators
can also be installed
semi-flush into an enclosure
using the minimum cutout
width. The case trim creates a
frame around the opening.
0"
3/4"
