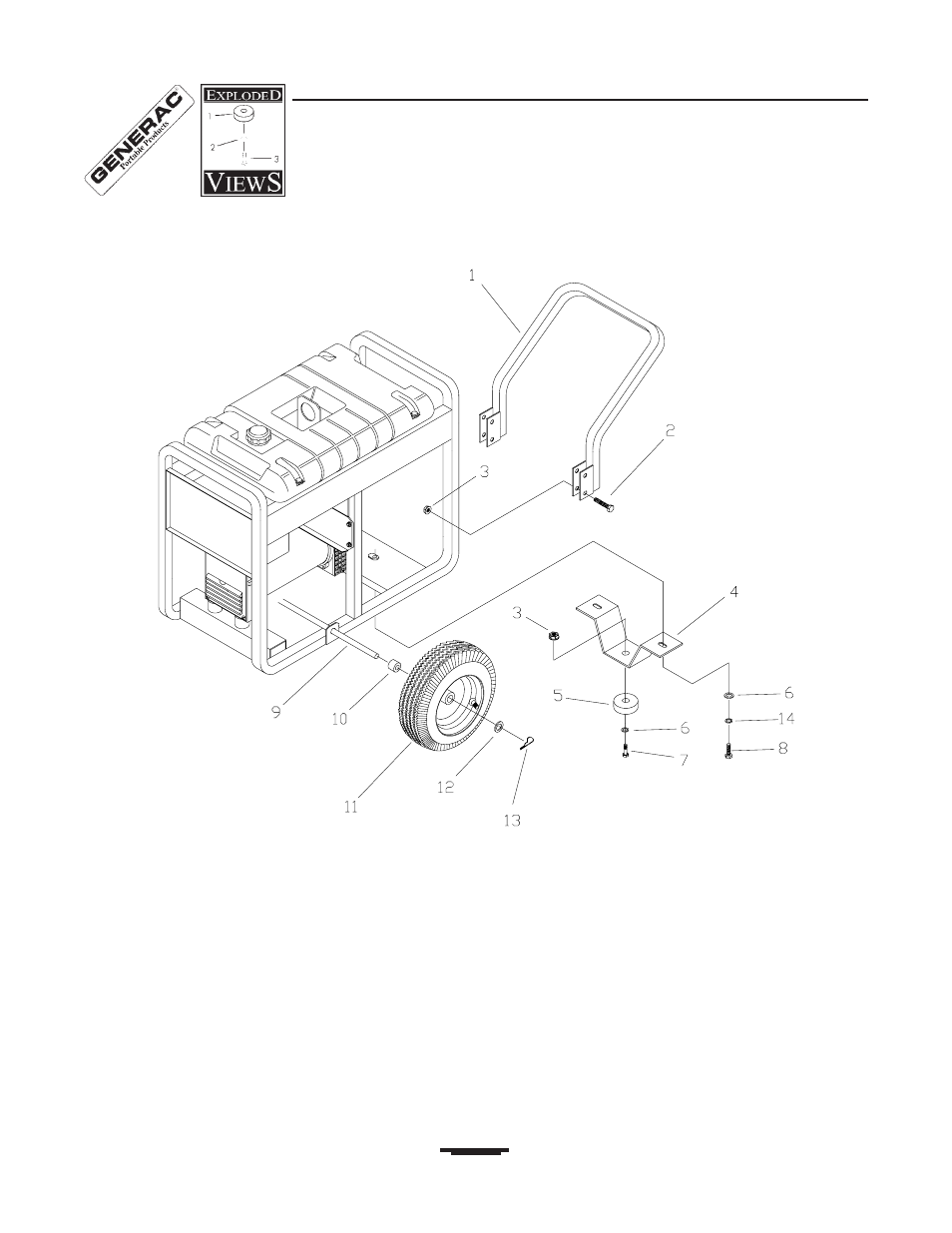

WHEEL KIT EXPLODED VIEW AND PARTS LIST

Item

Part #

Qty Description

1

93393B

1

HANDLE

2

39287

4

HHCS, M8 - 1.25 x 45mm

3

52858

5

NUT, Locking M8 - 1.25

4

93394

1

LEG, Mounting Support

5

27007

1

MOUNT, Vibration

6

22145

3

FLAT WASHER, 5/16 - M8

7

42909

1

HHCS, M8 - 1.25 x 30mm

8

39253

2

HHCS, M8 - 1.25 x 20mm

9

93693B

1

AXLE

10

89635

2

SPACER, Wheel

11

89742

2

WHEEL

12

22247

2

WASHER, Wheel

13

87005

2

PIN, Retaining

14

221292

WASHER, M8 Lock
