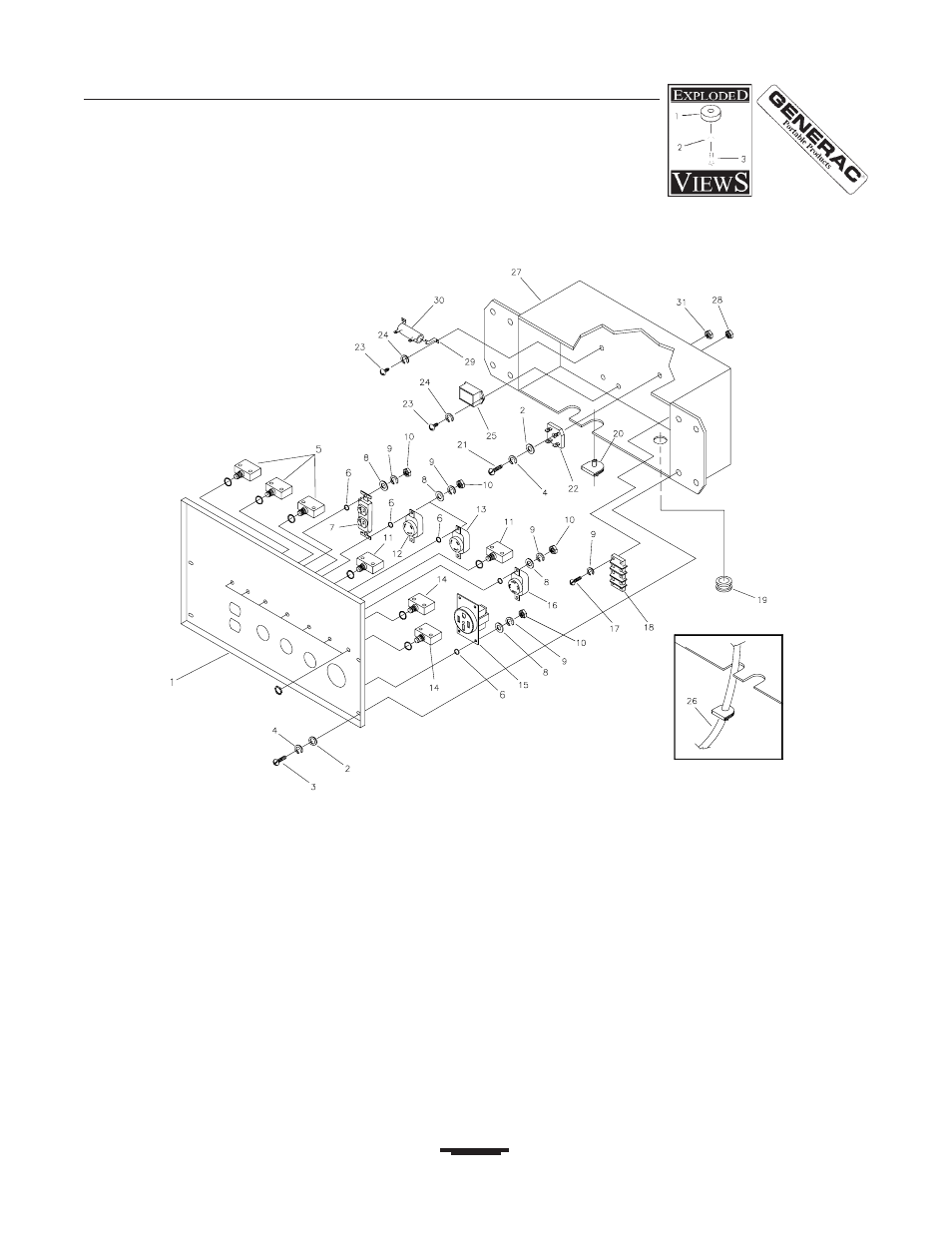

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
Item Part #
Qty Description
1
BB4504
1
PANEL, Control
2
23897
5
FLAT WASHER, #10 - M5
3
91526
4
PPHMS, M5 - .08 x 12mm
4
49226
5
LOCK WASHER, M5
5
75207
3
CIRCUIT BREAKER, 20 Amp
6
23365
12 WASHER, #8 Shakeproof
7
687591
OUTLET, 120V, 20 Amp
Duplex
8
38150
12 FLAT WASHER, #8
922264
12 LOCK WASHER, #8
10
51715
12 NUT, M4 - 0.7 Hex
11
75207A
2
CIRCUIT BREAKER, 30 Amp
12
74190
1
OUTLET, 120V/20A Locking
13
68868
1
OUTLET, 120V, 30 Amp
Locking
14
B4445
2
CIRCUIT BREAKER, 45 Amp
15
B4262
1
OUTLET, 120/250V, 50 Amp
Item Part #
Qty Description
16
43437
1
OUTLET, 120/240V, 30 Amp
Locking
17
80077
4
PPHMS, M4 x 20mm
18
92953
1
BLOCK, 50 Amp, 3 - Terminal
199
0576
1
GROMMET, Rubber
20
84135
1
GROMMET, Rubber
21
75477
1
PPHMS, M5 - 0.8 x 20mm
22
B4894
1
RECTIFIER, Battery Charge
23
43181
4
PHMS, M3 - 0.5 x 10mm
24
43182
4
LOCK WASHER, M3
25
77314
1
RELAY, Thermal
26
B4737
1
ASSEMBLY, Wire Harness
27
B95906
1
BOX, Control Panel
28
51716
1
NUT, Hex M5 - 0.8
29B489
3
2
STAND OFF
30
B4892
1
RESISTOR, 2ohm 25 watt
31
51714
1
NUT, Hex M3
