Generac Portable Products SE10000 Generator

20

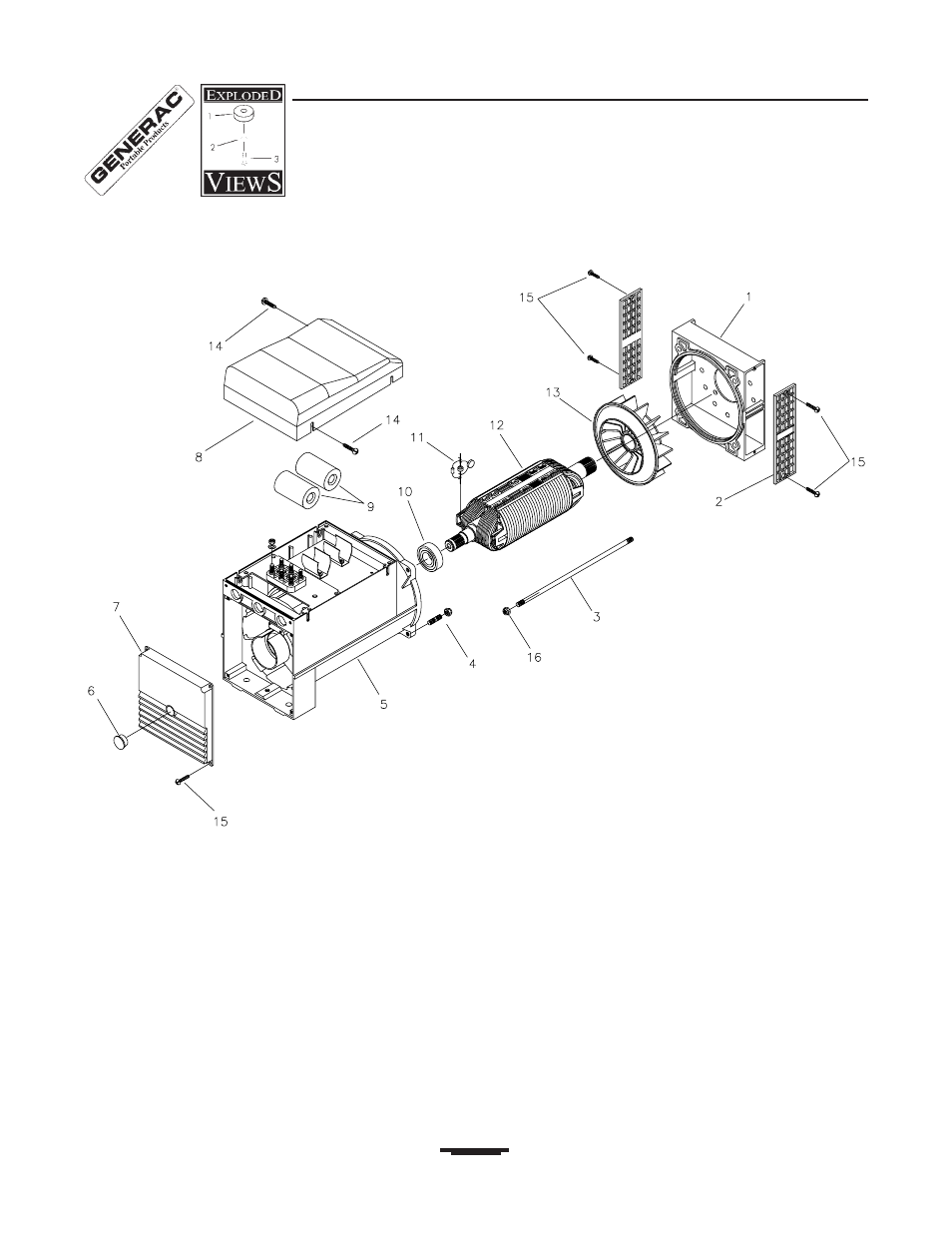

ALTERNATOR EXPLODED VIEW AND PARTS LIST

Item Part #

Qty Description

1

B4906

1

SHIELD, Front

2

B4907

2

GRID, Front

3

B4908

1

BOLT, Shaft Stay

4

B4909

4

STAY BOLT, M8 x 30

5

B4910

1

ASSEMBLY, Housing

6

B4911

1

CAP

7

B4912

1

COVER, Blind End

8

B4913

1

COVER, Top Black

9B49

14

2

CAPACITOR, 25mF 450V

Item Part #

Qty Description

10

B4915

1

BEARING, 62052RS C3

11

B4916

1

CAPACITOR, Diode + Varistor

+ EMC

12

B4917

1

ROTOR, (Includes Item 13)

13

B4918

1

FAN

14

B4919

2

SCREW, M6 - 1.0 x 10mm

15

B4920

8

SCREW, M5 - 0.8 x 10mm

16

49820

1

LOCK NUT, M8 - 1.25
