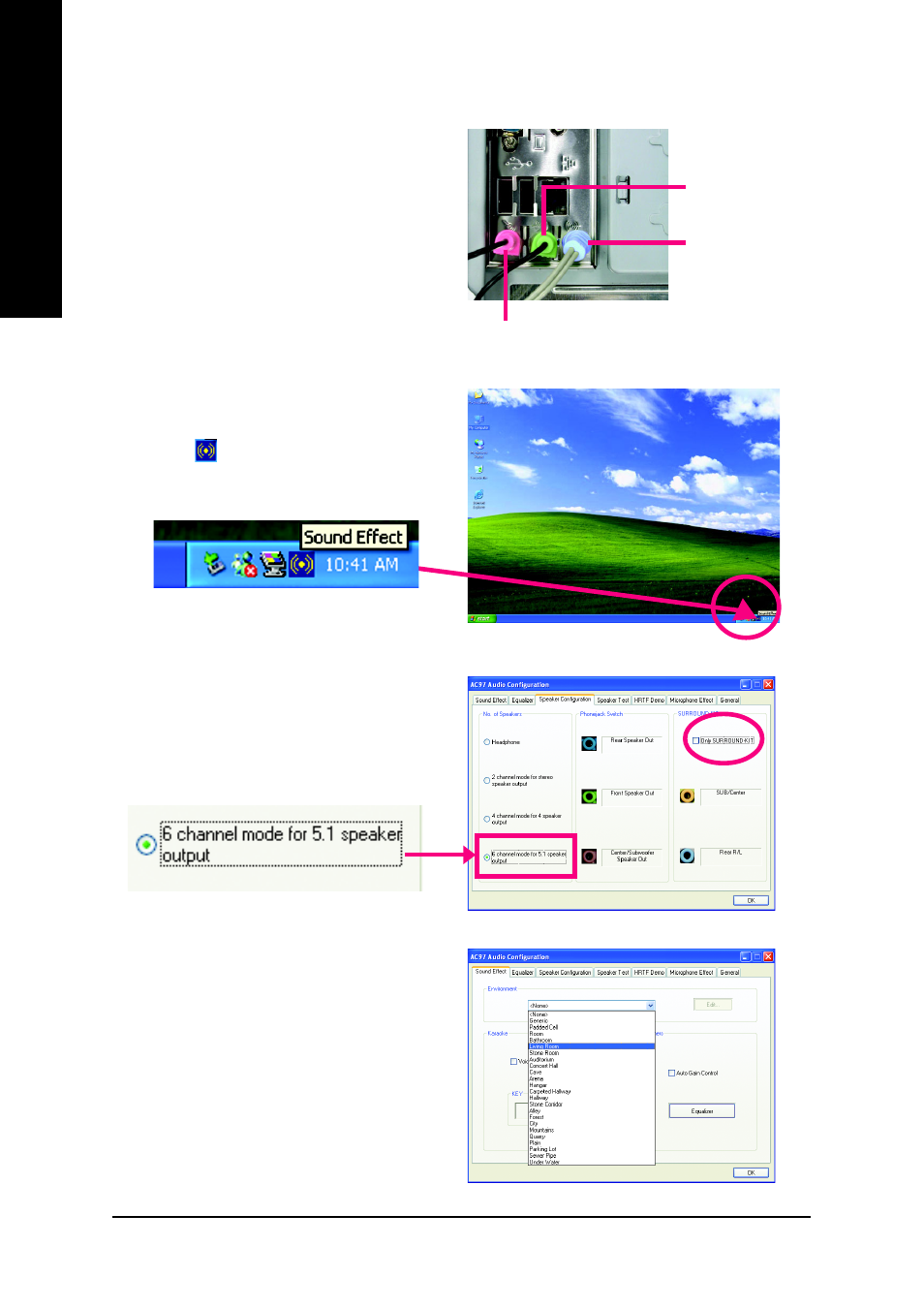

STEP 1:
Connect the front channels to "Line Out" jack, the
rear channels to "Line In" jack, and the Center/
Subwoofer channels to "MIC In" jack.
6 Channel Analog Audio Output Mode
STEP 3:
On the AC97 Audio Configuration menu, click the
Speaker Configuration tab and select the 6 chan-
nel mode for 5.1 speaker output check box.
Clear the Only SURROUND-KIT check box and press
OK.
STEP 2:
After installing the audio driver, you'll find a Sound
Effect icon
on the lower right hand taskbar.
Click the icon to select the function.
When the Environment setting is None, the sound
would be performed as stereo mode (2-channel
output). Please select the other settings (ex: Liv-
ing Room) for 6-channels output.
Line In
(Rear Speaker Out)
Line Out
(Front Speaker Out)
Mic In
(Center/Subwoofer Speaker Out)
