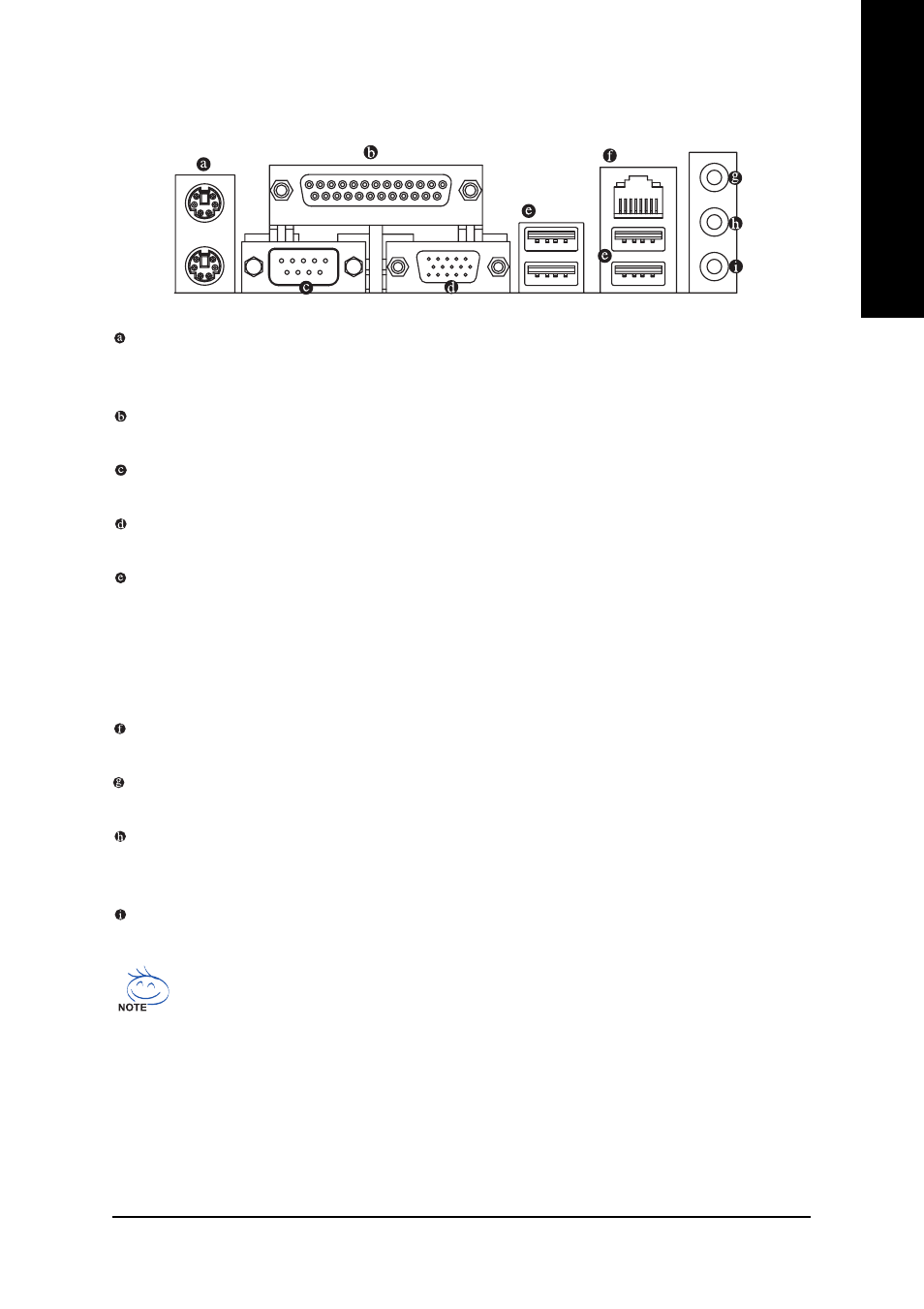

1-6 I/O Back Panel Introduction
You can use audio software to configure 2-/4-/6- channel audio functioning.
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard to the lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
Serial Port
Connects to serial-based mouse or data processing devices.
VGA Port
Monitor can be connected to VGA port.
USB Port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also
make sure your OS supports USB controller. If your OS does not support USB controller, please
contact OS vendor for possible patch or driver upgrade. For more information please contact your
OS or device(s) vendors.
LAN Port
The provided Internet connection is fast Ethernet , providing data transfer speeds of 10/100 Mbps.
Line In
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out
Stereo speakers, earphone or front surround speakers can be connected to Line Out (Front
Speaker Out) jack.
MIC In
Microphone must be connected to MIC In jack.
