-14-
Model h4380 (Mfg. since 7/02)
Bo BA s B E A r in g Co 62 02 - 2 r s
34
44
31
32
29
33
48
48
19
19
20
20
21
23
38
42
39
36
35
37
22
CBB60
47
30
46
6
4
28
3
6
4

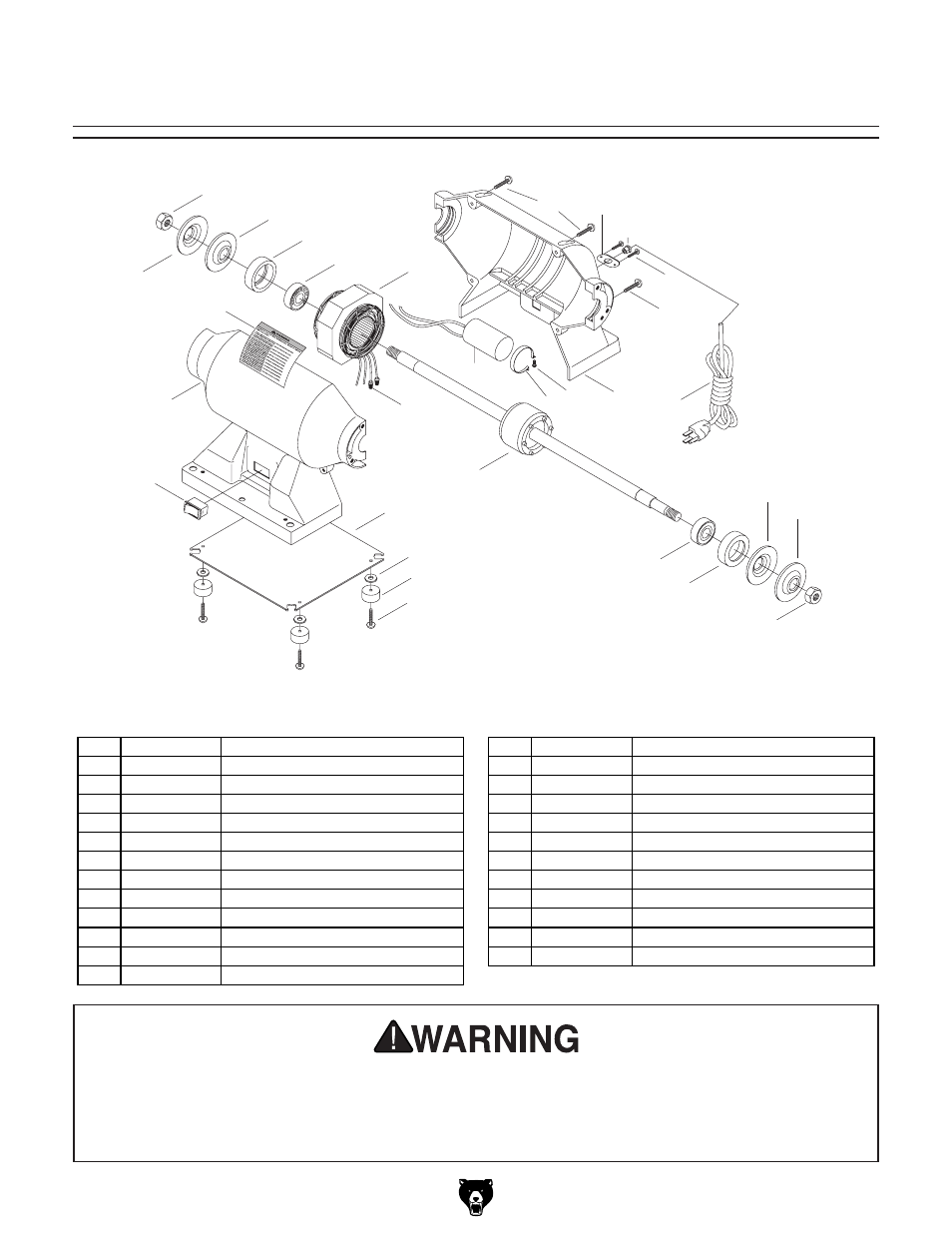

SectIOn 5: partS
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PH4380003 FLANGE NUT M16-2 33 PS01 PHLP HD SCR 10-24 X 1⁄2"
4 PH4380004 OUTER FLANGE 34 PH4380034 MACHINE ID LABEL
6 PH4379004 FLANGE 35 PH4378035 FRONT BODY
19 PH4379019 BUSHING 36 PS22 PHLP HD SCR 10-24 X 5⁄8"
20 P6203-2RS BALL BEARING 6203-2RS 37 PH4378037 SWITCH
21 PH4379021 MOTOR STATOR 38 PH4378038 BASE PLATE
22 PH4378022 WIRE NUT 39 PH4378039 PAD
23 PH4380023 MOTOR SHAFT 42 PW03 FLAT WASHER #10
28 PH4380028 FLANGE NUT M16-2 (LH) 44 PS06 PHLP HD SCR 10-24 X 3⁄8"
29 PH4378029 WIRE 46 PH4378046 STRAIN RELIEF PLATE
30 PH4378030 STRAIN RELIEF 47 PH4378047 CAPACITOR BRACKET
31 PH4378031 BACK B0DY 48 PS01 PHLP HD SCR 10-24 X 1"
32 PH4378032 CAPACITOR CBB60
Safety labels warn about machine hazards and ways to prevent injury. the owner of this machine
MuSt maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, repLace that label before using the machine again. contact
grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
