Installation instructions, Step 1 construct ceiling support (cont.) – GE MONOGRAM ZV1050 User Manual
Page 8
8
Installation Instructions

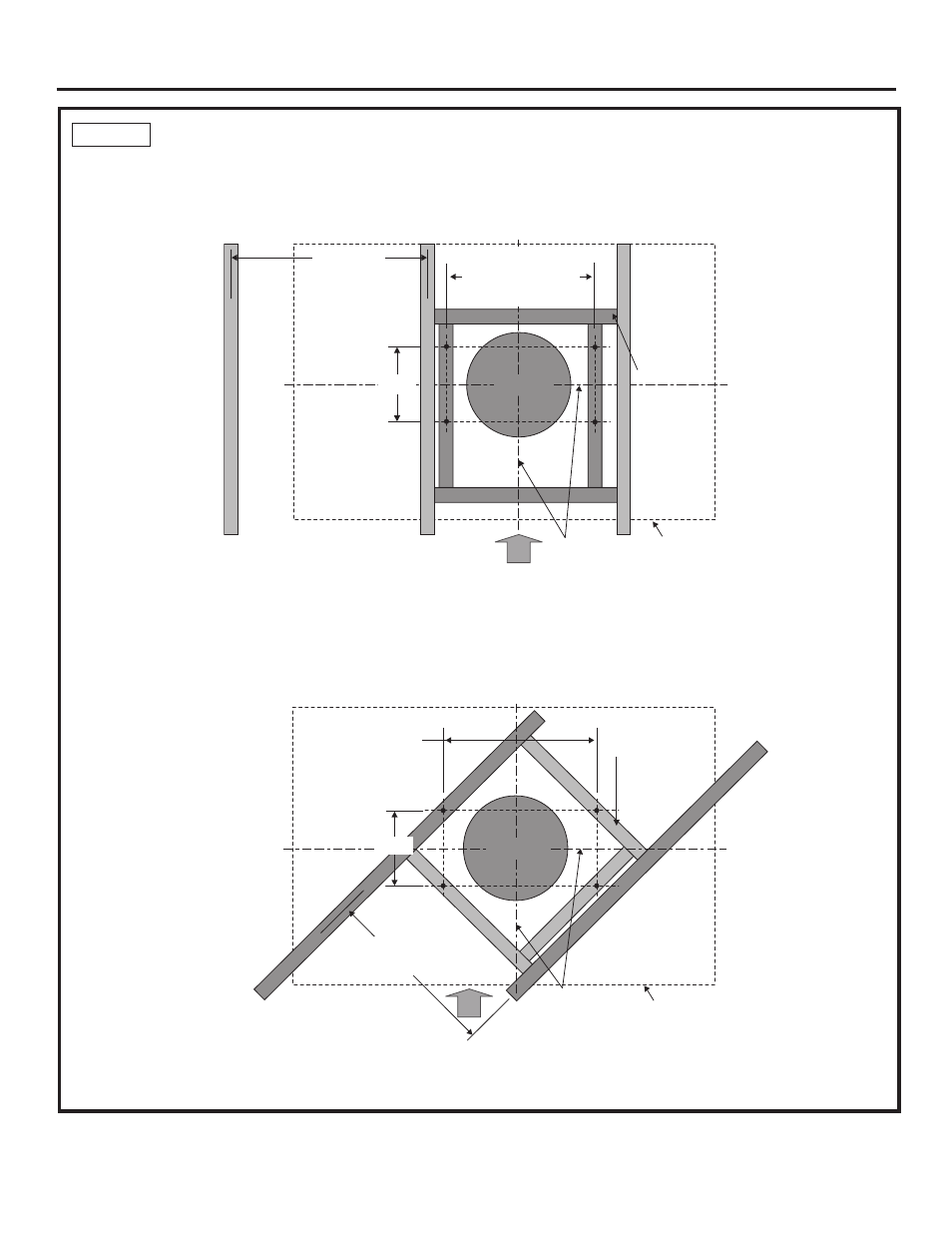

STEP 1 CONSTRUCT CEILING SUPPORT (cont.)
Align Duct to
Center of Cooktop
Cooktop
Outline
Top View—Ceiling Joists Run Perpendicular to Front of Hood
Front
of Hood
EXAMPLE B
11-1/4" Install Cross-Framing
Symmetrically About
Duct/Cooktop Centerline
16" Joist
Spacing
2x4 Cross-
Framing
7-1/4"
8" Duct
EXAMPLE C
7-1/4"
2x4 Cross-
Framing
11-1/4" Install
Cross-Framing
Symmetrically About
Duct/Cooktop Centerline
8" Duct
16" Joist
Spacing
Align Duct to
Center of Cooktop
Cooktop
Outline
Top View—Ceiling Joists at Angle with Front of Hood
Front
of Hood
