Design Information
PRODUCT DIMENSIONS
This vent hood is designed to be used in vented
ceiling-mounted installations. It can be installed over
any Monogram cooktop or range, including Professional
models.
CONTENTS
Design Information
Product Dimensions ......................................................... 3
Duct Cover Accessories ................................................. 3, 4
Determine Installation Height ........................................ 4
Advance Planning
Tools and Materials Required .......................................... 5
Power Supply ..................................................................... 5
Duct Fittings ...................................................................... 6
Installation Instructions
Step 1, Construct Ceiling Support ............................... 7–9
Step 2, Remove Packaging .............................................. 10
Step 3, Check Installation Hardware ............................. 10
Step 4, Mount Template ................................................. 11
Step 5, Install Support Frame......................................... 11
Step 6, Secure Wiring ..................................................... 12
Step 7, Size and Install Ductwork ................................... 12
Step 8, Install Decorative Duct Covers ........................... 13
Step 9, Install Hood ........................................................ 13
Step 10, Connect Electrical ............................................ 14
Step 11, Slide Duct Cover Down .................................... 14
Step 12, Install Filters, Finalize Installation ................... 15

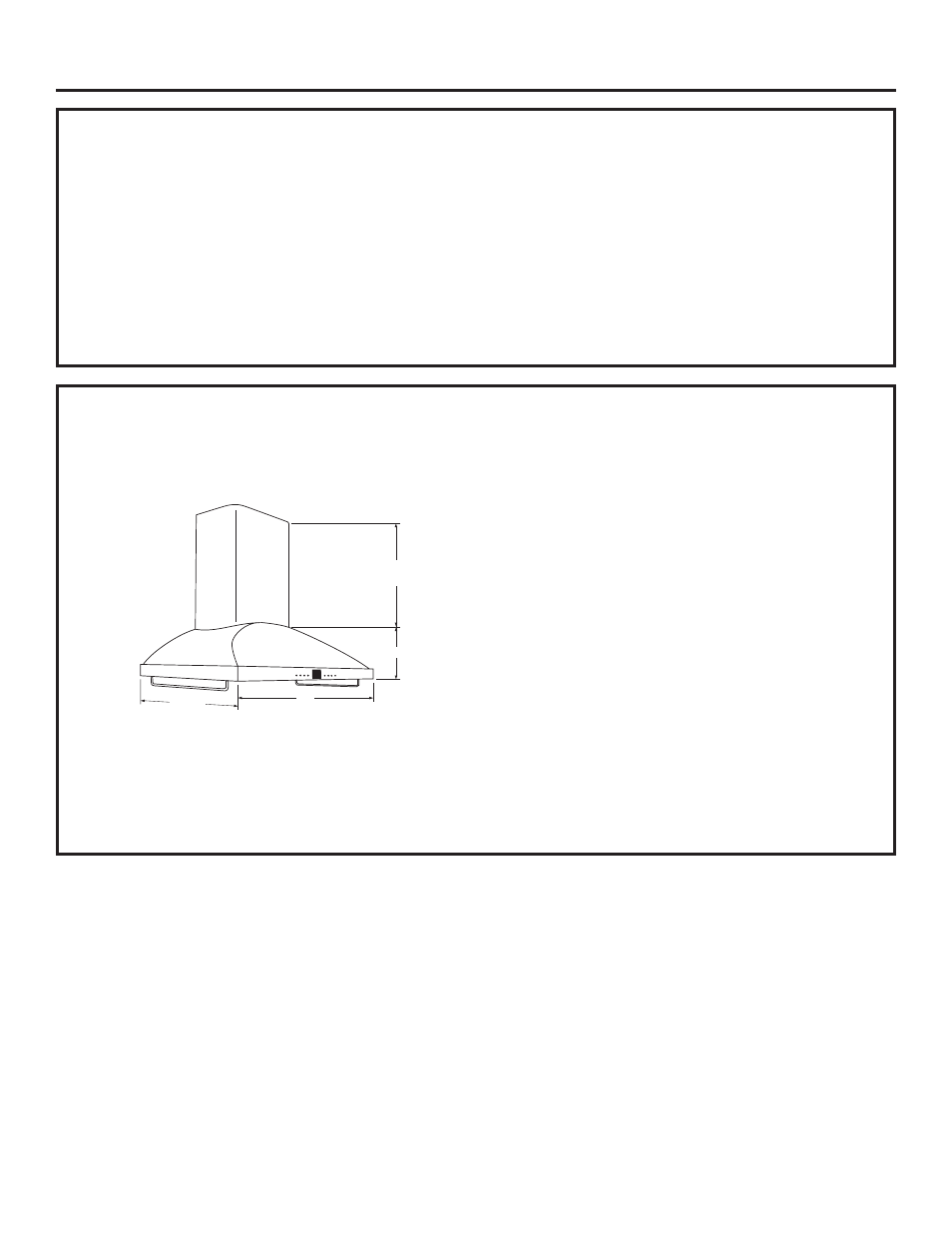

538Dia1
10"
*Height
to Ceiling
42"
31-1/2"
*20" to an 8-ft. ceiling using supplied duct cover
32" for 9-ft. ceiling using ZX1059SFSS Accessory
44" for 10-ft. ceiling using ZX10510SFSS Accessory
This vent hood is supplied with a decorative duct cover
to reach 8-ft. ceiling height, or between 7'11" and 8'1".
DUCT COVER ACCESSORIES
A Duct Cover Accessory may be required for your hood
installation height. Order accessory duct covers for 9-ft.
and 10-ft. ceilings.
ZX1059SFSS – For 9-ft. ceiling height
This kit includes a decorative duct cover and support
frame to reach a 9-ft. ceiling height.
ZX10510SFSS – For 10-ft. ceiling height
This kit includes a decorative duct cover and support
frame to reach a 10-ft. ceiling height.
