GarrettCom Magnum ST80 - Manual (Page 23)

Stackable Personal Hubs Installation and User Guide (04/01)
18
www GarrettCom com . .

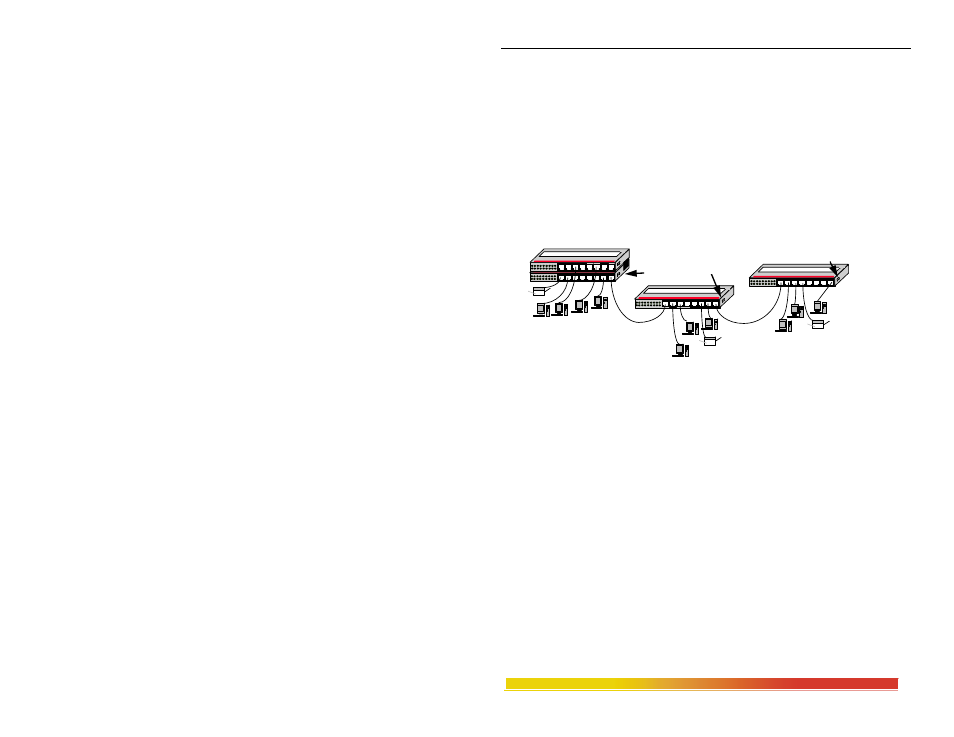

3.10 Cascading the ST80 Personal Hub with the Up-Link port
Stackable Personal Hubs may be cascaded in order to expand existing
networks. For example, an ST80 may be cascaded via the switchable up-link port into
any port of another hub. Also, Stackable Personal Hubs may be connected to a backbone
via the rear AUI port. With the addition of a mini-transceiver, the AUI port may be used
to connect to any standard Ethernet media. (ST80-B and ST80-F Personal Hubs may
connect directly to 10BASE2 and multi-mode Fiber, respectively.) Since each ST80
provides full repeater functionality, cascaded units can operate together even though
there may be a full segment of distance between them.
Based on the "four repeater rule" defined by Ethernet standards, there may be a
maximum of four units in any one chain between any two users. Note that a stack of
ST80s is a single “unit” for repeater functionality.
Magnum ST80 hubs may also be cascaded in networks with other Magnum
Hubs (such as Magnum Personal Hubs, Magnum 1000 Workgroup Hubs, and Magnum
3000 Stackable Hubs and Concentrators) as well as with Ethernet hubs from other
manufacturers.
Users and devices
Magnum ST80 Stackable Personal Hub
Ports 1 2 3 4 5 6 7 8
PWR AUI IR B 1 I R B 2 S tac k E na ble
OFF ON UP-LINK
Magnum ST80 Stackable Personal Hub
Ports 1 2 3 4 5 6 7 8
PWR AUI IR B 1 I R B 2
Sta ck En ab le
OFF
O N UP-LINK
Magnum ST80 Stackable Personsal Hub
Ports 1 2 3 4 5 6 7 8
PWR AUI IR B 1 I R B 2 St ack E na ble
OFF
ON UP-LINK
Port 8 Up-Link
switch in X position
Port 8 Up-Link
switch in == position
Users and devices
Users and devices
Magnum ST80 Stackable Personal Hub
Ports 1 2 3 4 5 6 7 8
PWR AUI IR B 1 I R B 2 St ac k E na b le
OFF
O N UP-LINK
