included in the stack, attach them in the same manner. (The brackets and screws
included with the bottom unit of the stack will
not be used for stacking purposes.)
3.4 Twisted Pair Segment Connections
1. Using standard 10BASE-T media,
insert the male plug on one end of the network
cable into one of the RJ-45 female ports on the
Stackable Personal Hub. Even though the hub's
ports are of the shielded type, they will accept and operate properly with both shielded
and unshielded type RJ-45 twisted pair wiring.
2. Connect the other end of
each wiring cable to the applicable
workstation or user device. The port’s
LINK LED illuminates when the
connection is made on both ends of the
wire, and when the DC power is on at
each end, i.e., when the segment
circuit is established and is ready to use.
3. For the port 8 up-link feature, see 3.8.
3.5 AUI Connection
Using the steps below as a guide, attach a new or existing 10BASE5 ThickNet drop-
cable directly to the AUI connector on the rear of the ST80 Personal Hub.
1. Plug the male end of the cable into the female AUI connector on the ST80.
2. Engage the AUI connector slide lock to insure maximum connectivity.
3. Connect the opposite end of the cable into a network AUI port. (This could be a
network backbone transceiver, a hub or fan-out with an AUI port, or an AUI Port Module in
a concentrator.)

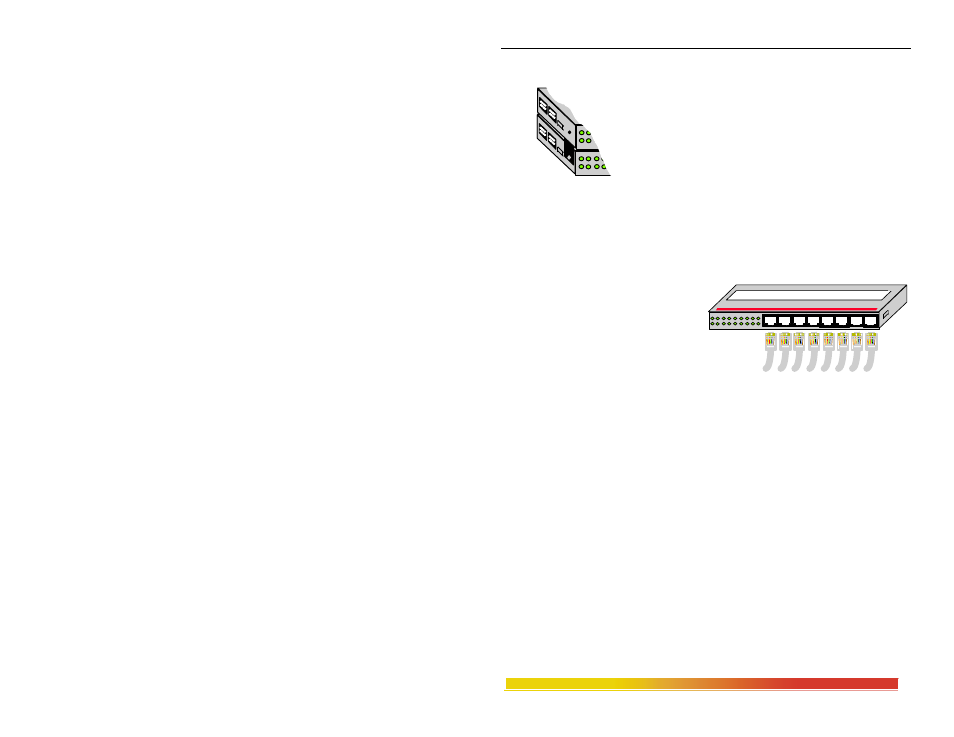

Proper attachment of ST80s with
stacking/mounting bracket
RJ-45 User Connections
Magnum ST80 Stackable Personal Hub
Ports 1 2 3 4 5 6 7 8
PWR AUI
IR B1 IR B2
Stac k En
ab le
O FF
O N UP-LINK
