The rugged steel case of the ST80 Personal Hub will protect it from accidental
damage in an office or lab workplace setting. Keep an open area around the unit so that
convection cooling can occur while the unit is in operation.
3.2
Wall (or Vertical Surface) Mounting (for non-stacked units only)
When the Stackable Personal
Hub is being used as a single unit, the
stacking/mounting brackets may be used to
mount the unit on a wall or any
convenient surface where the associated
cables are out of the way. The brackets
are attached to each side of the ST80’s case using one of the metal screws for each
bracket. The brackets should be
attached to the ST80 through the round
hole of the bracket. When properly
attached, the brackets will extend
slightly below the base of the unit to
allow clearance for the rubber feet.
3.3
Combining and Mounting Stacked Units
When stacking two or more ST80s, the stacking/mounting brackets should be
used to attach each additional unit to the one below it. First, attach two brackets to the
bottom of the upper unit, using two of the metal screws. To ease installation, attach the
brackets to the bottom of each unit
through the round holes of the
brackets. The brackets should be
oriented so that they extend down
and out when the unit is upright.
Next, set the upper unit on top of the lower unit, so that the slotted holes of the
two brackets line up with the screw holes in the side of the lower ST80. Attach the
brackets to the lower unit with the two remaining screws. If additional units are to be

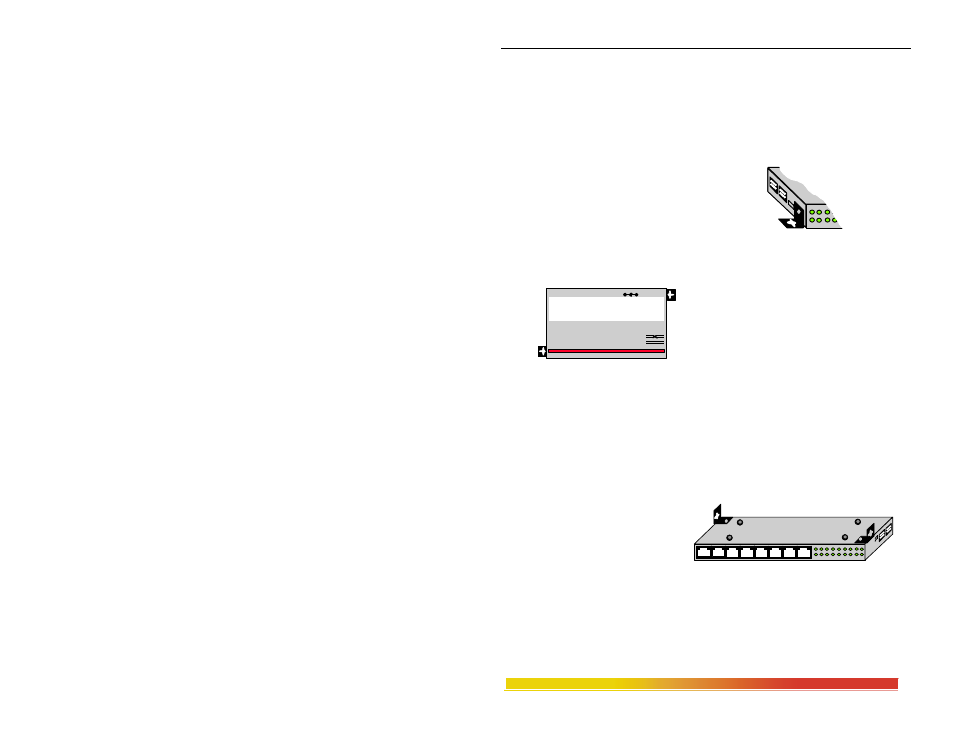

Proper attachment of stacking/
mounting bracket for wall mounting
Magnum ST80 Stackable
Personal Hub
+
-
AUI
PWR
IRB1
I
R
B2
Stac
k E
n
abl
e
O
FF |
O
N
Ports 1 2 3 4 5 6 7 8
UP LINK
Top view - One non-stacked ST80 with
brackets attached for wall mounting
Upside-down view - ST80 with
brackets attached for stacking
