III. Installation and Connection

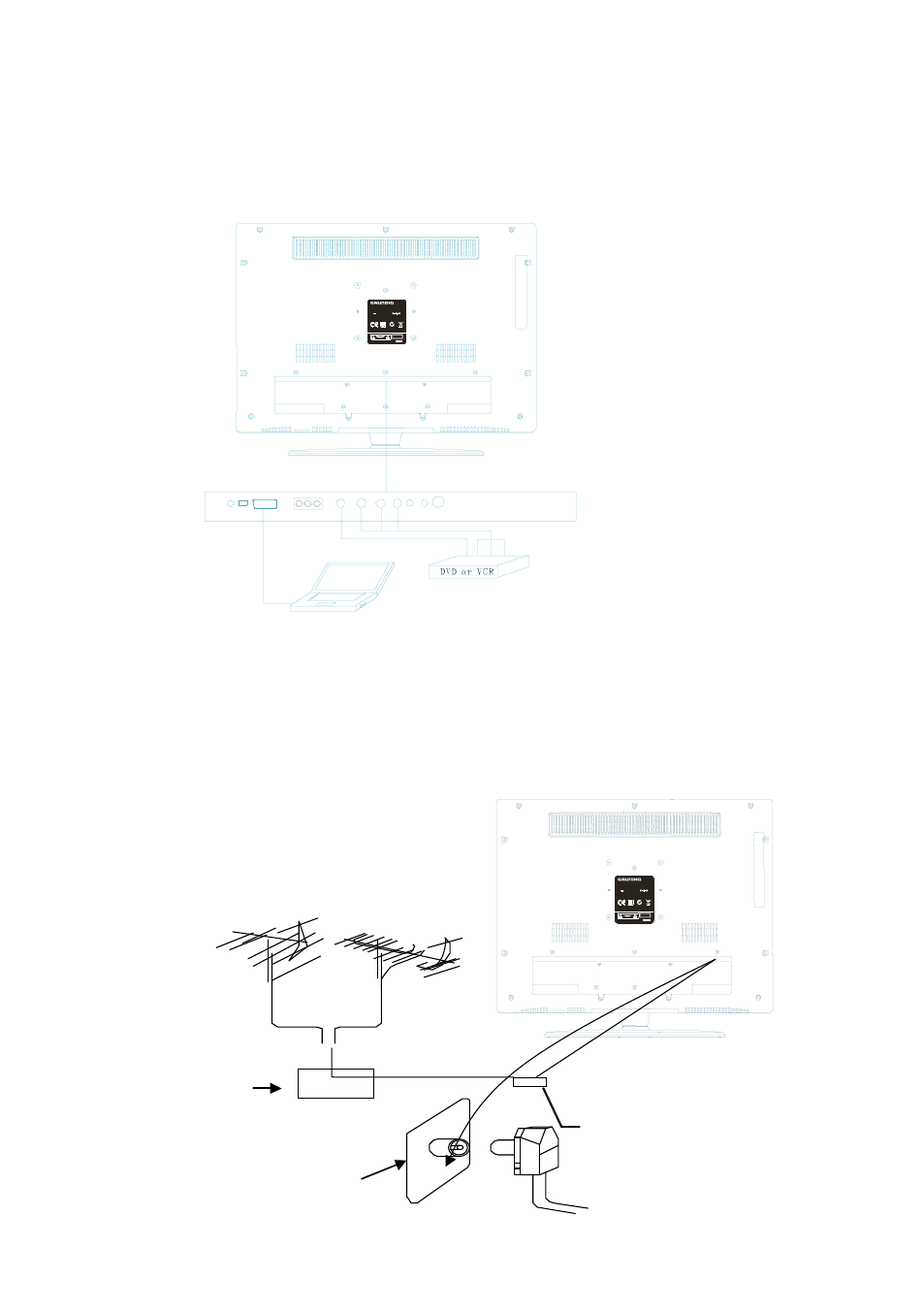

Connect the LCD TV/monitor
1. Connect the TV RF source to the RF IN port. TVRF signal including:
Receiving antenna /satellite TV/CATV net. You can use 75
coaxial
cable to connect the outdoor antenna.
Outdoor Antenna Connection:
Use 75
coaxial cable plug or 300-75 impedance converter to plug in
antenna input terminal on the rear of the cabinet.
Mixer
75Co-axis cable
VHF antenna
Input terminal of
antenna
UHF antenna
75 Co-axis cable
Antenna in jack
Co-axis antenna
plug
