-16-
H2669 Hobby Lathe
Selecting Turning
Tools

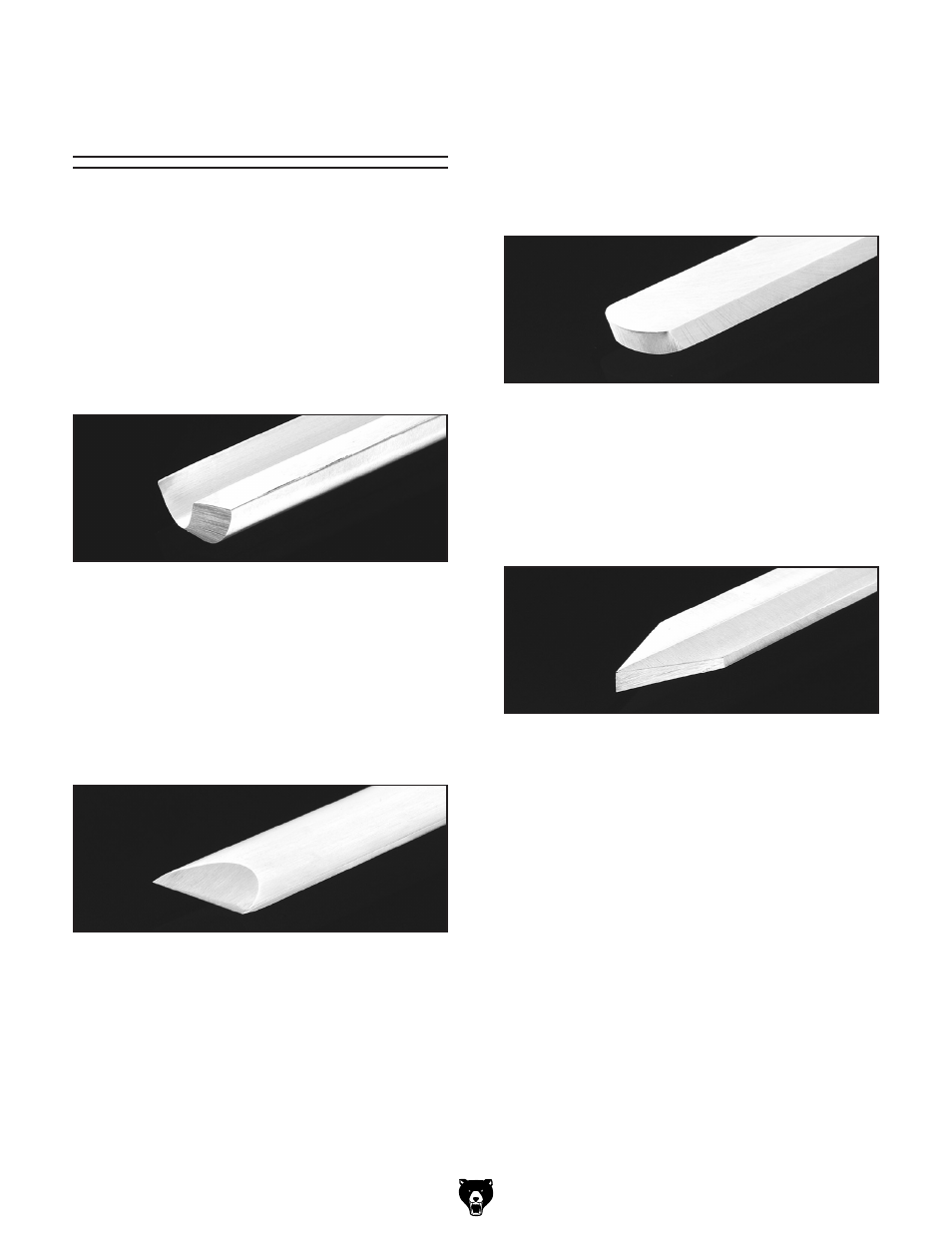

Lathe tools come in a variety of shapes and sizes
and usually fall into five major categories.
• Gouges—Mainly used for rough cutting,
detail cutting, and cove profiles. The rough
gouge is a hollow, double-ground tool with
a round nose, and the detail gouge is a hol-
low, double-ground tool with either a round or
pointed nose.
Figure 18 shows an example
of a gouge.
Figure 18. Gouge.
• Skew Chisel—A very versatile tool that can
be used for planing, squaring, V-cutting,
beading, and parting off. The skew chisel
is flat, double-ground with one side higher
than the other (usually at an angle of 20-
40˚).
Figure 19 shows an example of a skew
chisel.
Figure 19. Skew chisel.
• Scrapers—Mainly used where access for
other tools is limited, such as hollowing oper-
ations. This is a flat, double-ground tool that
comes in a variety of profiles (Round Nose,
Spear Point, Square Nose, etc.) to match
many different contours.
Figure 20 shows an
example of a round nose scraper.
Figure 20. Round nose scraper.
• Parting Tools—Used for sizing and cut-
ting off work. This is a flat tool with a sharp
pointed nose that may be single- or double-
ground.
Figure 21 shows an example of a
parting tool.
• Specialty Tools—These are the unique,
special function tools to aid in hollowing, bowl
making, and cutting profiles.
Figure 21. Parting tool.
