-8-
H2669 Hobby Lathe
Inventory
When you remove all parts from the shipping box,
you should have the following items:
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
NOTICE
Some hardware/fasteners on the inventory
list may arrive pre-installed on the machine.
Check these locations before assuming that
items from the inventory list are missing.
E

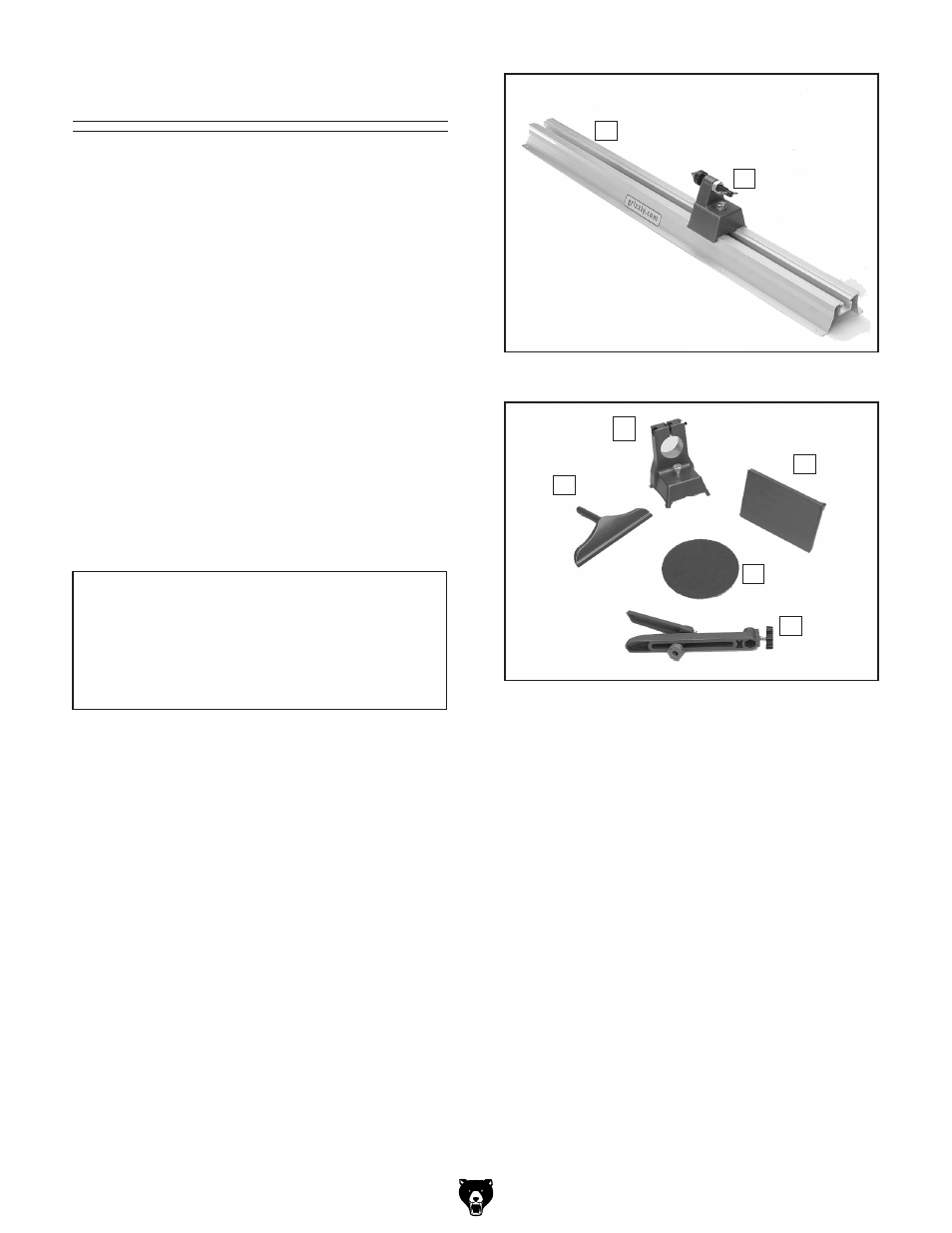

Figure 2. Box contents picture 2.
C
D
F
G
Box Contents (Figures 1 & 2) Qty
A. Lathe Bed ................................................... 1
B. Tailstock Assembly ..................................... 1
C. Toolrest ....................................................... 1
D. Headstock Assembly .................................. 1
E. Sanding Table ............................................ 1
F. Faceplate with Sanding Disc ...................... 1
G. Toolrest Base and Lockdown Lever Assy .. 1
Hardware and Small Parts (not shown)
•
Spur Center ................................................ 1
• Screw Center .............................................. 1
• Screw Center Set Screw ............................ 1
• Drill Adapter ................................................ 1
• Tap Screws M4 x 15 .................................. 8
• Hex Wrench 5MM ....................................... 1
• Open End Wrench 17/22MM ...................... 1
Figure 1. Box contents picture 1.
A
B
E
