G0588/G0591 12" Sliding Table Saws

-15-

3. Remove the control panel surrounding plate

and the cover.

4. Replace the 220V magnetic switch (Figure

7) with the 440V magnetic switch. Set the
dial on the new overload relay to 11A.

Note: The magnetic switch consists of the
magnetic contactor and the overload relay.

7. Rewire the motor per the diagram on the

inside of the motor wiring cover.

Overload

Relay Dial

Overload

Relay

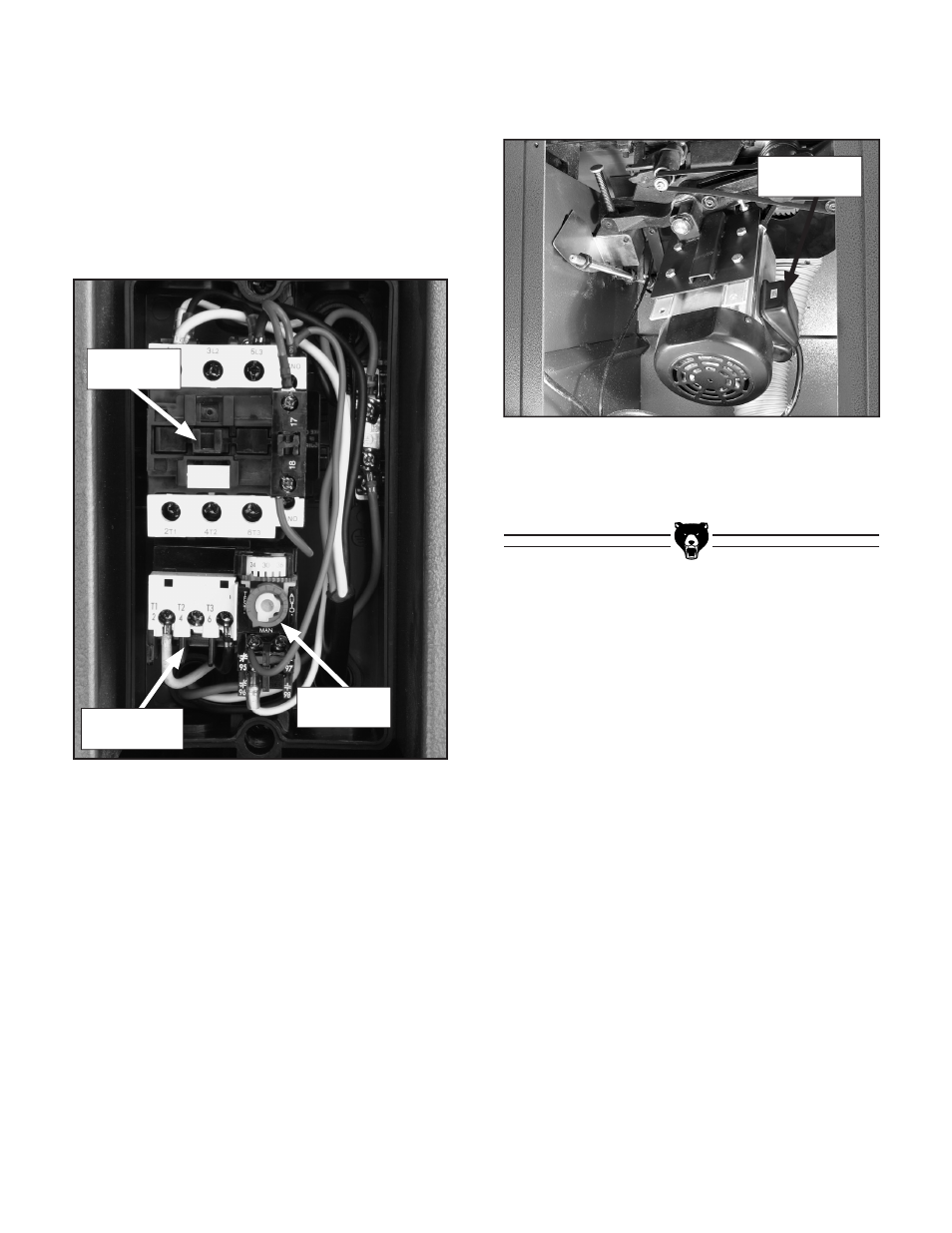

Figure 7. Magnetic switch.

6. Open the motor cabinet door and remove the

motor wiring cover (see

Figure 8).

Figure 8. Motor location.

Magnetic

Contactor

5. Replace the control panel cover, surrounding

plate, and the cover plate.

Motor Wiring

Cover
