The Model H8232 is designed to be oper-
ated at the following air pressures using
clean, dry, regulated, compressed air:
Nailer Operating Air Pressure
Framing ................................... 80–110 PSI
Finish ....................................... 60–100 PSI
Palm ........................................ 70–100 PSI
DO NOT exceed the 120 PSI maximum
operating pressure for your nailer.
Before using your new nailers, regulate the
air pressure to find the optimum setting
within the specified operating range. Start
by testing the nailer at a low setting, then
increase the air pressure as needed for
satisfactory results.
An in-line filter/lubricator/regulator unit can
be installed, as depicted in
Figure 2.
This filter/lubricator/regulator unit will
protect your tool from damaging water
build-up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Compressed Air
System
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may damage the
nailers and cause them to malfunc-
tion. To protect yourself from per-
sonal injury, DO NOT allow the air
pressure to exceed the recommended
pressure for these nailers!
Quick
Connector
Quick
Coupler
Air Hose
Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool

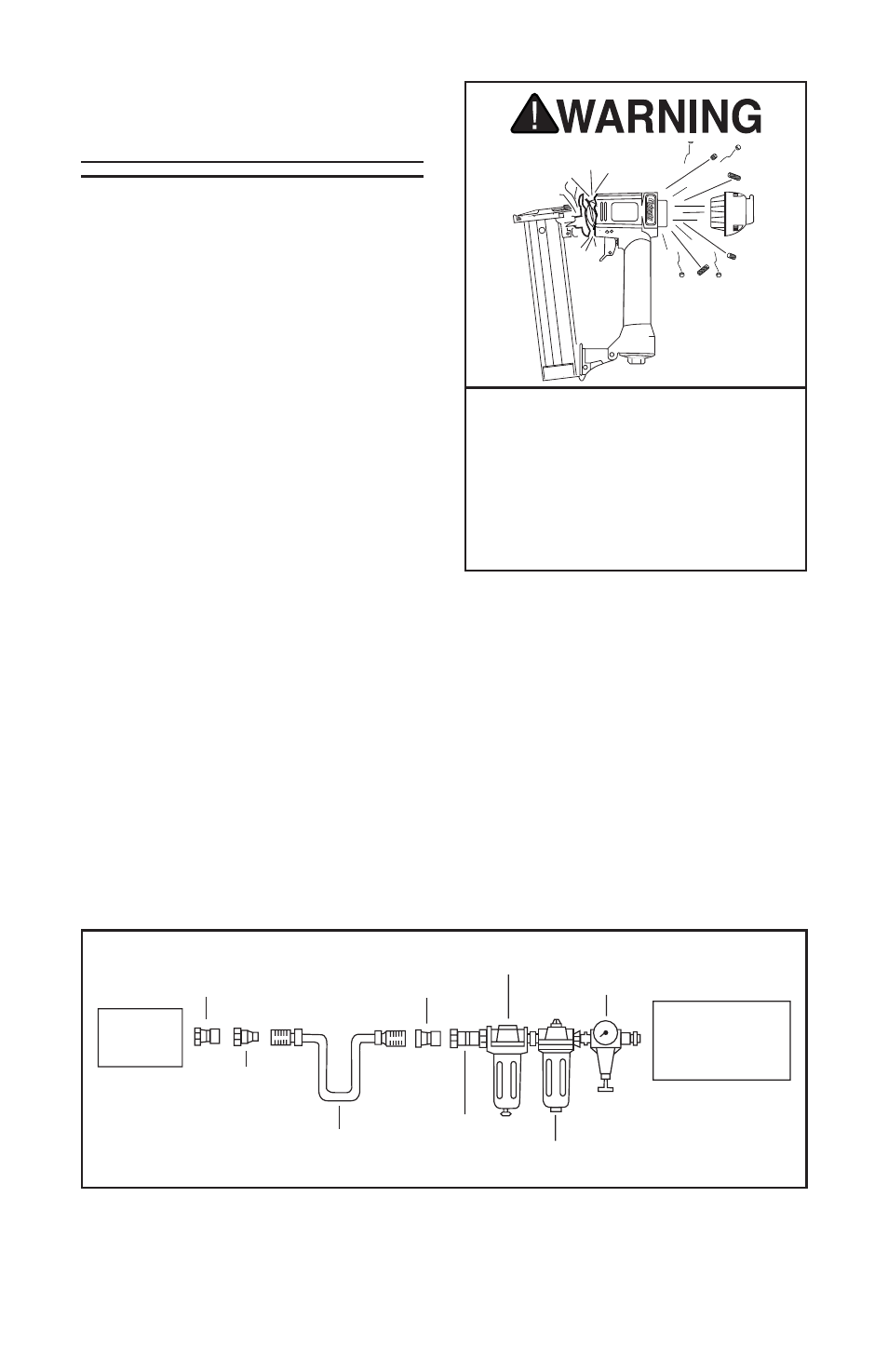

Figure 2. Typical filter/lubricator/regulator installation order.
