Model H8232 3-Piece Framing/Finish/Palm Nailer Kit -9 -
OperatiOnS
Loading
Framing nailer
Nail Size ...................... 1 ⁄
8
" Shank Diameter
Nail Strip Angle ............... 34º Clipped Head
Length..............................................2"–3
1 ⁄
2
"
Magazine Capacity ........................ 60 Nails
to load your framing nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Grip the nailer firmly and point the nose
down, then pull the magazine pusher
back until the catch lever engages, as
shown in
Figure 3.
3. Insert a strip of nails, pointed-end
down, into the magazine as shown in
Figure 4.

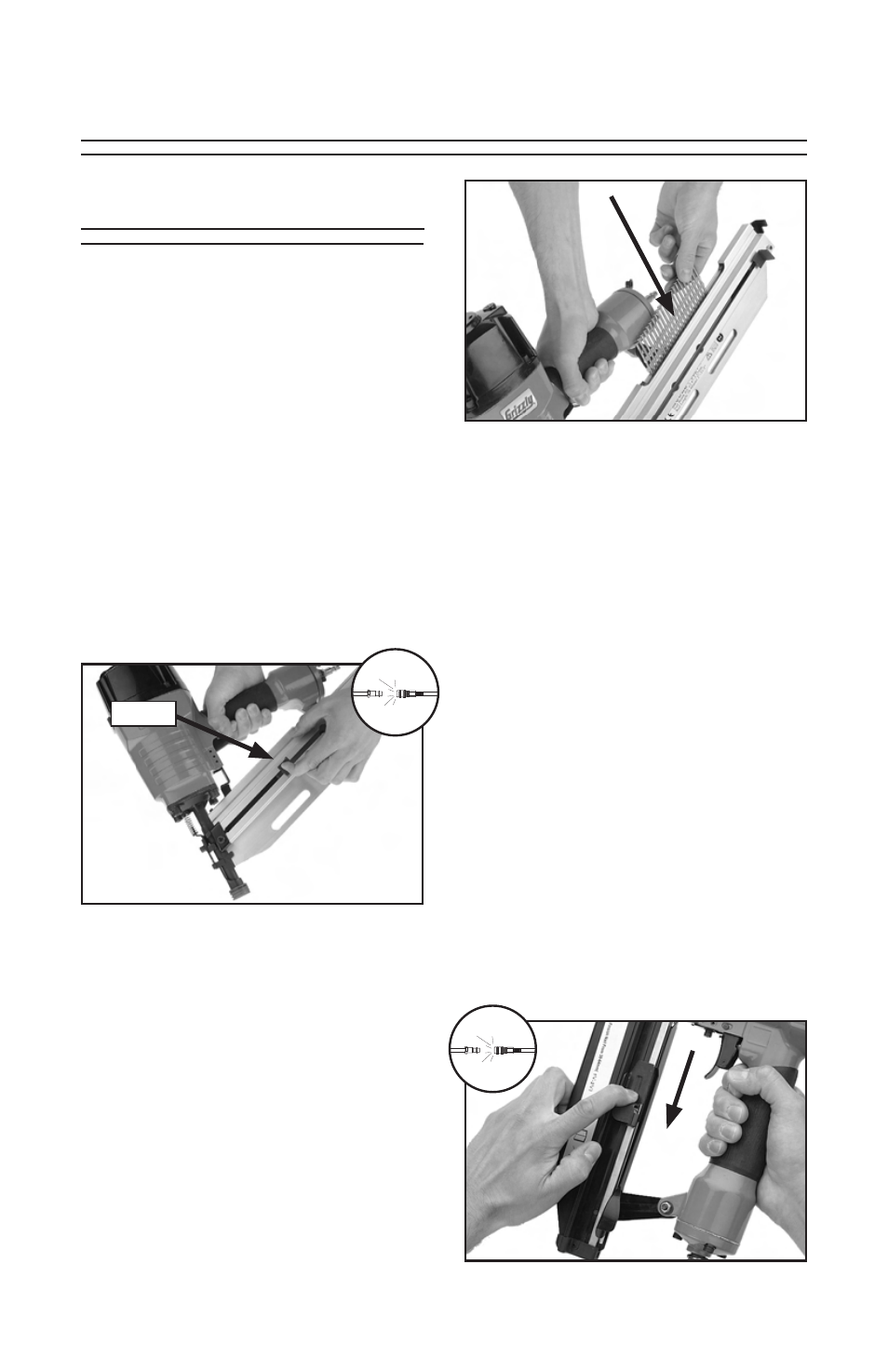

Figure 3. Sliding magazine pusher back
and engaging catch lever.
Pusher
4. Tilt the nailer to slide the nails all the
way down to the nose.
5. With one hand on the magazine pusher
for control, release the magazine catch
and slowly allow the pusher to press
against the nails.
Finish nailer
Nail Size ..................................... 16 Gauge
Nail Length ...................................1
1 ⁄
4
"–2 1 ⁄
2
"
Magazine Capacity ........................ 74 Nails
to load your finish nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Grip the nailer firmly, and pull the
magazine pusher back until the catch
lever engages, as shown in
Figure 5.
Figure 4. Loading nails into the magazine.
Figure 5. Sliding magazine pusher back.
