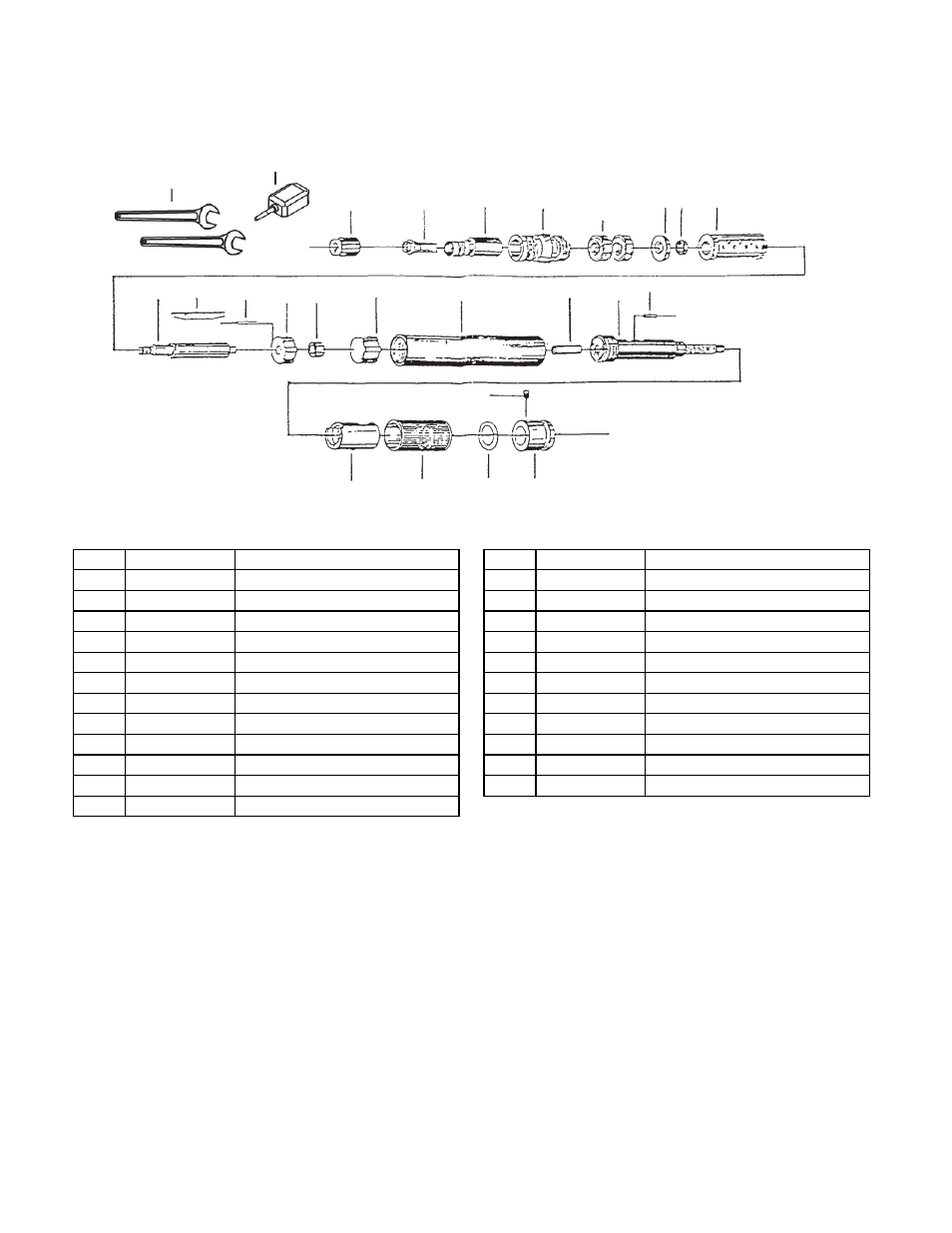

H0591 Parts Breakdown and List

��

��

��

��

��

��

��

�

�

�

�

��

��

��

��

��

��

�

�

�

�

�

��

REF

PART #

DESCRIPTION

REF

PART #

DESCRIPTION

1

PH0591001

HOUSING PLUG

14

PH0591014

CYLINDER

2

PH0591002

REAR END HOLDER

15

PH0591015

ROTOR BLADES

3

PH0591003

SCREW

16

PH0591016

ROTOR

4

PH0591004

O-RING

17

PH0591017

LATERAL

5

PH0591005

BUSHING

18

PH0591018

SPACER

6

PH0591006

SLIDING KNOB

19

PH0591019

BALL BEARING

7

PH0591007

PIN

20

PH0591020

SPINDLE

8

PH0591008

INTAKE STEEL TUBE

21

PH0591021

FRONT COVER

9

PH0591009

SLEEVE

22

PH0591022

COLLET

10

PH0591010

INTAKE PLATE

23

PH0591023

COLLET NUT

11

PH0591011

BALL BEARING

24

PH0591024

WRENCH SET

12

PH0591012

BEARING PLATE

25

PH0591025

OIL BOTTLE

13

PH0591013

PIN
