Model h0591 micro die grinder, Instruction sheet, Introduction

background image

Introduction

This Micro Die Grinder allows extreme flexibility
in all kinds of environments. No-load speed is
56,000 RPM and requires 90 PSI of air pressure
with 7 CFM of compressor capacity. Collet size
is

1

8

".

Inventory

A. Micro Die Grinder ....................................... 1

B.

1

4

" NPT Air Fitting ....................................... 1

C. Collet Wrenches ......................................... 2

D. Oil Bottle ..................................................... 1

Operation

Insert your

1

8

" tool bit into the collet and tighten

with the collet wrenches provided. Make sure
the tool you use is rated for 56,000 RPM or less.
Connect air fitting to your regulated air source.

MODEL H0591

MICRO DIE GRINDER

INSTRUCTION SHEET

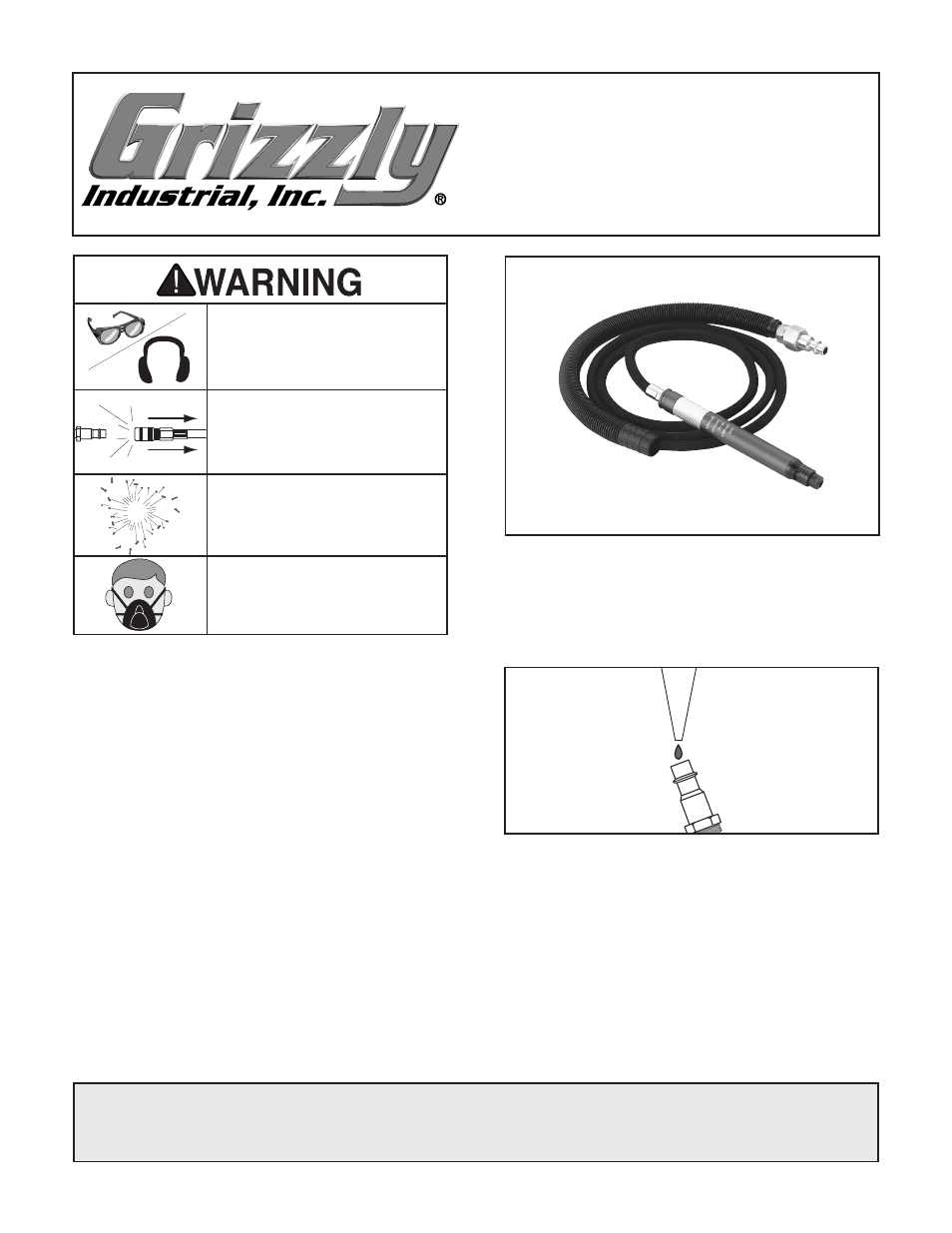

Figure 1.

Model H0591.

Figure 2.

Lubricating directly into air fitting.

If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.

COPYRIGHT © MARCH, 2006 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8127 PRINTED IN TAIWAN

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 90 PSI!

Only use cutters rated for

56,000 RPM or less!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

Micro die grinder MUST have 3-4 drops of oil
directly dropped into the air fitting before each use
as shown in

Figure 2.

RESPIRATORY HAZARD!

Grinding produces fine

dust. Wear the appropriate

protection during use!
