Installation
Dual Burner Outdoor Cooktop
7
WARNING
PRODUCT STORAGE
When storing the LP burner indoors,
disconnect the LP tank. Store the tank
outdoors in a well ventilated area.
Do not store spare LP tanks near or below
the burner installation.
For Installation with a 27" LP Gas Grill
featuring Quick Disconnect couplings.
• Completely close the main valve on the LP
tank supplying the grill.
• Apply joint compound to the threaded end
of the cooktop gas inlet.
• Tighten the 1/2" NPT x 3/8" flare fitting to
the cooktop gas outlet. Do not use threading
compound on the male threads.
• Attach hose to end of fitting and tighten.
NOTE: To connect the Quick Disconnect
couplings, pull back and hold the outer sleeve
of the female coupling while inserting the
male hose end. Release the outer sleeve to
lock. To test the connection, firmly grasp each
part and attempt to pull apart. Once locked,
they should not separate.
• Route the cooktop LP hose through the
panel bushing on the right side of the cart.
• Insert the male hose end from the cooktop
burner into one end of the quick disconnect
tee.
3
Step
Provide
Gas
Supply
LP GAS MODELS
Go to Step 3A
For Natural
Gas Model
Connections
For installation with a 27" LP gas grill that
does not feature the new Quick Disconnect
coupling.
• Completely close the main valve on the LP
tank supplying the grill.
• Apply joint compound to the threaded end
of the cooktop gas inlet.
• Tighten the 1/2" NPT x 3/8" flare fitting to
the cooktop gas outlet. Do not use threading
compound on the male threads.
• Attach hose to end of fitting and tighten.
• Route the hose through the hole with
protective bushing on the side of the grill
cart.
• Attach the hose ends from the grill and the
cooktop to the ends of the supplied 3/8"
flare tee as shown.
• Attach the original LP Regulator hose
assembly to the 3/8" flare tee as shown.
• Go to “Test for Leaks” Step 4.
• Attach the hose from the grill to the opposite
female end of the quick disconnect tee.
• Secure the bottom male end of the quick
disconnect tee to the female quick disconnect
LP tank regulator assembly.
• Go to “Test for Leaks” Step 4.

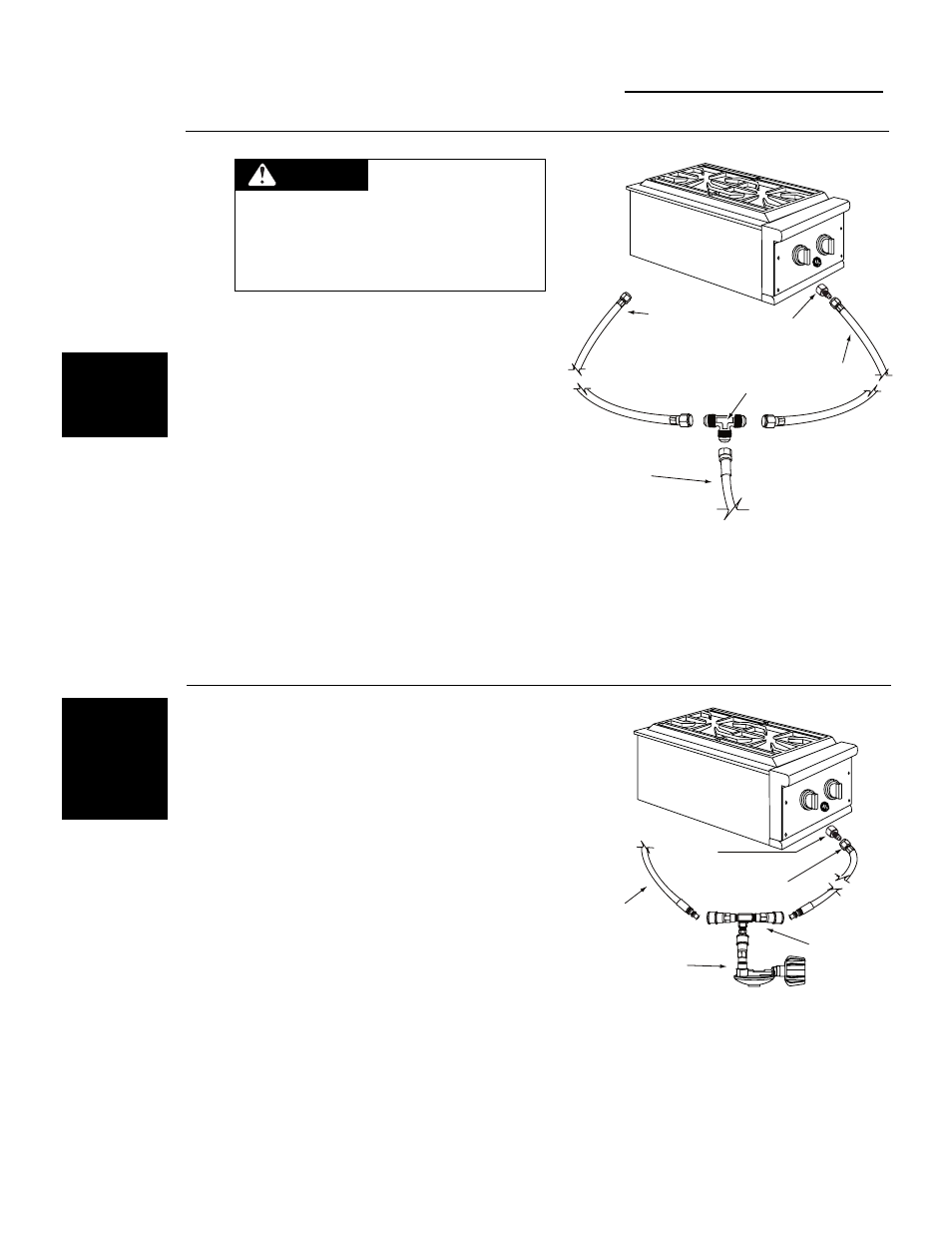

LP Connection
with ZX27QDC
Kit For Quick
Disconnect
Coupling
System
3/8" Flare Tee
From
Regulated
L.P. Tank
To Cooktop
To Manifold
of Grill 1/2" NPT x
3/8" Flare Fitting
Quick
Disconnect
Tee To L.P.
Regulator
To Manifold
of Grill
24" Quick
Disconnect Hose
1/2" NPT x
3/8" Flare
Fitting
