4
Design Information
Dual Burner Outdoor Cooktop
• These cooktops are designed for outdoor use
only. Do not locate the cooktop in a building,
garage or other enclosed area.
• Ensure that fresh air ventilation is adequate.
• Consider exposure to wind and proximity to
traffic paths.
• The minimum clearances to combustibles
must be maintained at all times.
Choosing
the Location
• Phillips head screwdriver
• Two adjustable pipe wrenchs
• 7/16" socket with extension
• Level
• Pliers
• Flat blade screwdriver (3/32" blade) Tools &
Materials
Required
(Not supplied)
• Do not install an outdoor cooktop below
overhead unprotected combustible
construction.
• The installation must conform to local codes
or in the absence of local codes, with the
national fuel gas code, ANSI Z223.1a, latest
edition.
• Open the box and remove packaging.
• Remove the cover and grate.
• Remove white plastic tie-downs on burners.

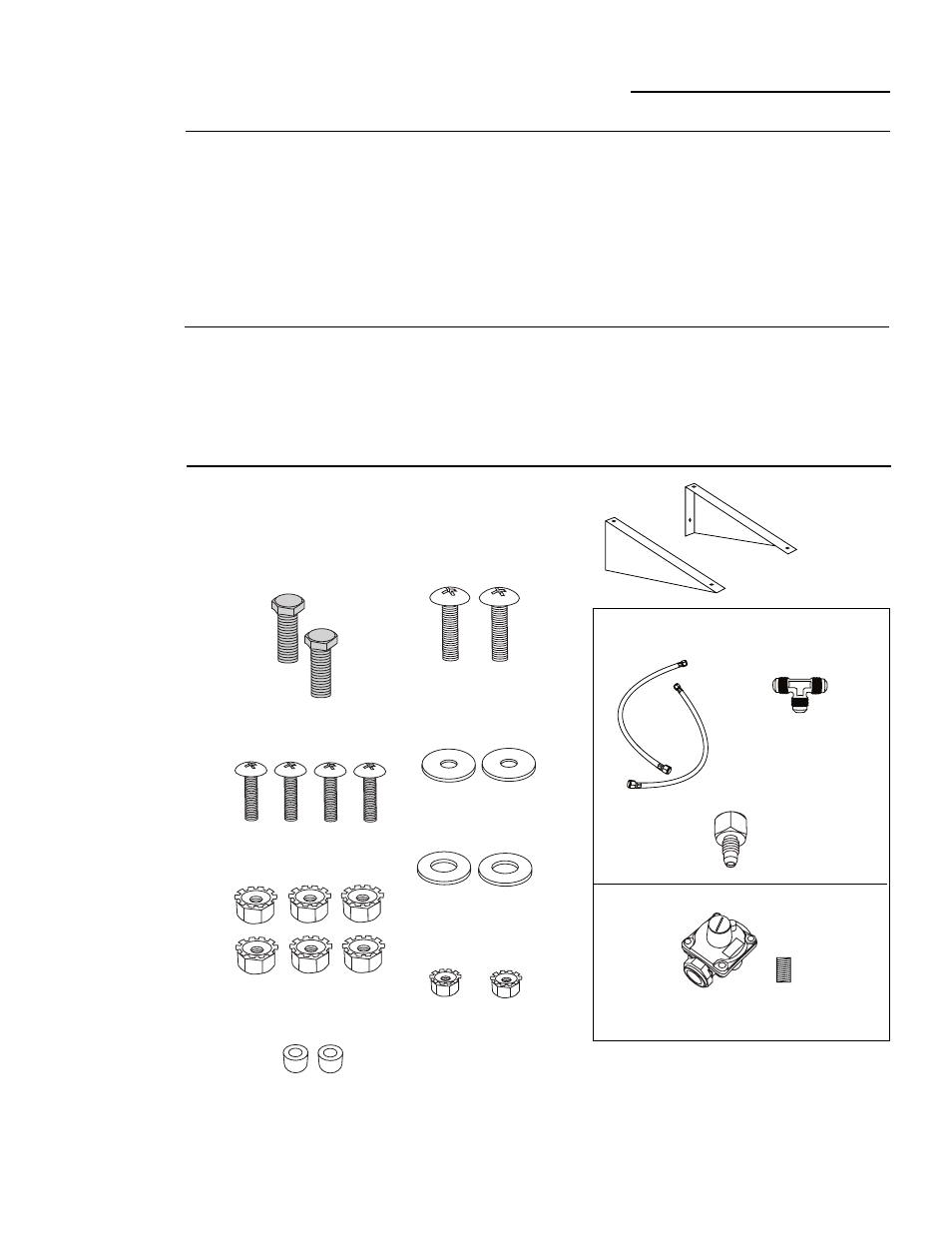

• Open the hardware accessory carton and
check contents.
Step
1
Remove the
Packaging
1/4 - 20 x 1/2" Bolts
Count 2
10 - 24 x 3/4" Screws
Count 2
10 - 24 x 3/8" Screws
Count 4
#10 Flat Washers
Count 2
10 - 24 Lock Nuts
Count 6
1/4 - 20 Lock Nuts
Count 2
1/4" Flat Washers
Count 2
Support Brackets
Count 2
LP MODELS
See Product to Determine Parts Used
3/8" Flare Tee and
Two 3/8" x 3/8" Flare Hoses
(On Models So Equipped)
For Natural Gas Installations:
• Appropriate gas line to reach installation
location
• Pipe joint sealant, approved type and
resistant to LP gases
• Manual shut-off valve
# 10 x 1/4" Thick Round Spacers
Count 2
NATURAL GAS MODELS
Regulator and
1/2" NPT Close Nipple
3/8" NPT x 1/2"
Flare Fitting
