10
Installation
Dual Burner Outdoor Cooktop

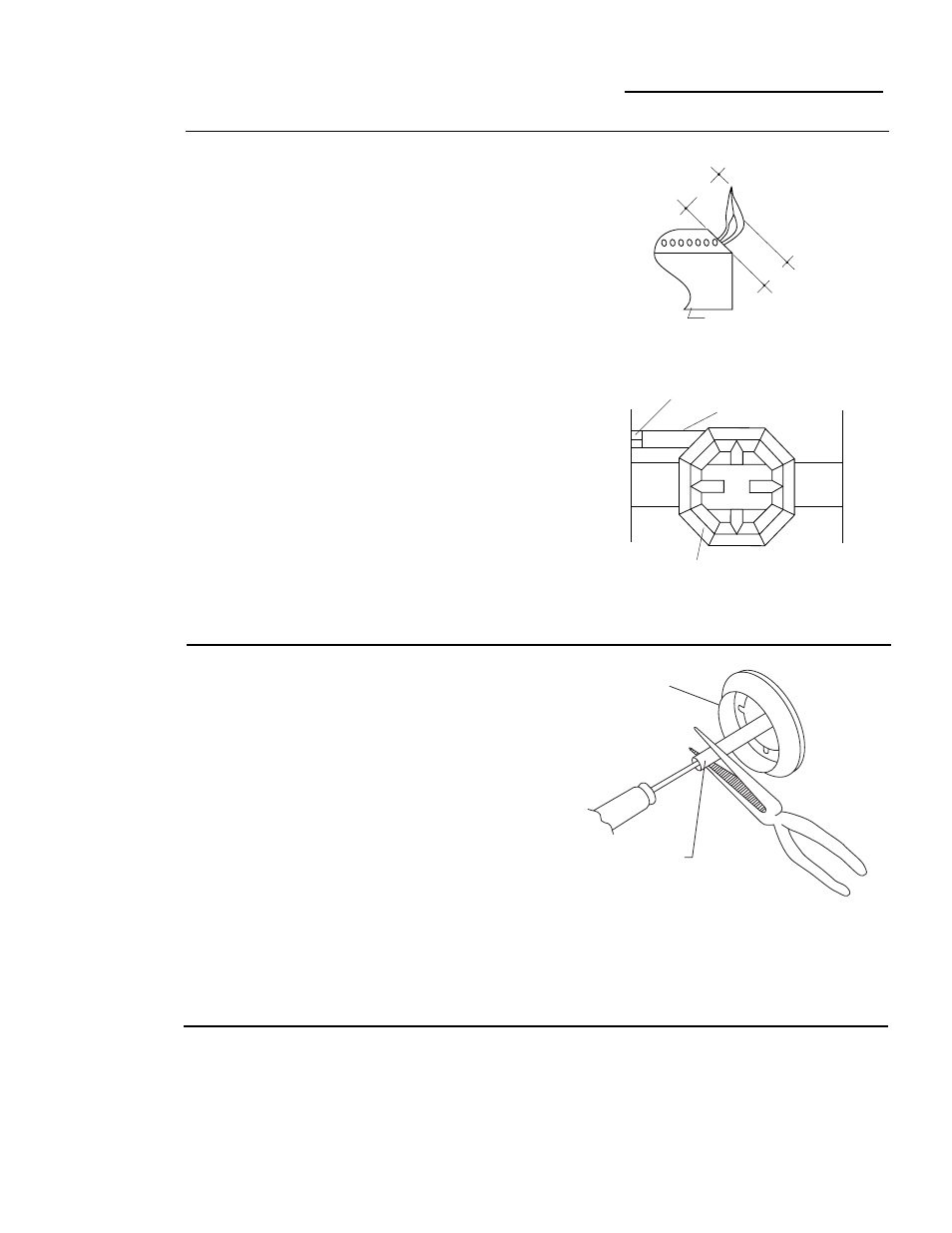

Adjusting
the Burners
Step 6 Adjustments should not be required, unless
vibration during transit or variations in local
gas supply make minor adjustments necessary.
Adjustments must be made by a qualified
technician at the time of installation. Extreme
care should be used if adjustments are made
after installation.
• Push and turn the burner control knobs to
the “LITE” position. Push and turn the small
ignitor knob clockwise.
• Flames should be blue and stable with no
yellow tips, excessive noise or lifting from the
burner. If any of these conditions exist, turn
control to off and check air shutter and
burner ports for debris or spider webs.
TO ADJUST:
• If the flame is yellow, indicating insufficient
air, turn the air shutter to allow more air to
the burner.
• If the flame is noisy and tends to lift away
from the burner, there is too much air. Turn
the air shutter to reduce the opening.
Low setting Adjustment:
Minor adjustments may be required due to
fluctuations in local gas pressure. Adjustments
to increase or decrease gas flow may be
necessary.
• Turn the control knob to the lowest setting,
all the way counter-clockwise.
• Remove the knob by pulling straight out.
• Insert a thin-blade flat screwdriver into the
valve shaft and hold. (3/32" blade width
recommended.)
• Grip the shaft with pliers and turn counter-
clockwise to lower the flame, or clockwise to
increase the flame.
• When the desired setting is made, replace the
knob and turn burner off.
WARNING:
Always check the low flame size for stability. A
burner flame which is too small may go out or
be extinguished easily. This can cause un-
burned gas to escape and cause a hazardous
condition.
Finalize
Installation • Place aeration pan over the burners.
• Place the cast iron grate over the opening.
• Place cover over the top when not in use.
3/8"
1-1/2" Proper Flame
Burner
Burner
Venturi Tube
Air Shutter
Valve Stem
Bezel
