Grizzly G92490 - Manual (Page 18)

"-)"
<.'). &'m(,7Zai9g^kZ

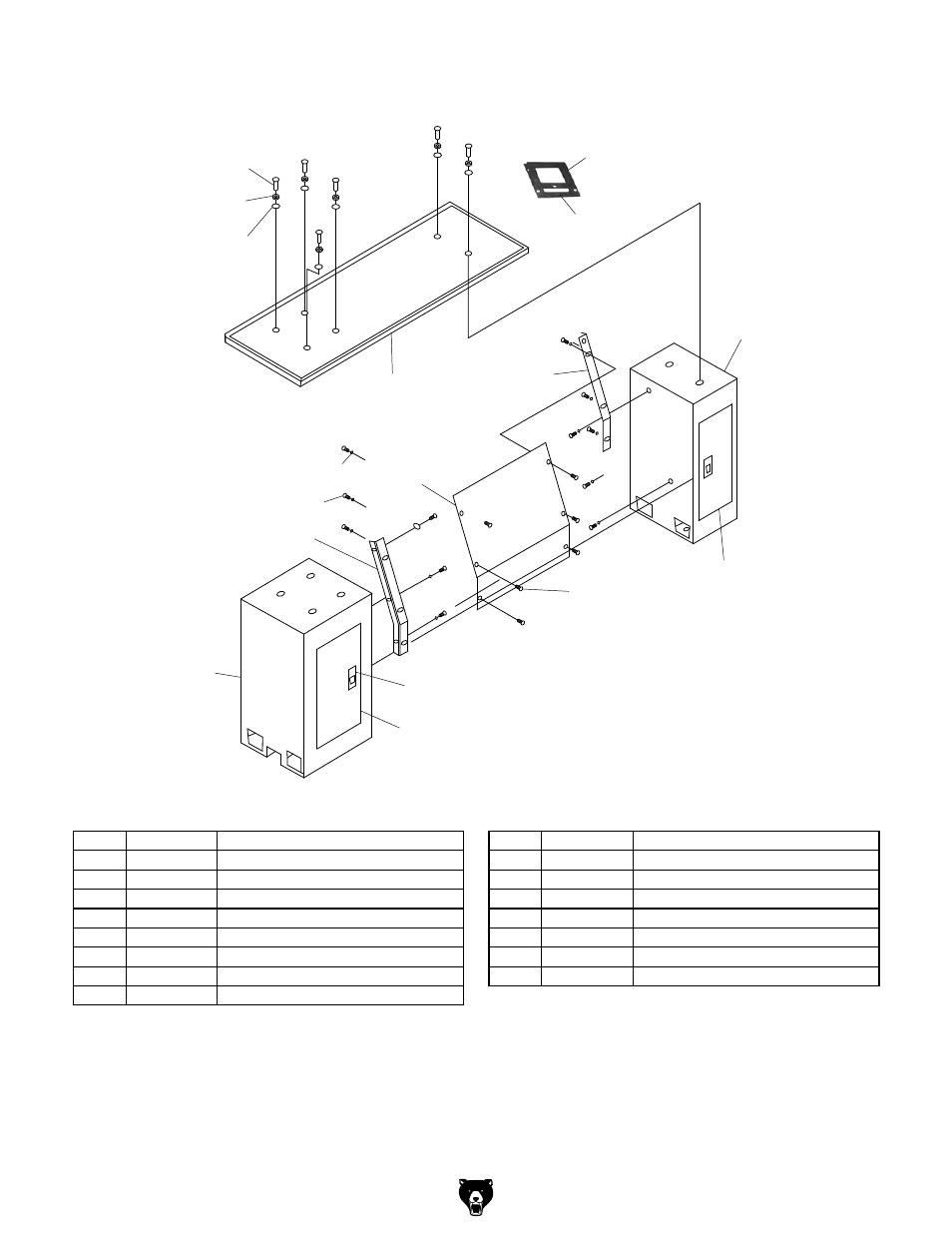

Cabinet Stand
#""#
#""$
#""%
#""&
#""'
#""(
#"")
#""*
#""+
#"#"
#"##
#"#$
#"#%
#"#%#
#"#&
#"#'
#"#(
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001 P92491001 CABINET LEFT 1010 PB33M HEX BOLT M12-1.75 X 50
1002 P92491002 CENTER PANEL BRACKET LEFT 1011 P92491011 CENTER PANEL BRACKET RIGHT
1003 PS68M PHLP HD SCR M6-1 X 10 1012 P92491012 CABINET RIGHT
1004 P92491004 CENTER PANEL 1013 P92491013 CABINET DOOR LEFT
1005 PW03M FLAT WASHER 6MM 1013-1 P92491013-1 DOOR LATCH
1006 PS68M PHLP HD SCR M6-1 X 10 1014 P92491014 CABINET DOOR RIGHT
1007 P92491007 CHIP PAN 1015 P92491015 CHIP PAN RUBBER GASKET LEFT
1008 PW06M FLAT WASHER 12MM 1016 P92491016 CHIP PAN RUBBER GASKET RIGHT
1009 PLW05M LOCK WASHER 12MM
