The Magnum 14E units comply with the IEEE 802.3u (100BASE-TX and 100BASE-
FX) specification for 100 Mb/sec traffic via shielded (STP) or unshielded twisted pair (UTP)
segments.
The Link Pass-Through feature is especially
desirable for use in managed networks, and is
standard in all 14E’s. Magnum 14E-ST models
are equipped with one multi-mode fiber-ST and
one RJ-45 connector for connection into
100BASE-FX segments.

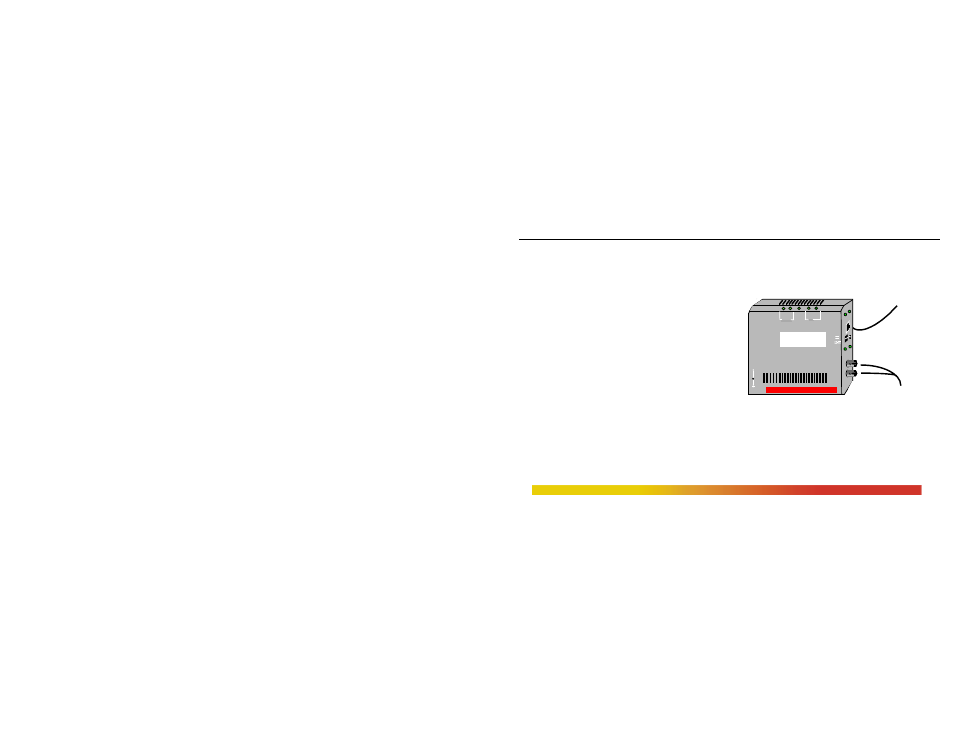

14Es with ST integrates 100BASE-TX and FX networks, with fiber ST connector
Twisted Pair
(100BASE-TX)
Fiber Multi-mode
(ST-type)
(100BASE-FX)
Magnum 14E
Media Converter
