Cabinetry

Built-In Ovens

8

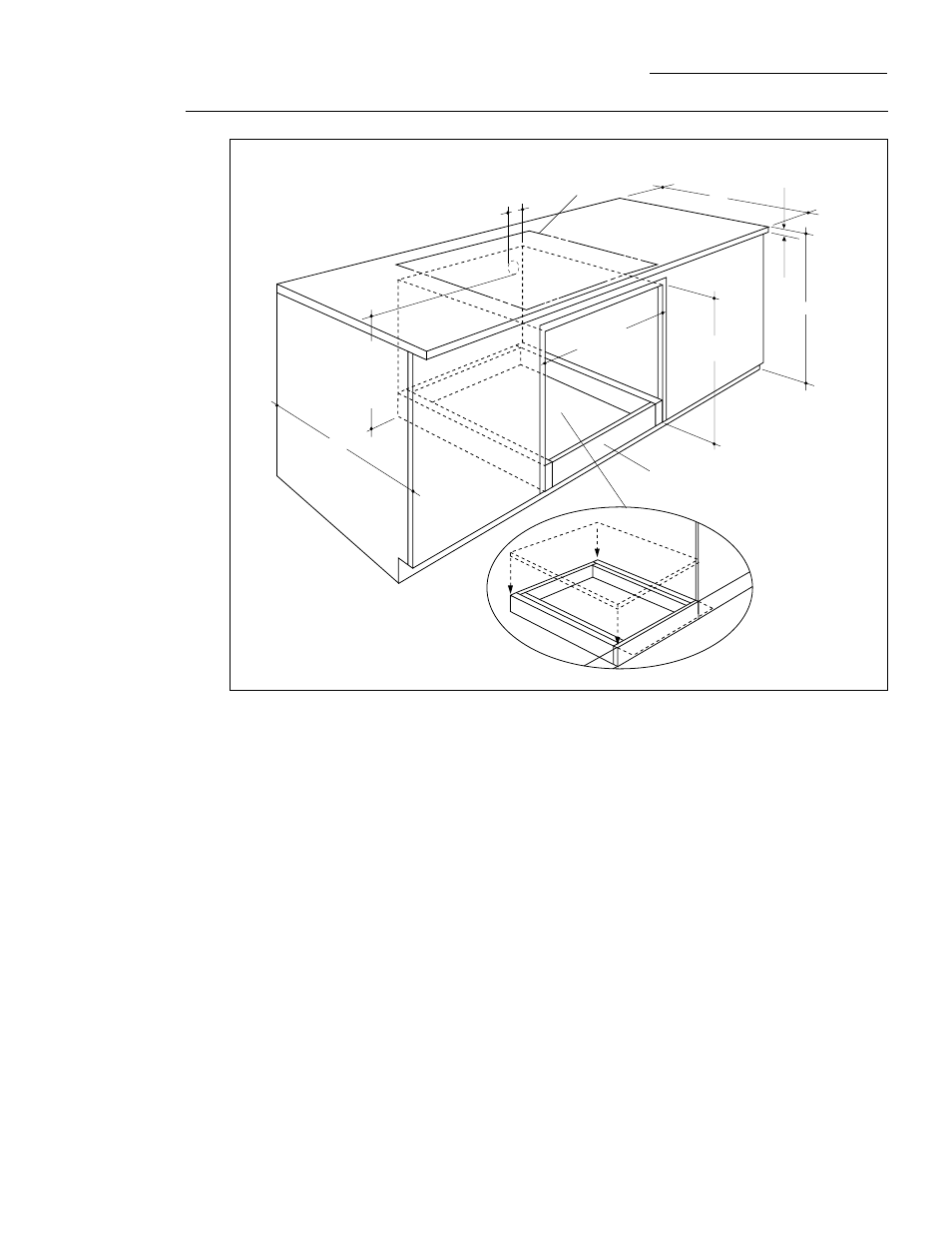

Single oven
installed
below a
countertop

See Cooktop
Installation Instructions
For Cutout

27-1/4" Min.
27-5/16" Max.

3/4" Support Platform and 2 x 4‘s
Required, Must Support 150 lbs.

Junction
Box
22" Min.
Above
Platform
Floor

24" Min.

25"

36" Min.

1-1/2" Cabinet Top

28-1/2" Min.
28-5/8" Max.

5"

These ovens can be installed below a countertop.
The rough opening of the base cabinet should be:
• Depth–23-1/2" min. from inside back to front of

cabinet frame.

• Width–28-1/2" min., 28-5/8" max.
• Height–27-1/4" min. 27-5/16" max.
All Monogram single ovens require 11/16" on both
sides. Allow 1" min. for top and bottom overlap.
• Oven overlaps will conceal raw edges.

Locate the junction box:
• Within 5" of the right side of the opening.
• 22" min. above the support platform.
• Gas or electric cooktops may be installed over

this oven. See cooktop instructions for cutout
dimensions. See label on the top of the oven for
approved cooktop models.
