GE Monogram ZET737BW - Manual (Page 6)

A
Cabinetry
Built-In Ovens
6
Framed cabinet
single oven
DIMENSIONS
A Cabinet Width 30" Min.
B Cutout Width 28-1/2" Min., 28-5/8 Max.
C Cutout Height 27-1/4" Min./27-5/16" Max.
D Cutout Depth 23-1/2" Min.
E Cutout Location 32-1/2" Recommended
H Overall Height 28-1/4"
W Overall Width 29-3/4"

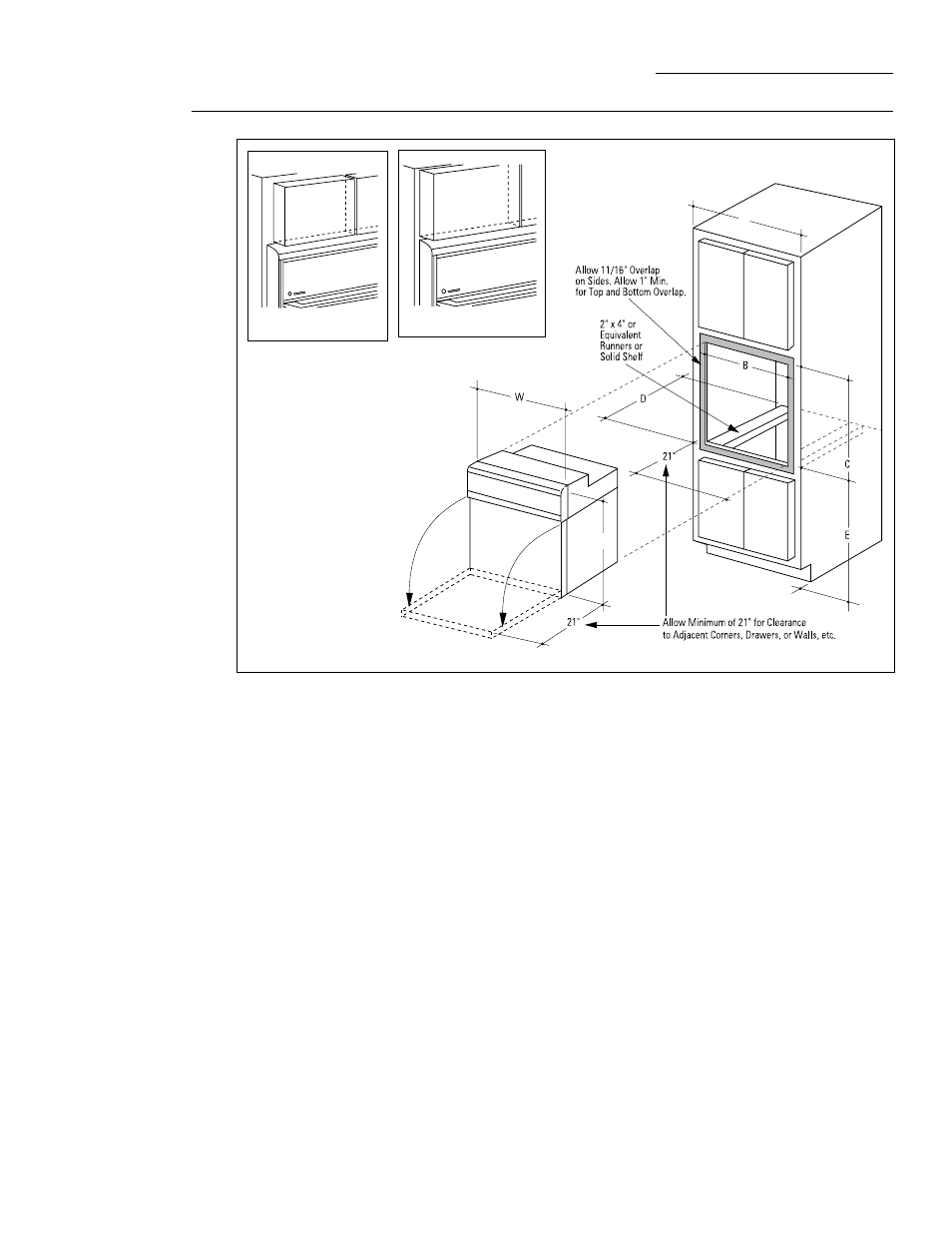

Use the information in this dimension drawing for
typical framed cabinets. The front face of the oven
will be flush with cabinetry doors or drawers.
Order a 30" single oven cabinet.
Rough opening for single oven must be:
• Depth—23-1/2" min. from inside back to front of
cabinet frame.
• Width—28-1/2" min., 28-5/8" max.
• Height—27-1/4" min. 27-5/16" max.
• 32-1/2" from floor is recommended to bring oven
floor to countertop height.
• All Monogram ovens require 11/16" overlap on both
sides. Allow 1" min. for top and bottom overlap.
• Oven overlaps will conceal all raw edges.
Front Framed
Partial Overlay Door Front Framed Full
Overlay Door
