Model g0563/g0564 (Mfg. since 10/11)
-5-
Machine features
1. sanding spindle table
2. sanding spindle
3. Belt access door
4. Emergency stop switch
5. Back stop
6. dust port
7. Motor
8. angle adjustment & lock handle
9. Belt tracking adjustment
10. Vertical adjustment lock handles
11. Vertical adjustment handwheel
12. storage Compartment
13. sanding table
14. on/oFF switch
15. table lock levers
16. spindle table adjustment lock handle

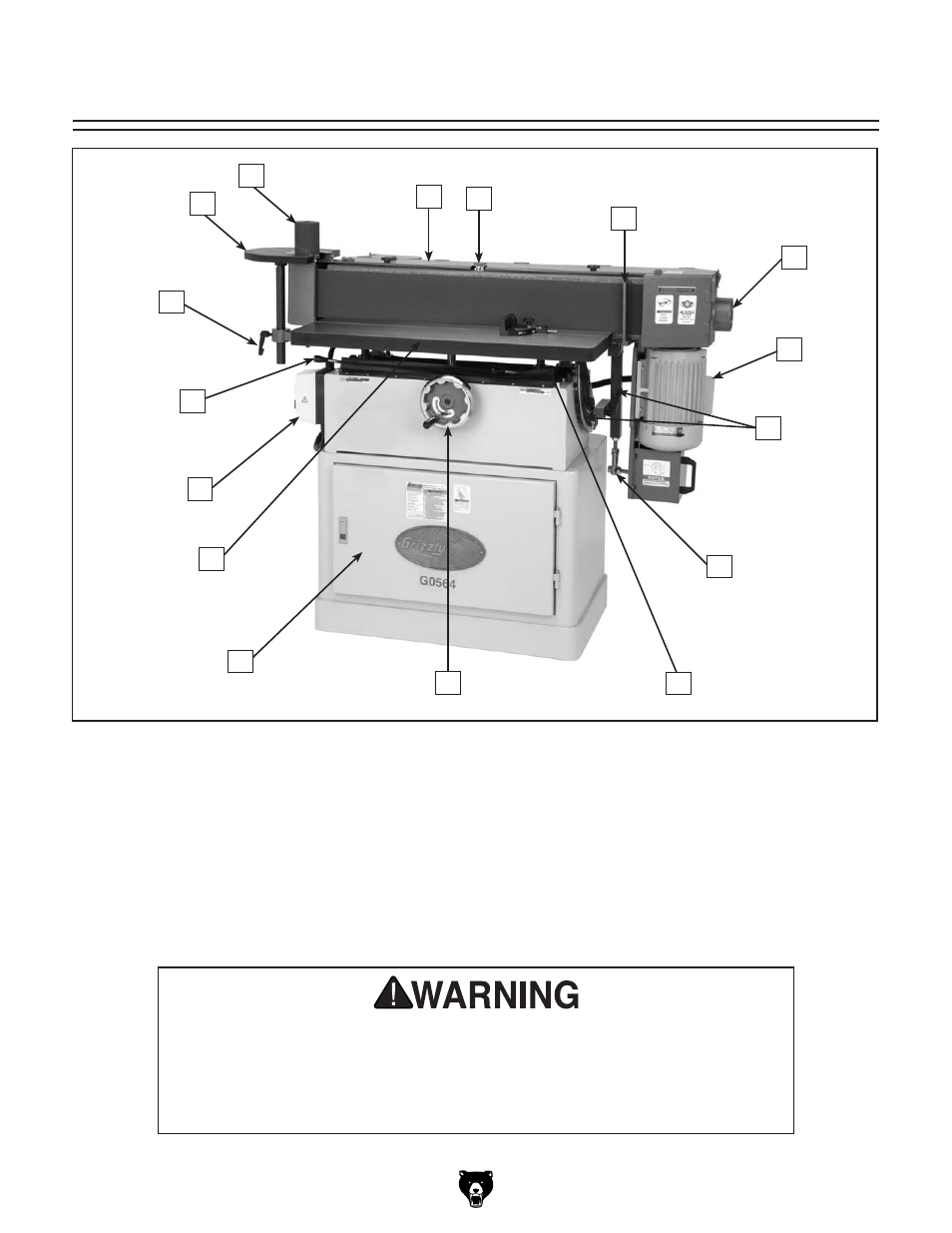

figure 1. Main Features of the g0563/g0564.
2
1
3
5
7
6
8
9
10 11
12
13
14
15
16
4
for your Own Safety read Instruction Manual before Operating Saw
a) Wear eye protection.
b) Support workpiece with miter gauge, backstop or worktable.
c) Maintain 1 ⁄
16
" in maximum clearance between table and sanding belt.
d) avoid kickback by sanding in accordance with the directional arrows.
