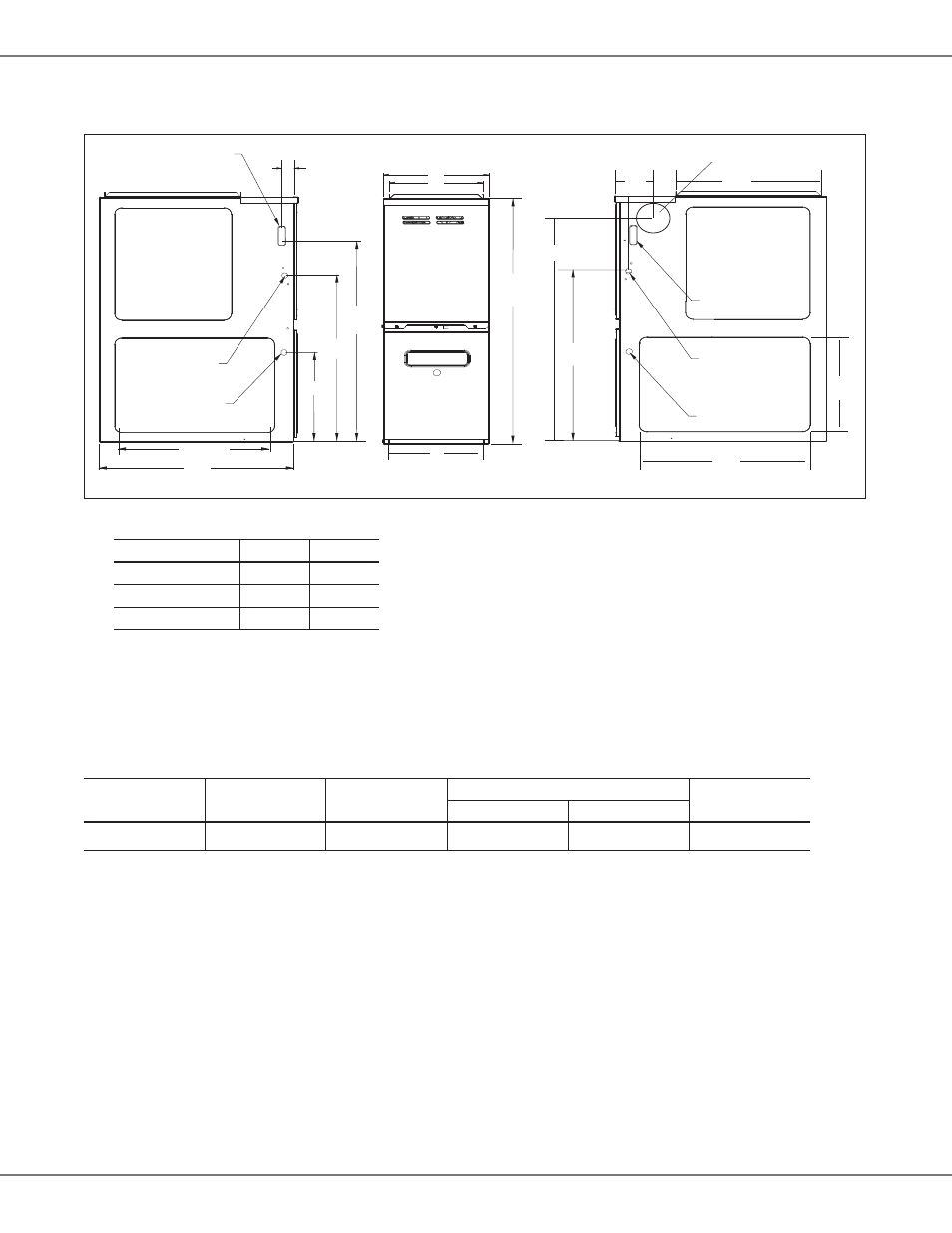

GHS8 D
iMenSionS
Notes
• Line voltage wiring can enter through the right or left side of furnace.
Low-voltage wiring can enter through the right or left side of furnace.
• Conversion kits for high-altitude (7,000+ ft) natural gas operation are available.
Contact your Goodman distributor or dealer for details.
28”
A
B
1-3/4”
33-3/8”
23-5/16”
1-7/16”
23 3/4”
Alt. Gas Inlet
High Voltage Inlet
Low Voltage
13-1/4”
20”
27-7/8”
Alt. Gas Inlet
Alt. High Voltage
Alt. LowVoltage
High-Voltage Inlet
Low-Voltage Inlet
Low Voltage
High Voltage
Gas Inlet
23⁵⁄₁₆”
28½”
20”
13¼”
33⅜”
Gas Inlet
23¾”
28”
Supply
B
A
1¹³/₁₆”
30½”
➤
➤
4⅝” 19½”
➤
➤
23” ➤
➤
15”
➤
➤
Return
B ➤
➤
Alt. Flue Outlet — Horizontal Left
➤
M
iniMuM
c
learanceS to
c
oMBuStiBle
M
aterialS
Sides Rear Front¹
Vent²
Top
SW B
1” 0” 3” 6” 1” 1”
¹ 24” clearance for serviceability recommended.
² Single Wall Vent (SW) to be used only as a connector. Refer to the latest editions of the National Fuel Gas Code NFPA 54/ ANSI Z223.1 (in the USA) and
the Canada National Standard of Canada, CAN/CSA B149.1 and CAN/CSA B142.2 (in Canada).
Note: GHS8 models approved for line contact in the horizontal position.
Model A B
GHS80403A** 14” 12½”
GHS80604B** 17½” 16”
GHS80805C** 21” 19½”
