Global Machinery Company REDEYE LS250TS2000W User Manual

Page 11

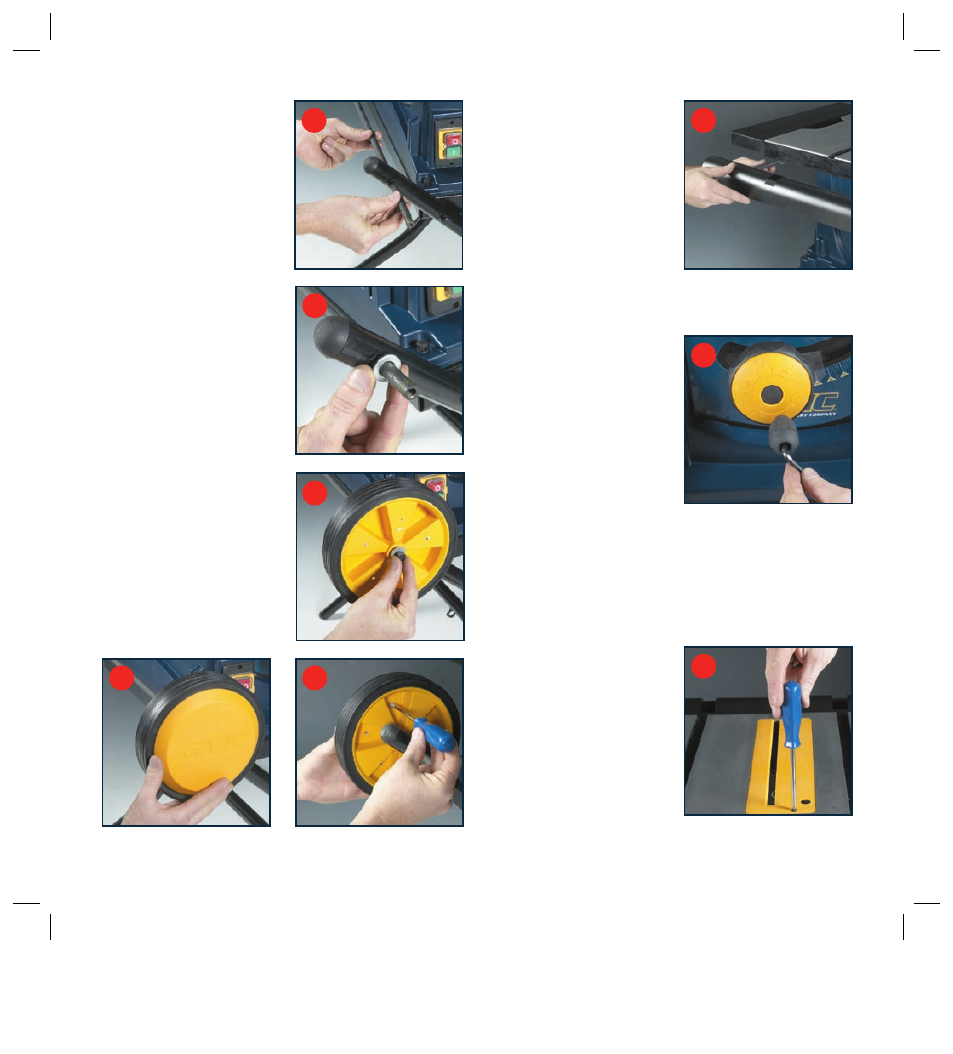

Attaching the wheel axle

1. Remove the retaining bolts

and washers from the ends

of the axle.

2. Slide the wheel axle

through the holes in the

2 stand legs on the left

hand side of the table saw

(fig J).

Attaching the wheels

1. Fit the flat washer

(fig K) followed by the

wheel, flat washer and the

spring washer onto the

axle (fig L). Secure the

wheel onto the axle using

the 13mm hex head screw.

2. Repeat for the opposite side.
3. Position the hubcap over

the wheel (fig M) and

secure from behind using

5 of the ST4.2 x 13mm

Philips head screws with

flat washers (fig N).

4. Repeat for the opposite

side.

Fitting and adjusting the

rear extension table

1. Remove the 2 self-tapping

screws from the end of

each rod on the rear

extension table (25).

2. Fit the rear extension table

into the 2 positioning

holes on the back of the

table saw (fig 0).

3. Replace the 2 self-tapping screws in each rod to prevent

the rear extension table from sliding out.

Attaching the height

adjustment handle

1. Fit the blade height

adjustment handle (20)

onto the blade angle wheel

(21) by first placing the

metal handle tube onto the

handle screw.

2. Place the screw and tube

through the handle, and

then fit the washer onto the thread of the screw.

3. Fit the thread of the screw into the thread on the yellow

insert of the blade angle wheel (21) and tighten the

screw firmly with a 5mm hex key supplied (fig P).

Note. The flat washer should be fitted between the handle

(20) and the yellow insert of the blade angle wheel (21).

Fitting the riving knife

and laser assembly

1. Remove the screw securing

the table insert (13) and

take off the table insert

(fig Q).
