Grandstream Networks, Inc. BT200 User Manual Page 5 of 33
Firmware 1.1.6.44 Last Updated: 12/2008
Installation
W
HAT IS
I
NCLUDED IN THE
P
ACKAGE
The BudgeTone-200 phone package contains:
1. One BudgeTone -200 Main Case
2. One
Handset
3. One Phone Cord
4. One Universal Power Adapter
5. One Ethernet Cable
C
ONNECTING
Y
OUR
P
HONE
Following is a backside picture of BT200, each connection port is labeled with the name in the following
table:

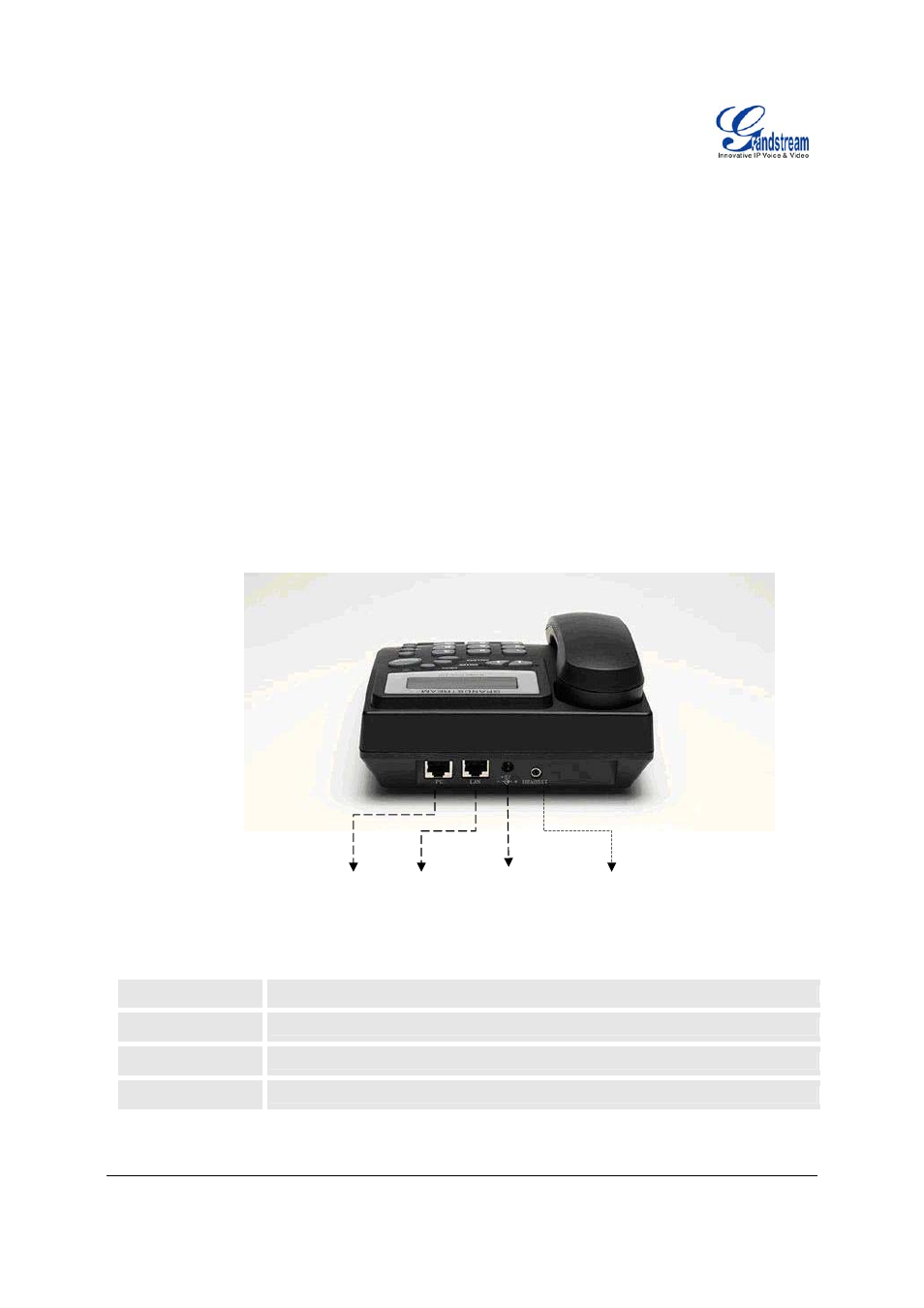

Figure 1: BT200 Back Panel
Table 1: BT200 Connectors
LAN 10/100 Switch LAN port for connecting to Ethernet.
PC 10/100Mbps RJ-45 ports for PC (downlink) connection.
Power Jack 5V DC power port; UL Certified
HEADSET 2.5mm Headset port
1. Connect attached telephone cord to the handset and to the phone device.
PC LAN POWER HEADSET
