Assembly
8

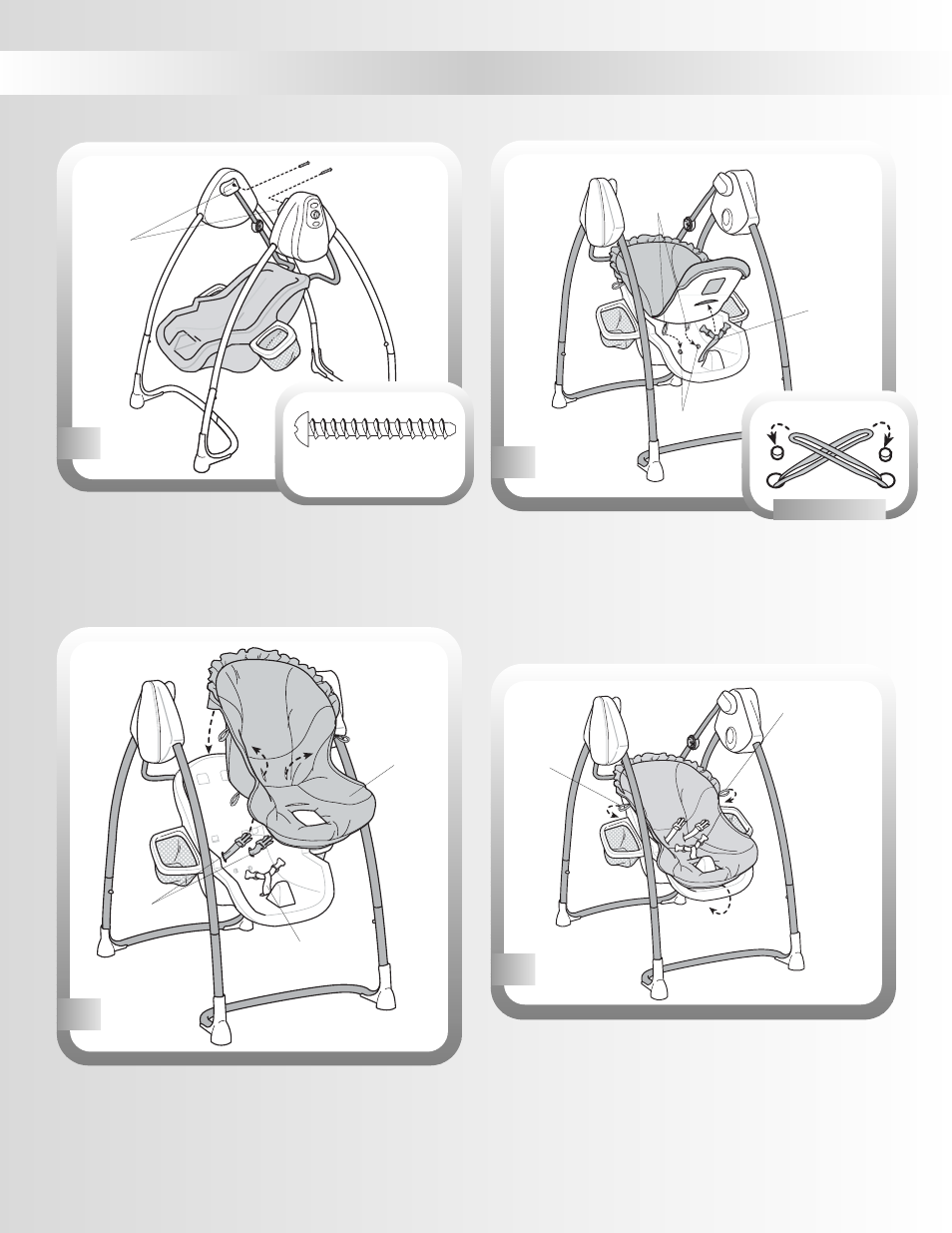

• Fit the pocket on the back of the pad onto the seat back.
• Fit the waist belts through the smaller slots in the pad.
Crotch Belt
Waist Belts
Pad
19
• Lift the bottom of the pad.
• Insert the pad elastic loops through the holes in the
seat bottom.
• Insert the crotch belt through the slot in the pad.
• From under the seat, fit the elastic loops onto the tabs on
the seat bottom.
20
• Insert a #8 x 1 1 /
4
" screw through each frame hub and into
the swing tubes. Tighten the screws with a Phillips screw-
driver. Do not over-tighten.
• Again, push down on the seat to be sure the seat is secured
to both frame hubs.
Frame
Hubs
18
Pad
Elastic
Loops
Holes
Crotch
Belt
Seat Bottom
#8 x 1 1 /
4 ” Screw - 2
Shown Actual Size
• Fit the bottom edge of the pad around the bottom edge
of the seat.
• Hook the elastic loops on each side of the pad to the peg on
the back of the accessory bins.
21
Elastic
Loop
Elastic
Loop
