Assembly
7

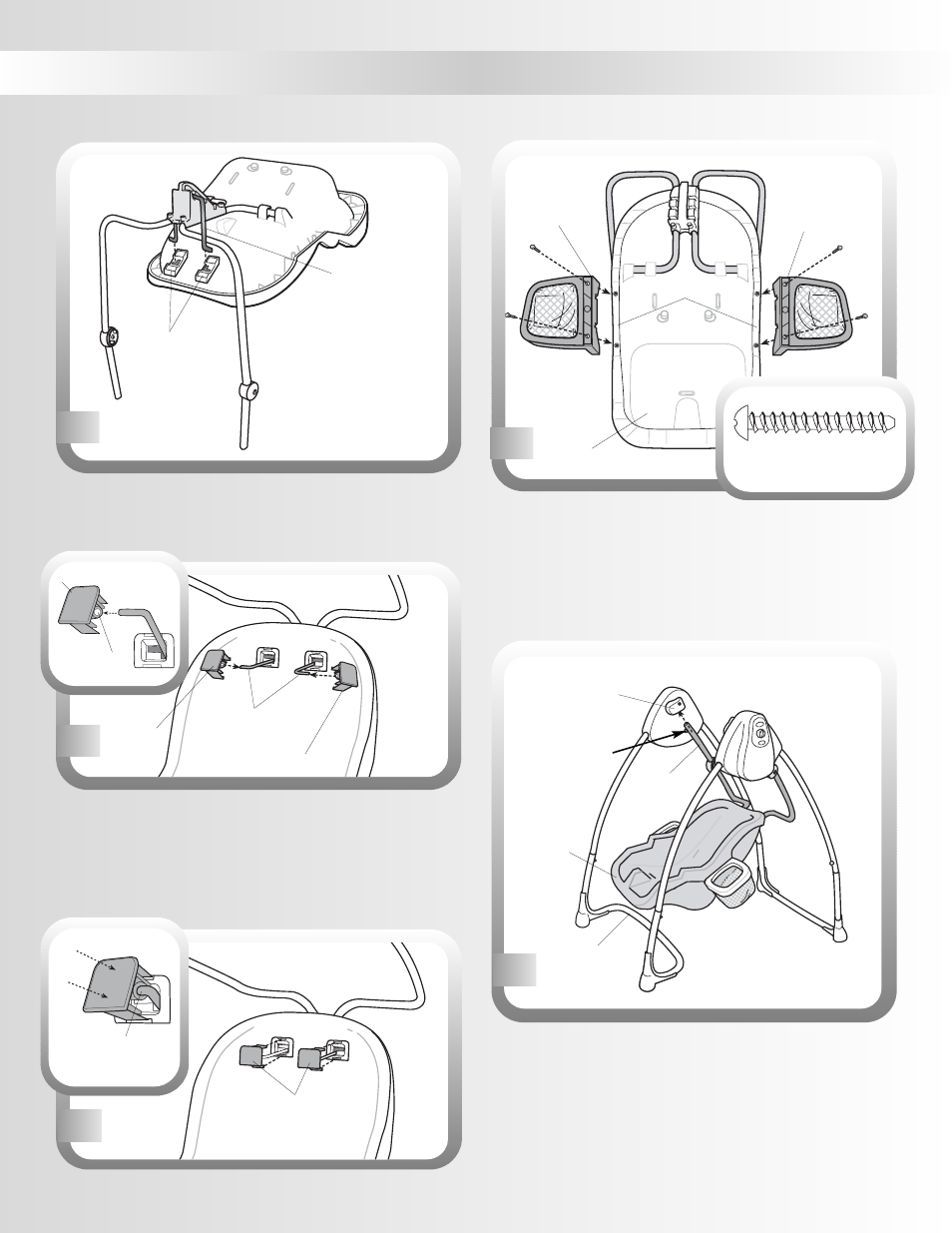

• While holding the seat wire in place, carefully turn the
seat around so that the front faces you.
• Position the seat wire cap so that the rounded edge
is upright.
• Fit each end of the seat wire through the hole in each
seat wire cap.
Ends of
Seat Wire
• Press to “snap” the seat wire caps into place.
• Turn the seat face down.
• Fit an accessory bin into the groove on each side of the
seat, as shown.
• Insert two #8 x 1 1 /
4
" screws through each accessory bin and
into the seat. Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Seat Wire Cap
Seat Wire
Cap
Grooves
Seat
Accessory Bin
Accessory Bin
Seat Wire
Caps
14
15
16
• Lift the seat tubes slightly.
• With the seat wire hanging down, insert the ends of the seat
wire through the slots in the seat, as shown.
Slots
Seat Wire
13
#8 x 1 1 /
4 ” Screw - 4
Shown Actual Size
Seat Wire
Cap Hole
Rounded Edge Up
Seat Wire is
Through Hole in
Seat Wire Cap
“Snap” in Place
• Position the seat assembly so that the front of the seat is
toward the curved front base.
• While pressing the buttons on the swing tubes, insert them
into the frame hubs. Push the swing tubes up until the but-
tons “snap” into the hole in the frame hubs.
• Push down on the seat to be sure the seat is secured in both
frame hubs.
Swing
Tube
Front
of Seat
Curved
Front
Base
Push
Button
Frame Hub
17
