Brief instructions on installing mainboard
A26361-D1961-Z120-1-7419, edition 2 English - 7
Installation
► Equip the mainboard with the processor, heat sink and memory modules before installation if
possible. Further information can be found in "Replacing the processor" chapter.

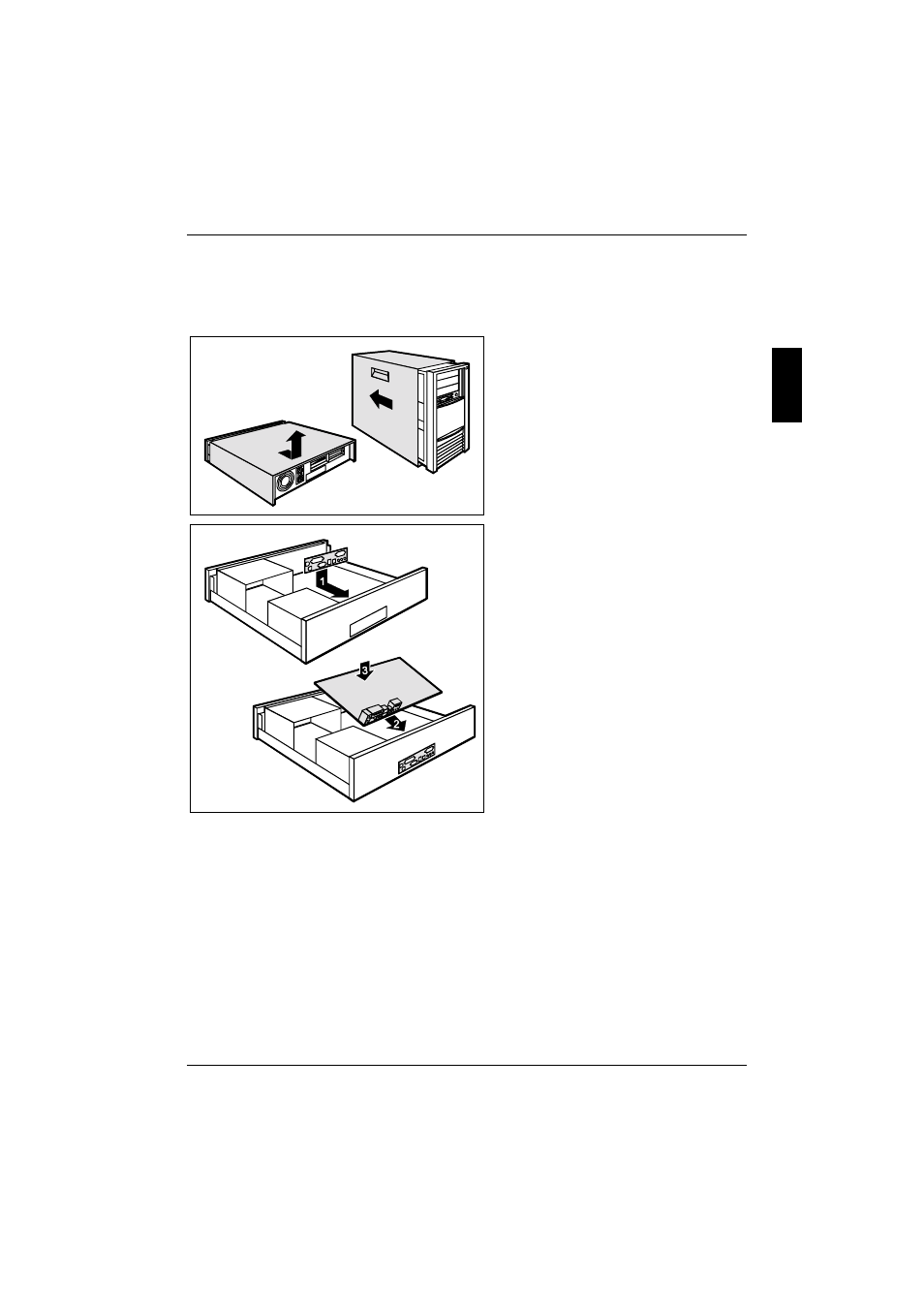

► Open the casing as described in the
operating manual.
► Should no suitable connection field be
provided in the case, then you must
install the connection field (1) provided.
Ensure the plate is aligned properly so that
the connections are suitable for the
mainboard later.
►
Set the mainboard on the edge on
which the connection field is located (2)
and then insert the board in the
case (3).
Make sure that spacers in the housing are
only mounted at points at which there are
mounting holes in the mainboard.
►
Fasten the mainboard with the screws.
► Connect the plugs for the power supply, control panel and drives to the corresponding
connections on the mainboard.
Driver installation
► Install the drivers for the chipset. You may find the driver on the "Drivers & Utilities" CD.
Please refer to chapter "Drivers" for a description of installing drivers.
