Blockage Clearing Cap (A1) & (A2)
1. Close the Blockage Clearing Cap ensur-
ing it is secure.
Suction Tube Assembly
1. Extend the lower suction tube to its full
length. (B1)
2. Turn the lower suction tube anti-clockwise
in the direction of the arrow, until it locks
into position (B2)
IMPORTANT
When the Suction Tube is locked into the
operating position, this is a permanent fix-
ture. The Suction tube cannot be pushed
back to its packaged position.
Debris Outlet Assembly
1. Fit the Debris Outlet to the underside of
the product as illustrated in Fig C, until it
locks into position.
Steady Handle Assembly (D)
1. Depress the two buttons on the sides of
the switch handle.
2. Locate the steady handle over the but-
tons and release the buttons.
3. Adjust the steady handle to the most
comfortable operating position by
depressing the buttons and moving the
handle.
Debris Bag Assembly
1. Slide the Tie Wrap into the top hem of
the Debris bag (E1)
2. Thread the Tie wrap completely round
the hem and locate the two ends of the
Tie wrap together (E2)
Important:- Do not tighten the Tie Wrap
before attaching the Debris Bag to the
Debris Bag Frame. If mistakenly done
so, use a pointed tool to loosen the Tie
Wrap clip.
3. Attach the Debris Bag to the Debris Bag
Frame as illustrated in Fig E3, ensuring that
the Tie Wrap ends are at the opposite end
to the Debris Bag Frame handle.
4. Once the Debris Bag is located onto the
Debris Bag Frame, pull the Tie Wrap
until the Debris Bag is secure (E4). The
excess end of the Tie Wrap can either
be removed or tucked into the top hem.

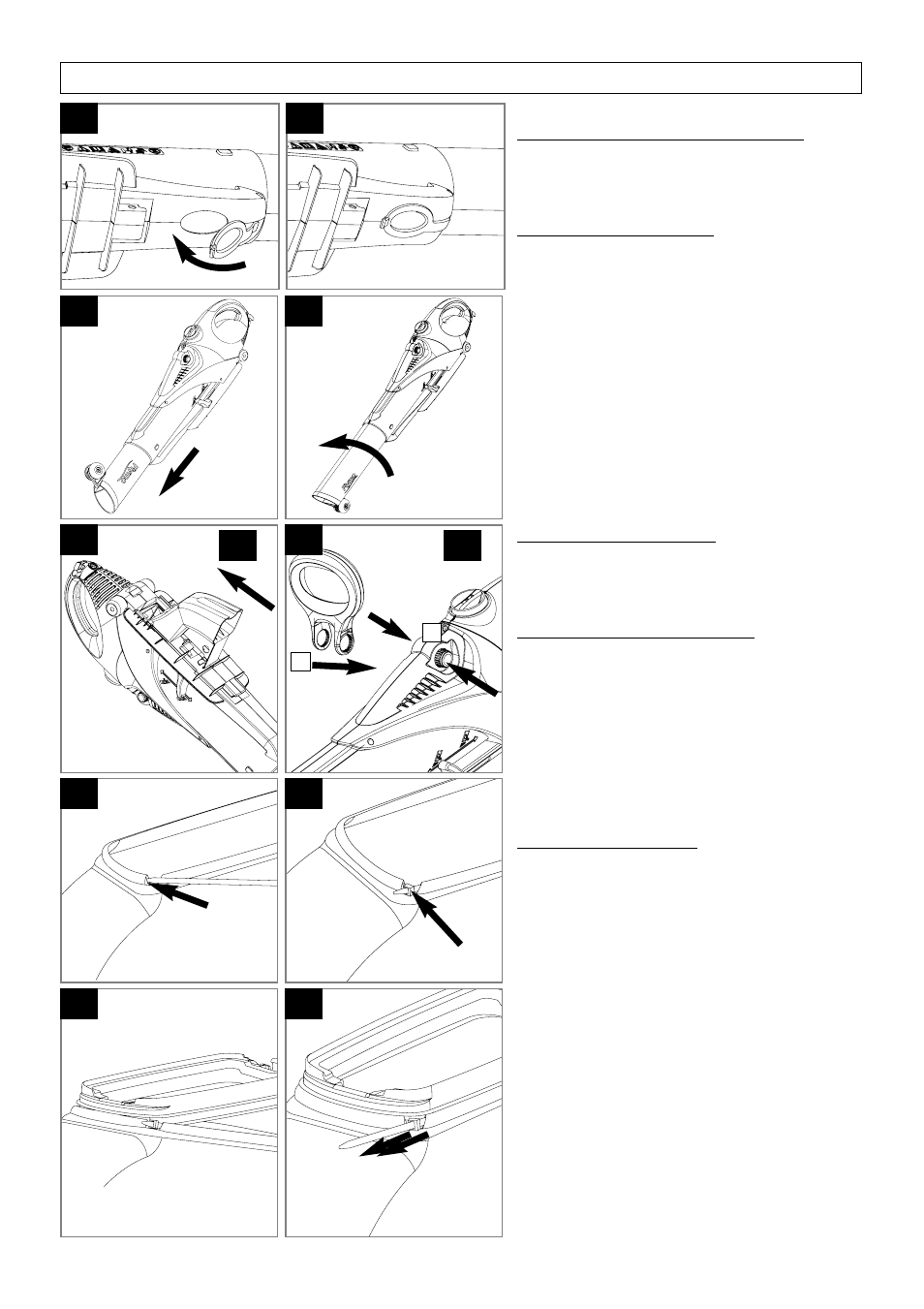

Assembly Instructions
B1 B2
C D
1
2
E1 E2
E3 E4
